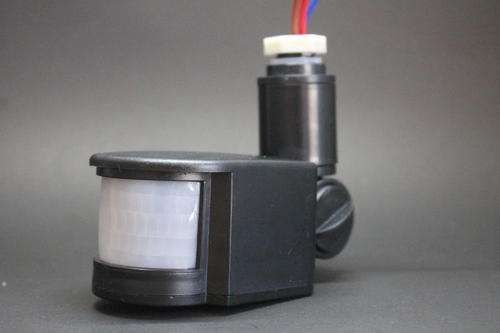

PIR Switch Infrared Motion Sensor 12V 10Amp:
Specifications:
Detection Distance: 5-10Mtr
Detection Range: 140 Degrees
Maximum Load: 100W
Delay Time: 5 seconds - 6 minutes (adjustable)]
Environment Illumination: 2 - 2000 lux (adjustable)
Working Voltage: 12V DC
Installation Height: 1.8 m to 2.5 m
External Dimensions: 60 x 47 x 156 mm
Installation: (Drill open hole diameter 16 mm)
Installation Direction: Knobs facing downward
Knob Regulation:
Time: Adjust the knob to set the "Delay Time" for the light to stay on after sensor is activated
Sensitivity: Adjust the knob to set the PIR sensitivity level of the sensor

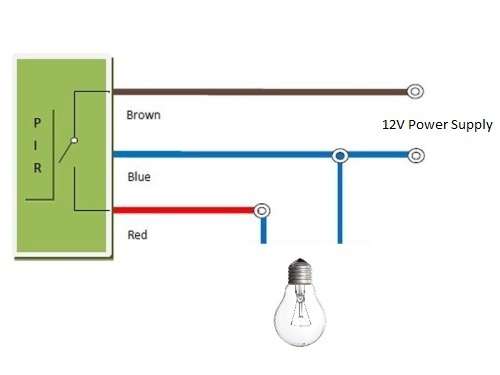

Brown = Positive / Live wire IN, Blue = Negative / Neutral wire IN, Red = Positive / Live wire OUT
