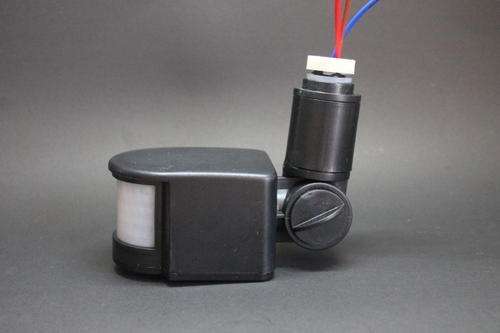

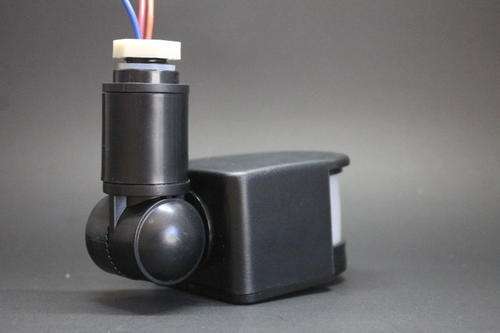

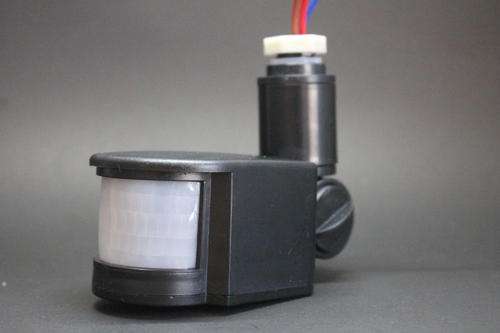

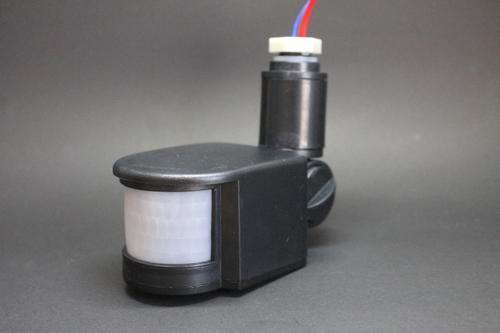

PIR Switch Infrared Motion Sensor 12V 10Amp:
Detection Distance: 5-10Mtr
Detection Range: 140 degrees
Maximum Load: 100W
Delay time: 5 seconds ~ 6 minutes (adjustable)]
Environment illumination: 2 ~ 2000 lux (adjustable)
Working Voltage: 12V DC
Installation height: 1.8 m to 2.5 m
External dimensions: 60 * 47 * 156 mm

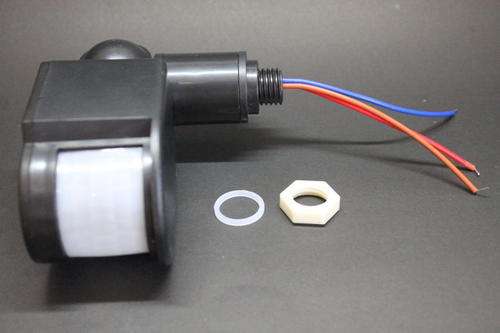

Installation: (Drill open hole diameter 16 mm)
Installation direction: Knobs facing downward

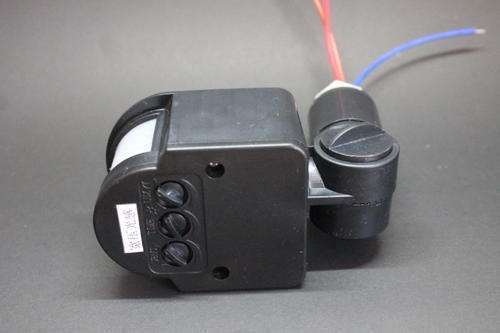

Knob Regulation:
Time: Adjust the knob to set the "Delay Time" for the light to stay on after sensor is activated
Sensitivity: Adjust the knob to set the PIR sensitivity level of the sensor

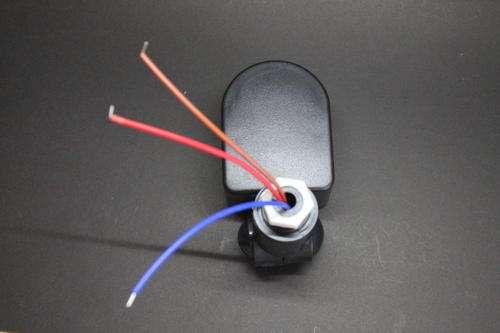

Brown = Positive / Live wire IN,Blue = Negative / Neutral wire IN,Red = Positive / Live wire OUT
