Flood light 12V PIR Switch Infrared Motion Sensor (Black) **LOCAL STOCK**
Sold

Flood light 12V PIR Switch Infrared Motion Sensor (Black) **LOCAL STOCK**

2 were available / new
R125.00
Shipping
Free shipping is available from Diy Select - Cape Town for all orders above R2,000.00, using one of our trusted couriers.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
SEN120
Bob Shop ID
547313790

PIR Switch Infrared Motion Sensor 12V:



Free combined shipping for additional orders placed in our other store "LED SELECT"  https://bidorbuy.co.za/seller/434337



Specifications:

Working Voltage: 12V DC

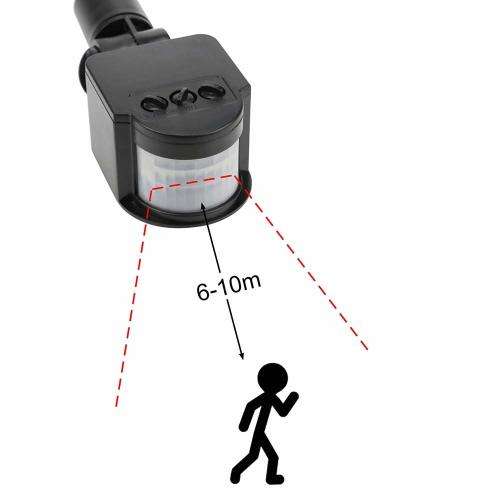

Detection Distance: 5-10Mtr
Detection Range: 140 degrees
Load: 10-50W
Time Range: 5 seconds - 6 minutes (adjustable)
Environment Illumination: 2 - 2000 lux (adjustable)
Installation Height: 1.5 m to 2.5 m

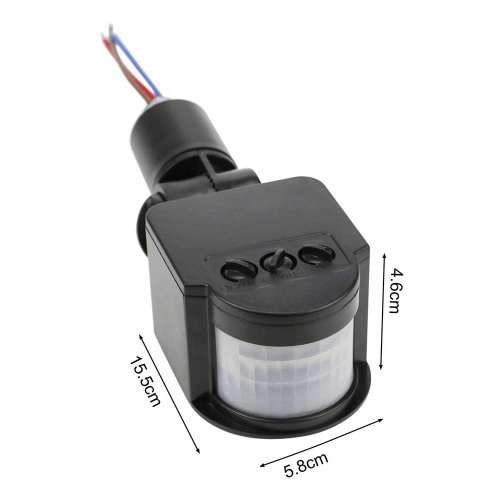

External Dimensions: 60 x 47 x 156 mm
Installation: (Drill open hole diameter 16 mm)
Installation Direction: Knobs facing downward


A PIR (passive infra-red) motion detector is used to sense movement of people, animals, or other objects. Theyre can be utilized in mechanically-activated lighting systems.

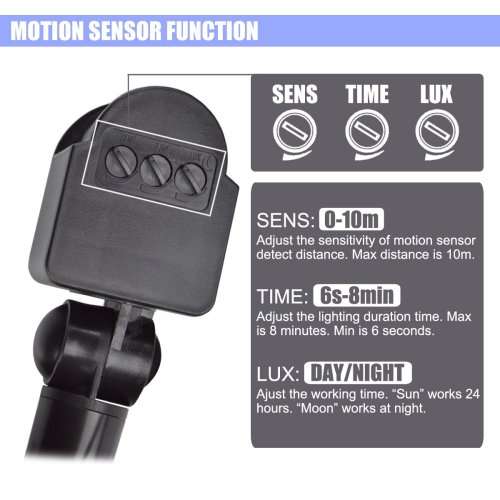

Knob Regulation:

Lux: Adjust the knob to "Sun" to work during the day or to "Moon" to work during the night

Time: Adjust the knob to set the "Time" for the light to stay on after sensor is activated

Sensitivity: Adjust the knob to set the PIR sensitivity level of the sensor




Please see wiring diagram below for a LED Floodlight
