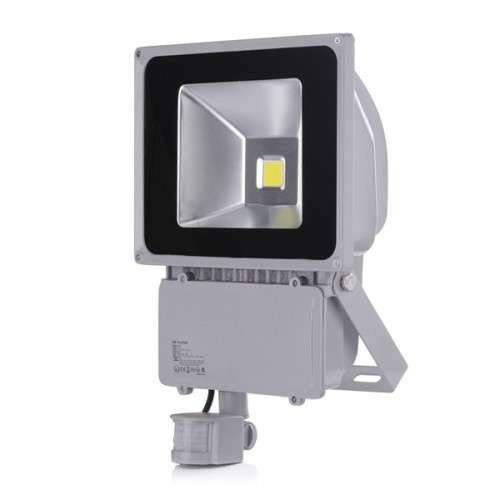

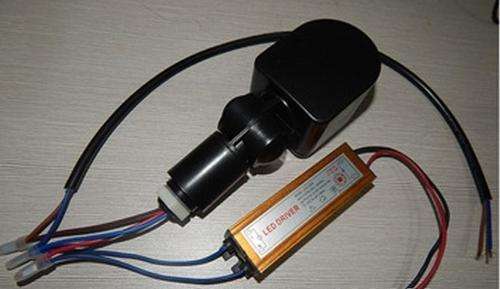

Flood light 220V PIR Switch Infrared Motion Sensor (Black)

PIR Switch Infrared Motion Sensor:

Detection Distance: 8-12Mtr

Detection Range: 180 degrees

Maximum Load: 150W

Delay time: 5 seconds ~ 6 minutes (adjustable)]

Environment illumination: 2 ~ 2000 lux (adjustable)

Working Voltage: 220 - 240V

Installation height: 1.8 m to 2.5 m

External dimensions: 60 * 47 * 156 mm

Installation: (Drill open hole diameter 16 mm)

Installation direction: Knobs facing downward

Knob Regulation:

Lux: Adjust the knob to "Sun" to work during the day or to "Moon" to work during the night

Time: Adjust the knob to set the "Delay Time" for the light to stay on after sensor is activated

Sensitivity: Adjust the knob to set the PIR sensitivity level of the sensor

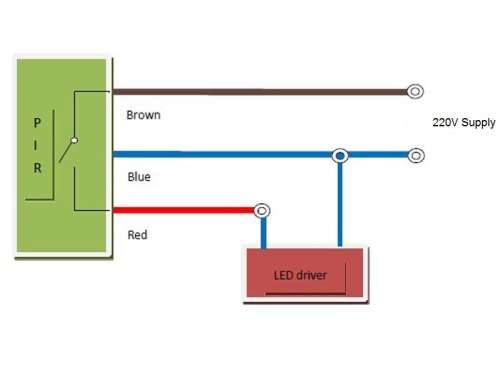

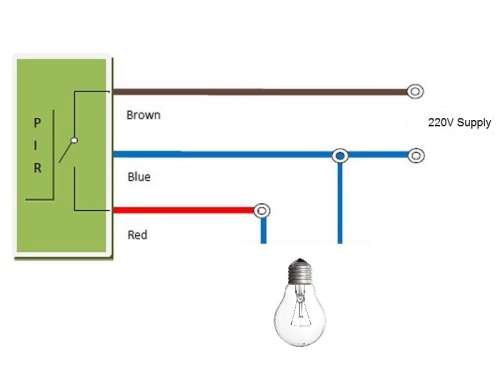

Please see wiring diagram hereunder for a) Led Floodlight or b) Standard 220V Lamp
