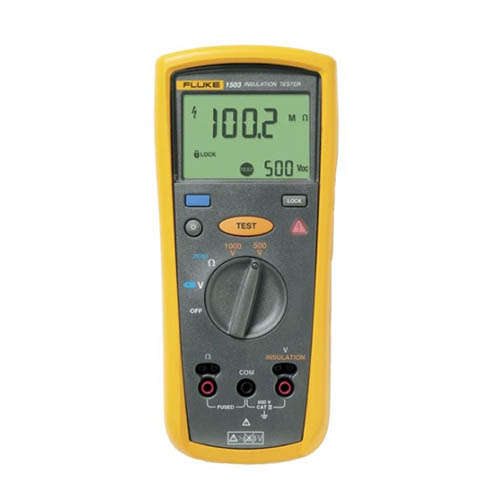

Fluke 1503 Insulation Tester

The Fluke 1503 Insulation Tester is compact, rugged, reliable, and easy to use.

With its multiple test voltages, it is ideal for many troubleshooting, commissioning, and preventative maintenance applications.

Additional features, like the remote probe on this tool save both time and money when performing tests.

Insulation test range0.1 M to 2000 M

Insulation test voltages500 V, 1000 V

Repetitive or hard-to-reach testing is easy with the remote test probe

Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection

Auto-discharge of capacitive voltage for added user protection

AC/DC voltage: 0.1 V to 600 V200 mA

ContinuityResistance: 0.01 to 20.00 kSave battery power with auto power off

Read measurements easily with large, backlit display

CAT IV 600 V overvoltage category rating for added user protection

Remote probe, test leads, probes and alligator clips included with each tester

Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work

Four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests

One year warranty
