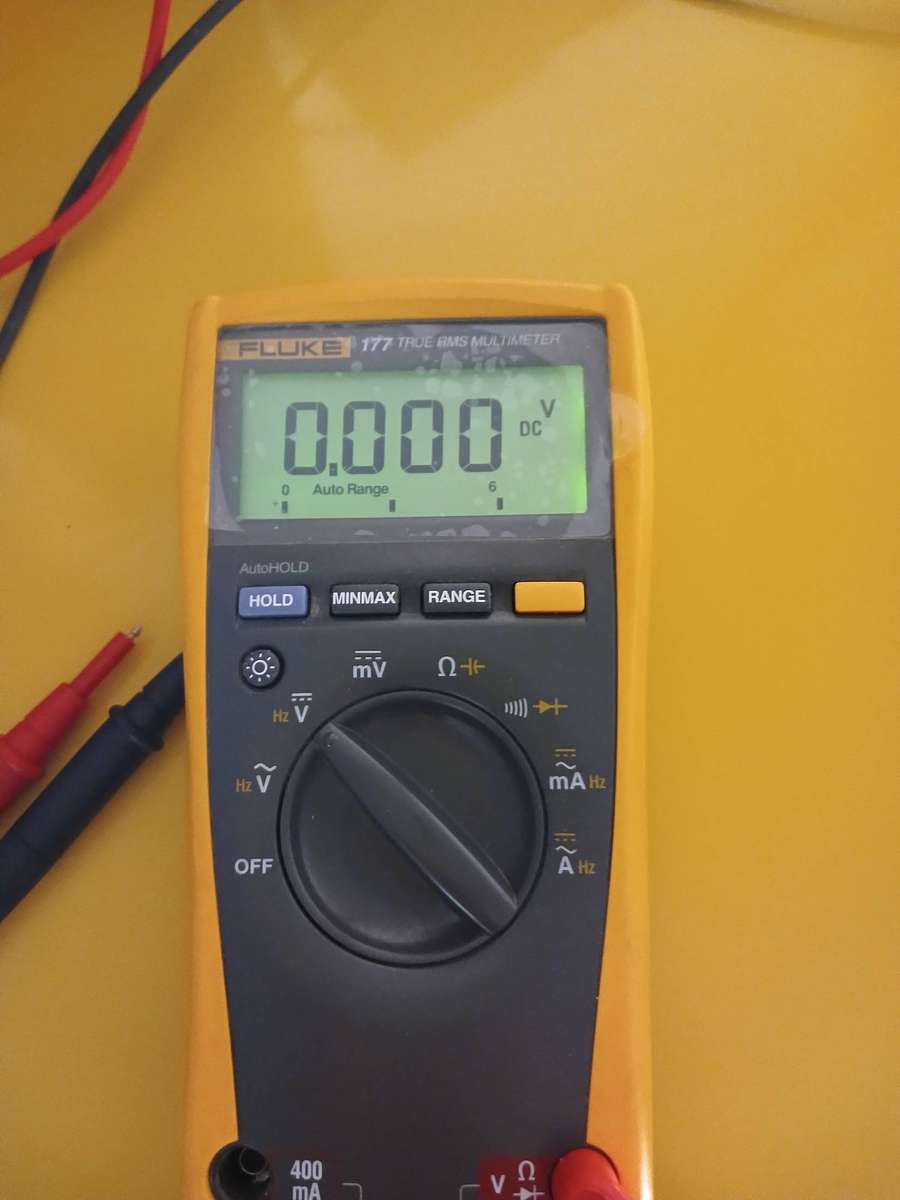

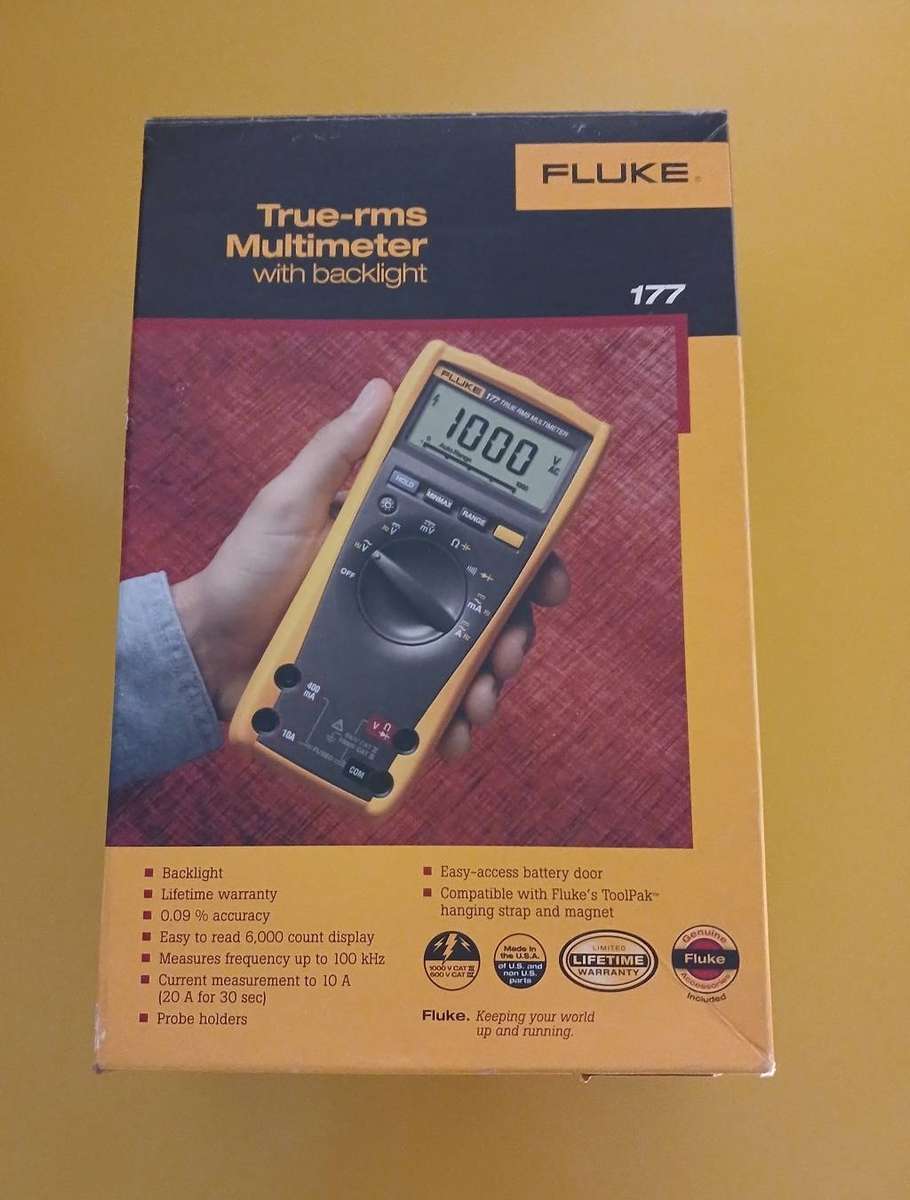

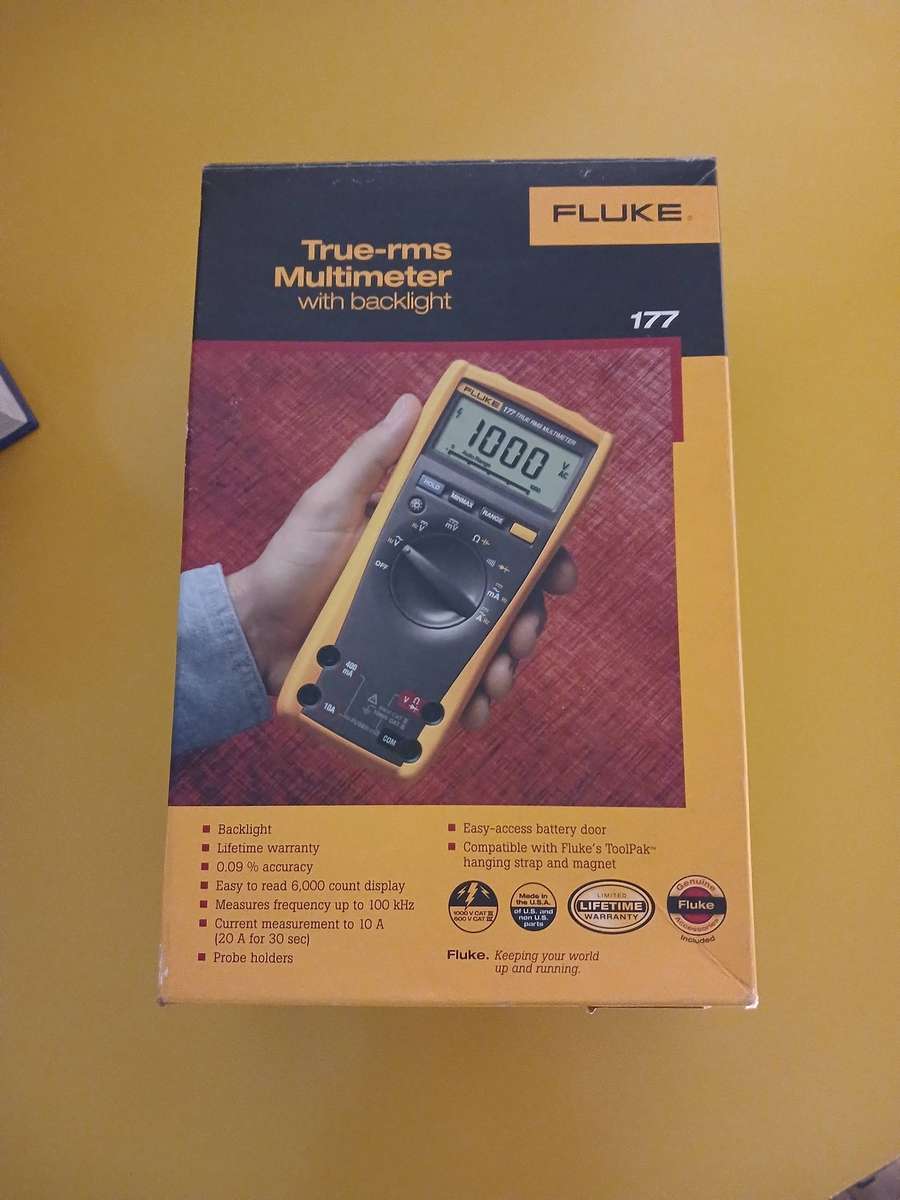

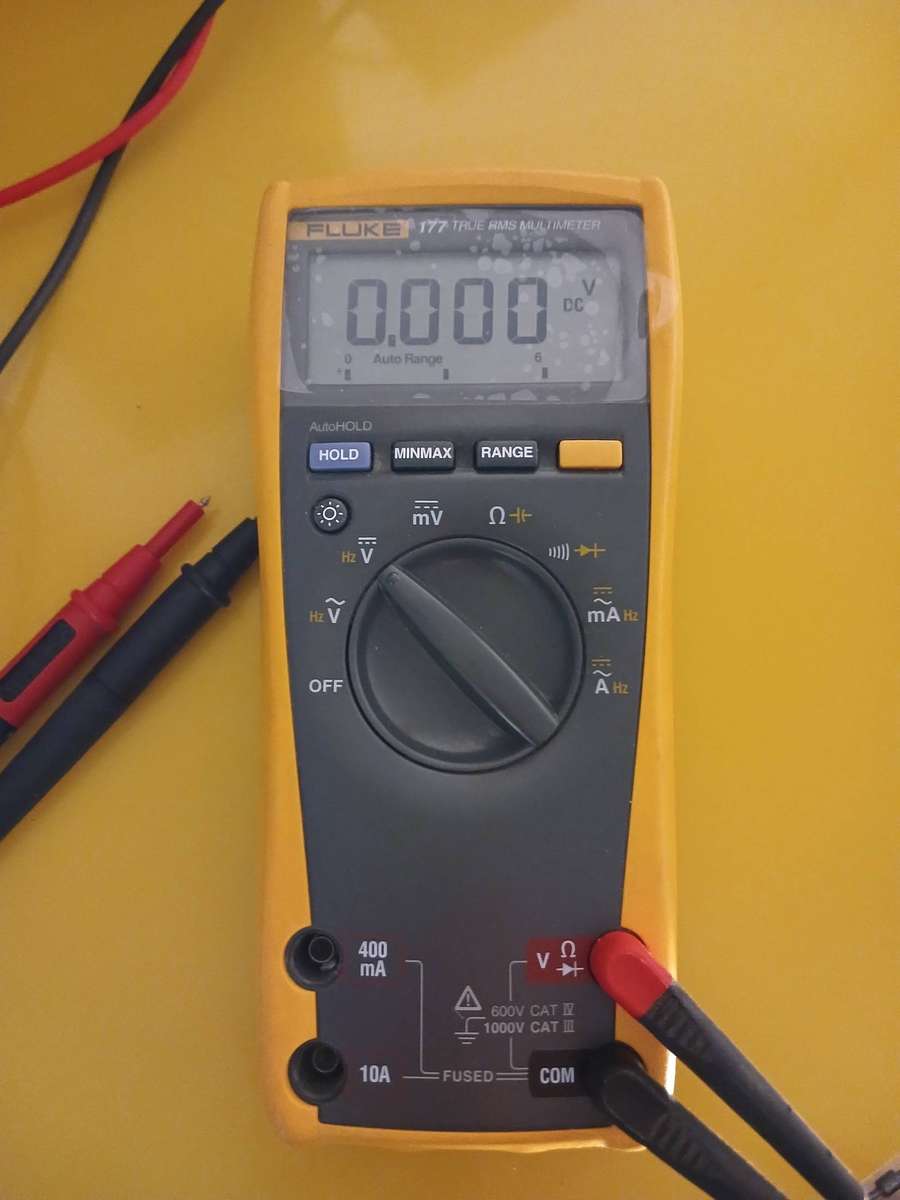

Fluke 177 Digital Multimeter

The Fluke 177 model is part of the versatile 170 series of Digital Multimeters. Suitable for a variety of measurement applications, the 177 is supplied with a TL76 test lead, instruction manual and 9v alkaline batteries. This model also features a display backlight for easier measurement reading.

Fluke 177 Features and Benefits

6000 count LCD with 33 segment bargraph
True rms (a.c.) measurement
EN61010-1 safety standard compliance to Cat IV 600V & Cat III 1000V
Resistance, continuity and diode measurement
Capacitance measurement up to 10000F
Frequency measurement up to 100kHz
Min/Max/Average recording
Display and Auto Hold
Separate battery and fuses access without breaking the calibration seal

Additional Specifications

DC Current Accuracy: ±1 %
DC Current Digits: +3 D
DC Current Lowest Range: 60mA
DC Current Highest Range: 10A
DC Current Lowest Resolution;0.01mA
AC Current Accuracy: ±1.5%
AC Current Digits: +3 D
AC Current Lowest Range: 60mA
AC Current Highest Range: 10 A
AC Current Lowest Resolution: 0.01mA
AC Current Max Frequency: 1kHz
Resistance Accuracy: ±0.9% / ±0.7%
Resistance Digits: +1 D / + 2 D

Typical Applications

Fluke Digital Multimeters are a standard diagnostic tool and an ideal choice for technicians in the electrical/electronic industries. The 177 model measures AC and DC voltage 1000V and True-RMS AC current and voltage plus frequency, capacitance, resistance, continuity and diode measurements.

Supplied with
Fluke 177 Digital Multimeter

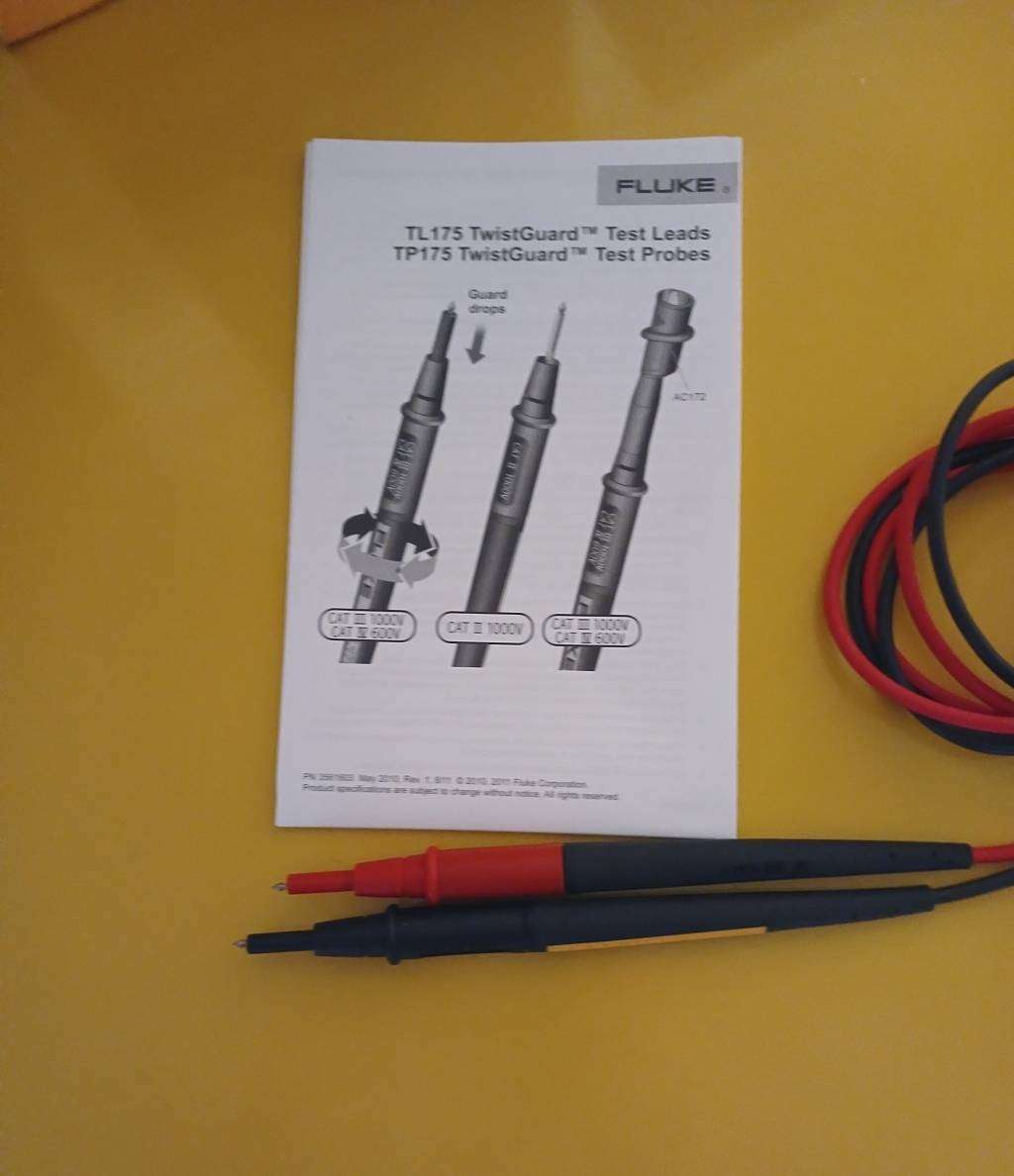

(1 pair) Test leads
9V Battery (Installed)

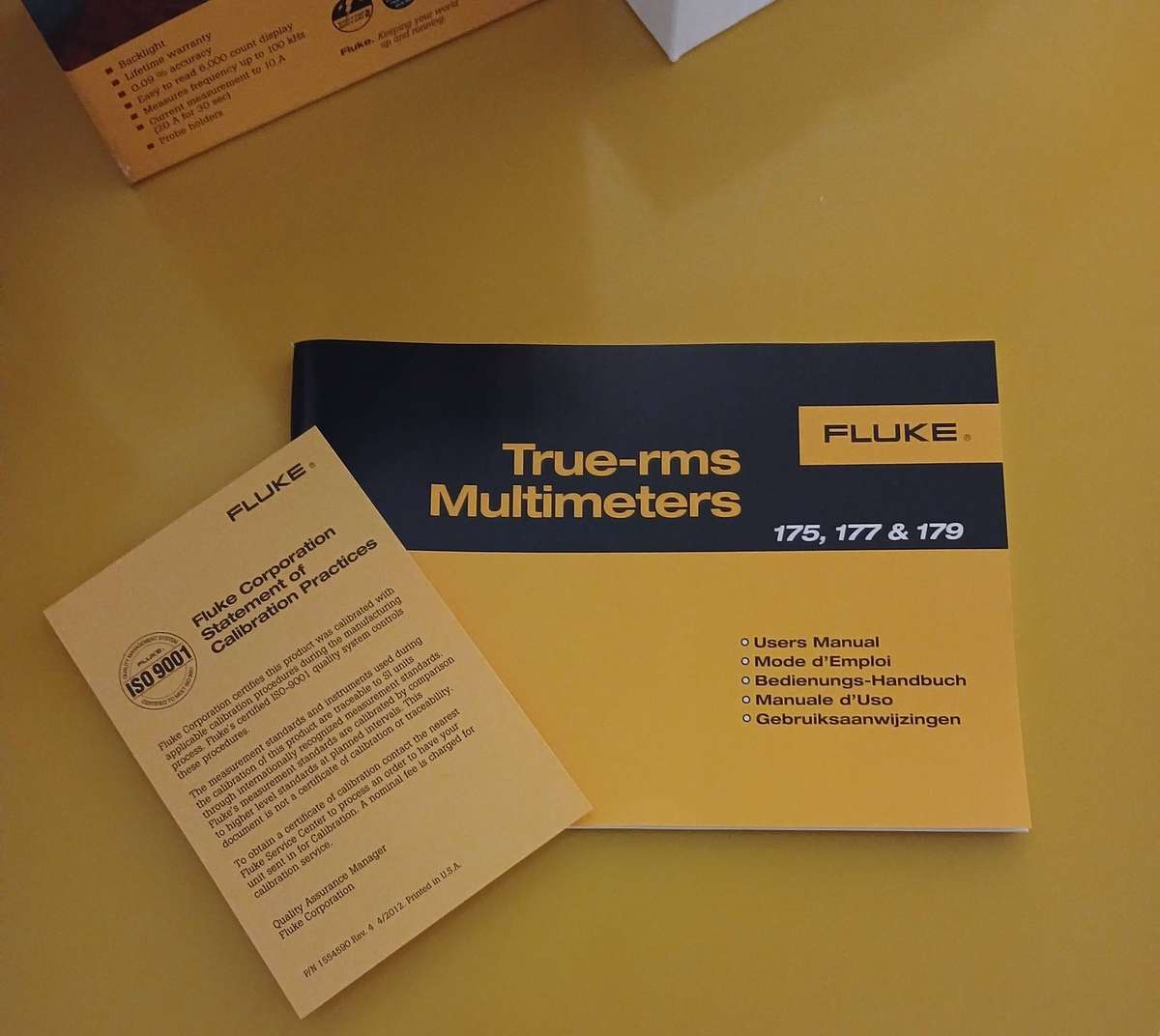

Quick reference guide
FLUKE Multimeter, 6000 Counts, 200h Battery Life - 170 Series - Fluke 177

On the lookout for a multifunctional DMM? Reach for this multimeter from FLUKE. As it's a digital device with True-RMS technology, you can count on it to give you accurate measurements of AC and DC voltages and currents (up to 1000V and 10A) as well as resistance (

Features & Benefits

Offers continuity test function that lets you see quickly if a circuit's open or closed
Comes ready to go with TL75 test leads (4mm lantern clips), 9V battery and user manual
Long battery life of 200h
6000 count meter displays high values
Backlight helps you read values in dark conditions

Applications

Research and development labs
Electrical installation
DIY jobs
Battery testing

What does this multimeter's auto-manual ranging mean?

This DMM's versatile auto-manual ranging gives you the option of setting a measurement range yourself or letting the instrument find it automatically.
