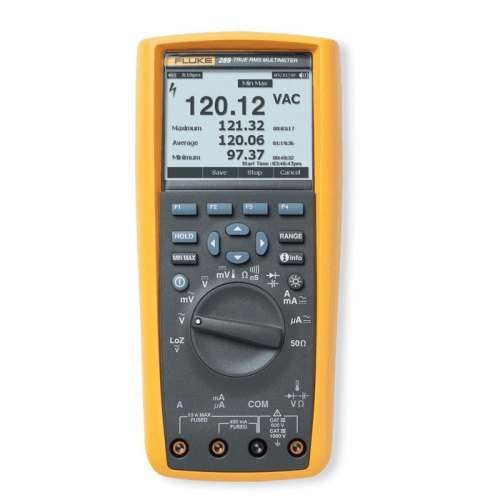

Fluke 289

Fluke 289

Features

• Share what you see with your team in an instant with ShareLive™ video call (requires Fluke Connect mobile app and ir3000 FC wireless connector)

• TrendCapture graphically displays logged data session to quickly determine whether anomalies may have occurred.

• Zoom on trend provides unprecedented ability to view and analyse TrendCapture data; zoom in up to 14 times

• Selectable ac filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy

• Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a new event

• Large 50,000 count, 320 x 240 pixel (¼ VGA) display with white backlight

• Logging function with expanded memory for unattended monitoring of signals over time. With the built-in function for trending (TrendCapture) logged readings can be graphically displayed without the use of a PC. Store up to 15,000 recorded events

• Save multiple logging sessions before PC download is necessary

• Two terminal 50 ohm range with 1 mohm resolution, 10 mA source current. Useful for measuring and comparing differences in motor winding resistance or contact resistance

• Low Pass filter for accurate voltage and frequency measurements at the same time on adjustable speed motor drives and other electrically noisy equipment

• LoZ Volts. Low impedance voltage function for eliminating ghost voltages. Also recommended when testing for absence or presence of live power

• On-board help screens for measurement functions. Do you need information about a specific function? Simply select the function and press the "i" button

• Real time clock for automatic time stamping of saved readings

• Relative mode to remove test lead resistance from low ohms or capacitance measurements

• True RMS values for AC voltages and currents for accurate measurements on non-linear signals

• Measure up to 10 A (20 A for 30 seconds)

• 100 mF capacitance range

• Peak capture to record transients as fast as 250 ¿s

• Premium test leads and alligator clips included

• Amp jack plugs included

• Easy to read and set up thanks to the optional magnet holder - your hands remain free for other tasks

• Optional FlukeView forms software enables you to document, store and analyse individual readings or a series of measurements, then convert them into professional-looking documents

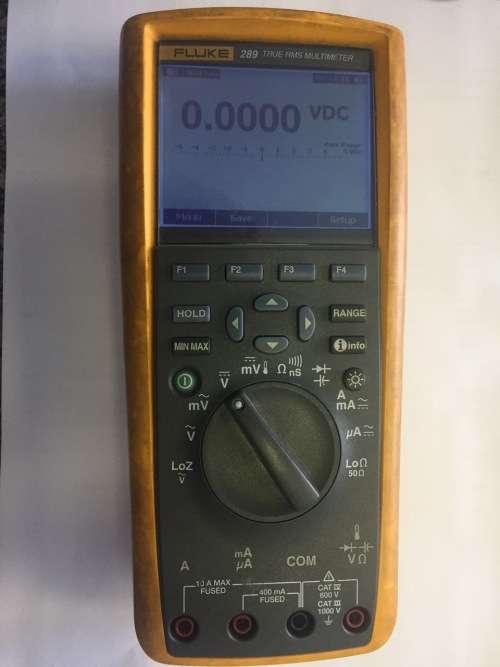

Please note the item is Secondhand
