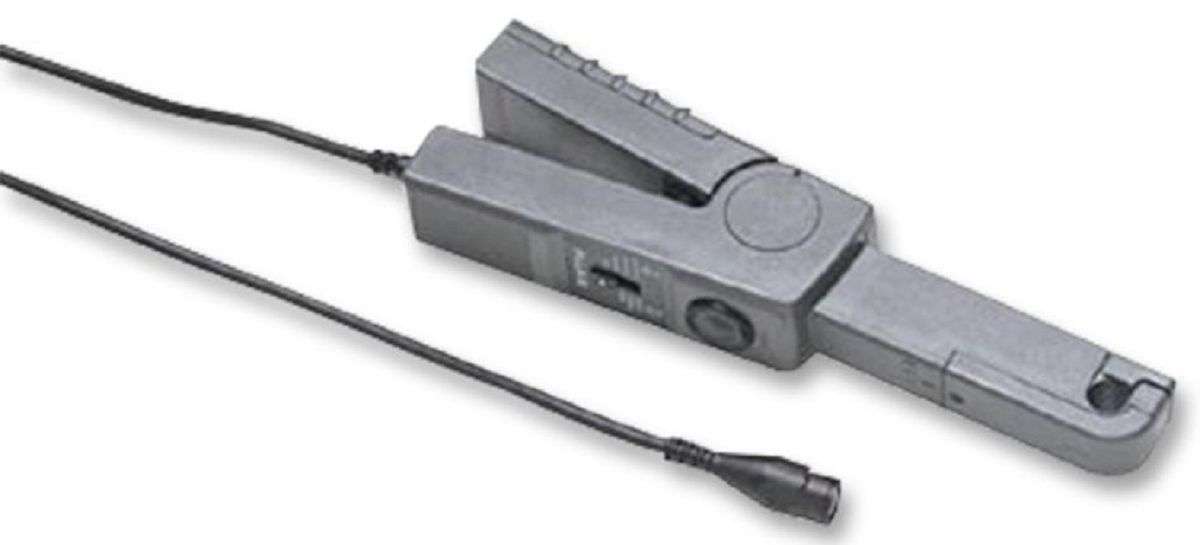

Fluke 80I-110S Current Probe

Product Information:Meter Side Connector: BNC PlugProbe Side Connector: Current ClampCurrent Range Max: 100ACurrent Range Min: 50mAFor Use With: Fluke Scope Meter Test Tool, Power Harmonics Analyzers,Oscilloscopes, MultimetersProduct OverviewThe FLUKE 80I-110S is an AC/DC Current Probe designed to provide with safe, highaccuracy measurements for a wide range of applications. The specially designedbuilt-in safety features such as the 600Vrms rating at the input jaws, outputcable and BNC connector enhance work safety in power distribution systems. It isshielded for high noise immunity, to prevent unwanted noise when troubleshootingaround noise generating devices. It accurately reproduces current waveforms asthey occur. Connect the clamp to a Fluke ScopeMeter test tool or other waveformrecording device like a Fluke power harmonics analyser, to clearly see distortedwaveforms that result from non-linear loads. Current clamps, not specificallydesigned for oscilloscopes, may add distortion to the actual signal present inthe system under test. The wide measurement range from 50mA to 100A with a highfidelity millivolt output gives full advantage of the high resolutionoscilloscope displays.Zero error adjustment1Hz to 20kHz Bandwidth1.6m Output cable length9V/55hrs Battery life
