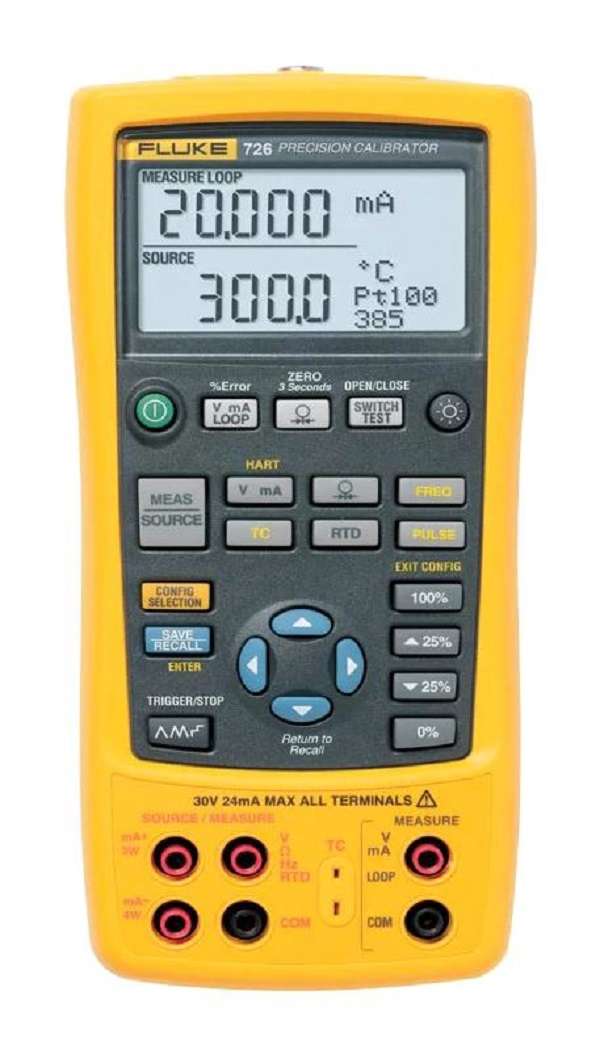

Features:- Calibration Type: Current, Frequency, Resistance, RTD, Thermocouple, Voltage- External Height: 200mm- External Width: 96mm- External Depth: 47mm- Accuracy: 0.01%- Weight: 650g- Operating Temperature Min: -10 Degrees C- Operating Temperature Max: 55 Degrees CProduct OverviewPrecision multifunction process calibratorMore precise measurement and calibration source performance, accuracies of 0.01%Transmitter error% calculation, interpret calibration results without acalculatorMemory storage for up to 8 calibration resultsFrequency totalizer and frequency pulse train source mode for enhanced flowmetertestingHART mode inserts 250-ohm resistor in mA measure, the source for compatibilitywith HART instrumentationThe integrated pressure switch test allows you to capture the set, reset anddeadband of a switchMeasure volts, mA, RTDs, thermocouples, frequency, and resistance to testsensors and transmittersSource/simulate volts, mA, thermocouples, RTDs, frequency, and pressure tocalibrate transmittersSource mA with simultaneous pressure measurement to conduct valve and I/P testsContentsPrecision multifunction process calibrator, TL75 test leads, AC72 test clips,One pair of stackable test leads, Product overview manual (print) and User'smanual (CD-ROM) in14 languages.
