Flycolor Raptor TR20 F7 + 4in1 45A ESC Stack

6 available / new
R3,623.75
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
FLC017
Bob Shop ID
616818327

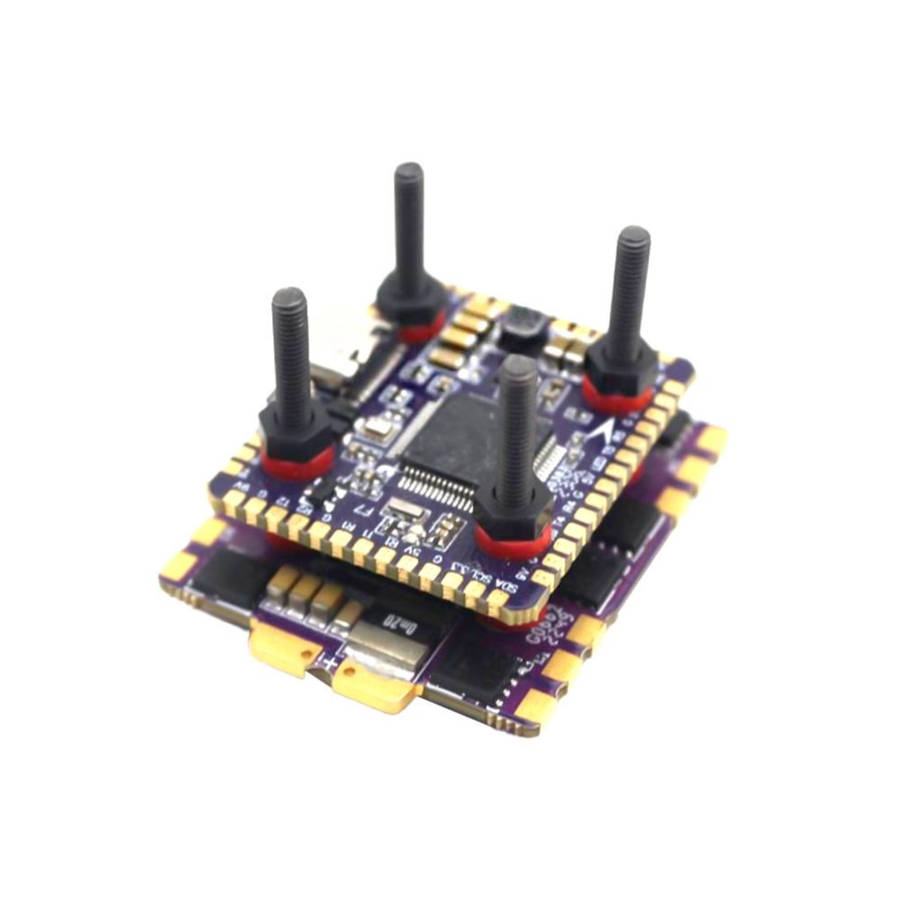

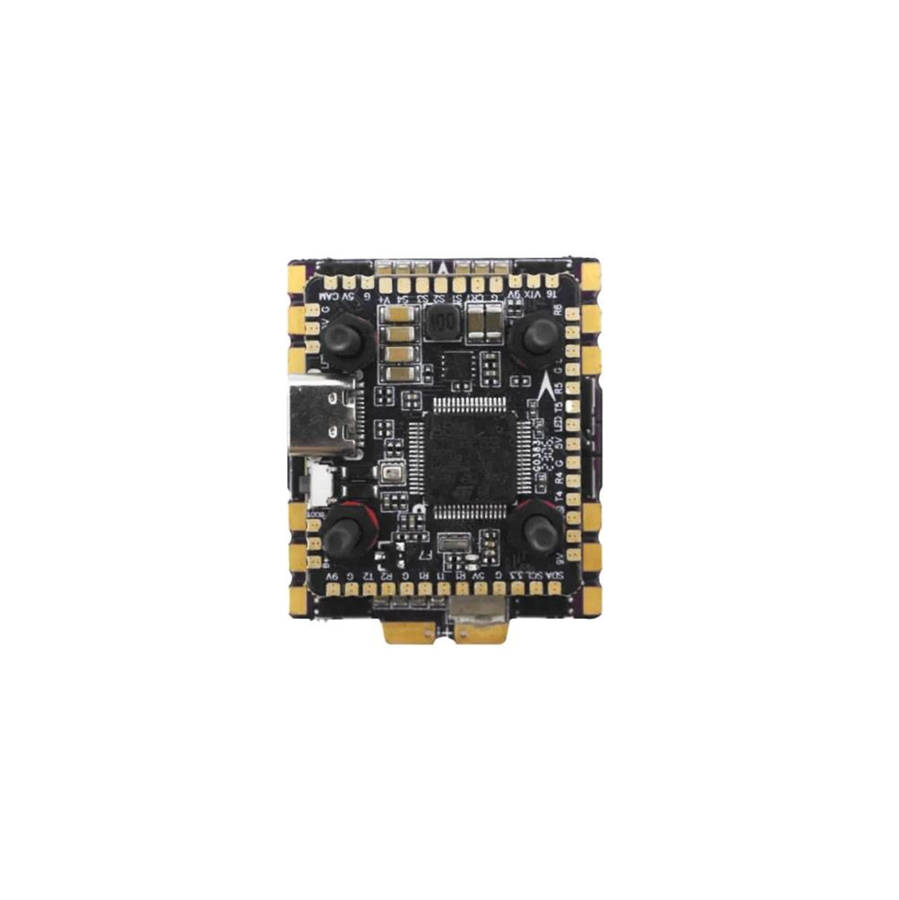

The Flycolor Raptor TR20 Mini Stack features an F722 Flight Controller, equipped with dual VTX and dual LED pads, offering a convenient selection nearby for enhanced customization. With a voltage output range of 3.3V/0.1A, 5V/3A, and 9V/1.5A, this stack ensures stable power distribution. The MPU-6500 SPI gyro and STM32F722 MCU provide precise control, while the 45A ESC, with configurator support via BLHeliSuite32, INAV firmware compatibility, and a 20x20mm mounting pattern, delivers optimal performance for your FPV drone. Compact at 44x36mm and lightweight at 23g, the Raptor TR20 is designed for efficiency, supporting LiPo batteries from 3-6S and making it an ideal choice for your FPV drone and cinematography endeavors.

Features

  • Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling
  • The code supports regular 1-2ms pulse width input, as well as Oneshot125, Oneshot42, and *Multishot
  • MOSFET with high performance and low Rds, not afraid of large current, more suitable for rapid flight
  • Miniaturized and lightweight design, better routing, and component layout
  • Configurator for ESC Parameter setting and upgrading: BLHeliSuite32
  • MCU STM32G0, ARM 32-bit Cortex MCU, frequency up to 64 MHz
  • All Dshot and Proshot signals are supported
  • 20x20mm, M3 mounting pattern
  • PWM frequency up to 128K
  • Flycolor_Raptor_5 firmware

Specifications

F722 FLIGHT CONTROLLER

  • Dual VTX and dual LED pads for convenient selection nearby.
  • Voltage output: 3.3V/0.1A, 5V/3A , 9V/1.5A
  • Gyro: MPU-6500 SPI
  • FC BEC: 3.3V5V9V
  • MCU: STM32F722
  • Const Curr.: 60A

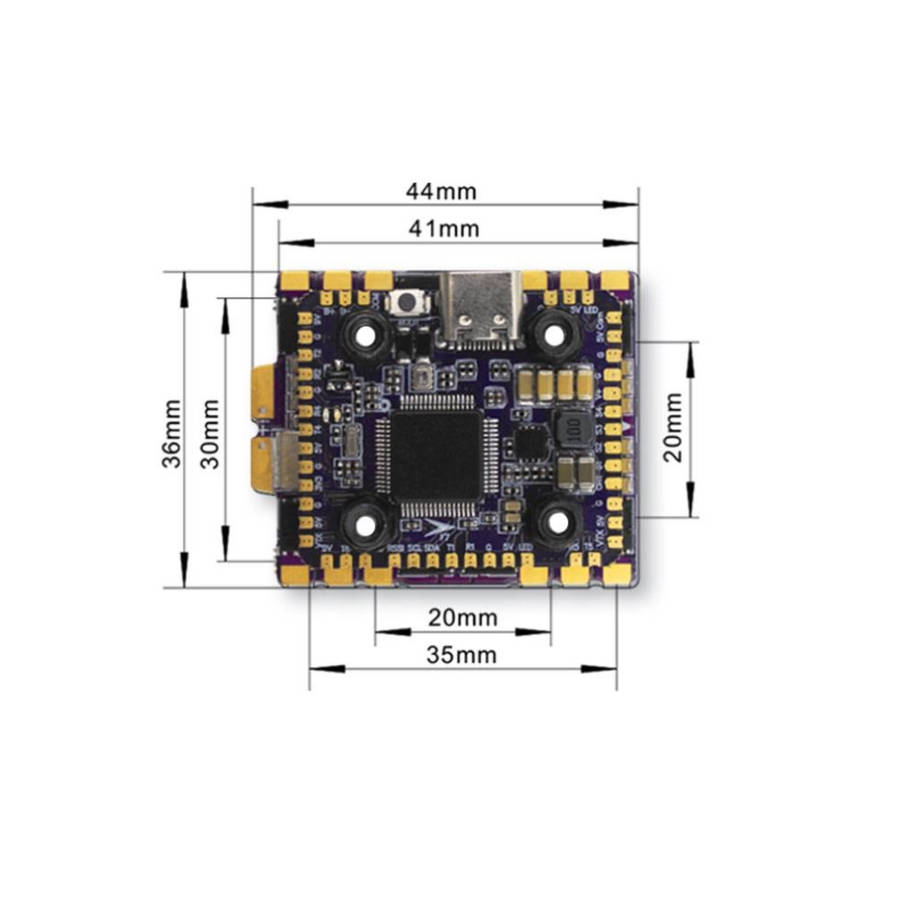

  • Size(mm): 44*36
  • Burst Curr.: 70A
  • USB: Type C
  • Weight: 23G
  • Lipo: 3-6S

45A ESC

  • Configurator for ESC Parameter setting and upgrading: BLHeliSuite32
  • INAV firmware is supported: FLYCOLORF7MINI
  • ARM: 32-bit Cortex, frequency up to 64 MHz
  • ESC firmware: Flycolor_Raptor_5
  • Mounting pattern: 20x20mm, M3
  • PWM frequency: up to 128K
  • MCU: STM32G0

Includes

  • 1x Flycolor Raptor TR20 Mini Stack - F722 FC + 45A ESC - 20x20
  • 1x 3mm Mounting Accessories Set
  • 1x ESC /FC connecting wire
  • 1x Electrolytic capacitor
  • 1x Power wire(XT60)
