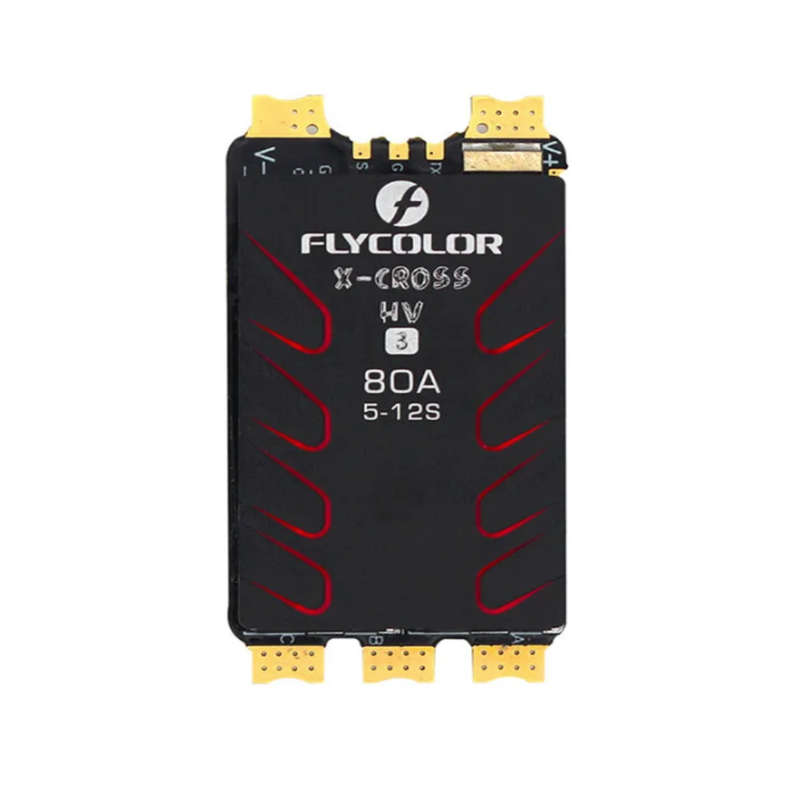

Flycolor X-Cross HV3 5-12S BLHeli32 80A ESC

The X-Cross HV3 80A 5-12S ESC by Flycolor features quality MOSFETs, BLHeli_32 firmware, an ARM 32-bit Cortex MCU, Telemetry, and more!

Features

• ARM 32-bit Cortex MCU, frequency up to 64MHz
• International famous brand MOSFET with high performance and low ESR, not afraid of large current
• BL Heli_32 firmware, u0 to 12S Lipo, suitable for X Class frame drone
• Supports regular 1-2ms pulse width input, as well as Oneshot125, Oneshot42, and Multishot.
• The input signal is automatically detected by the ESC upon power-up
• Small size, lightweight, suitable for the drone with narrow arms
• Damped light does regenerative braking, and inherently also does active freewheeling
• The silicone twisted-pair of the throttle signal cable effectively reduces the crosstalk caused by signal transmission and makes flight more stable
• Aluminum heatsink effectively slows down the temperature rise

Specifications

• Con. Current: 80A
• Burst Current: 100A
• Lipo: 5-12S
• Weight: 25.5g
• Size: 55×28×10mm

Includes

• 1 x Flycolor X-Cross HV3 80A 5-12S BLHeli32 ESC
