Flymentor 3D helicopter stabilisation System
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information
IN STOCK !!!

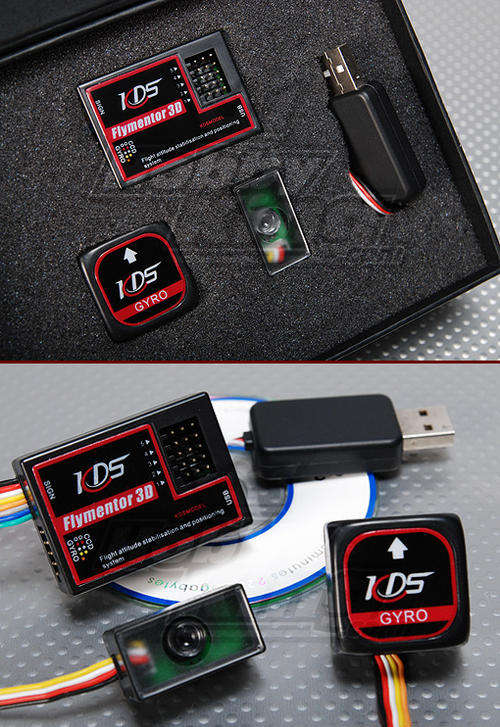

This unit comes with 5 items; the main unit, gyro, CCD sensor, CD software and usb data cable (manual is in PDF format in the CD).
Control all movement, including attitude stabilization, speed control, position locking.
CCO sensor to capture picture of ground, comparing pictures to avoid drifting.
Switch working mode (horizontal mode and position mode) through AUX channel.
Integrating head locking gyro and swash plate mixer.
Control sensitivity and mode of internal gyro through GEAR channel.
Support swash plate 3S 120°, 3S 140°, 4S 90°, 4S 90°+45°
Keep balance in inverted flight.
Configured by computer through USB.
If you are using FM/PPM remote control device, when helicopter is out of control, the Flymentor 30 will set aileron, elevator, rudder to neutral, and keep pitch in the final signal position, and switch to positioning mode automatically, the sensitivity is 70%.
Specification:
Voltage: 4.8-6.0V
Current: 55mA (under 5V)
Weight:37G
Temperature: OC~ +40C
Under the stabilisation mode and positioning mode, maximum rotate speed allowed: J Aileron and Elevator: ,;2000 Â / s
J Tail turning (if using external gyro): ,;3600 Â / s
