Introduction:

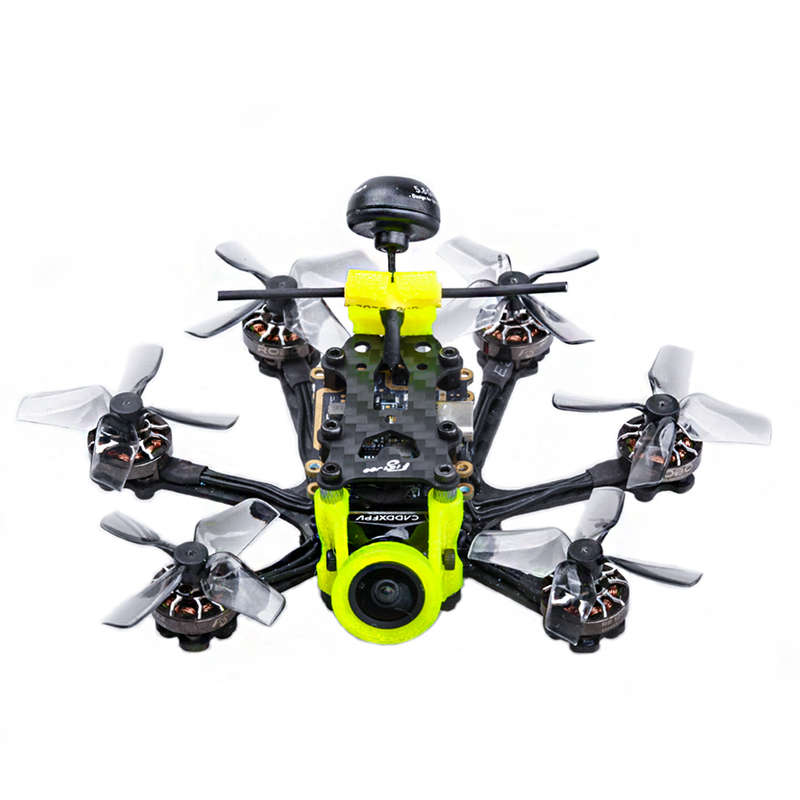

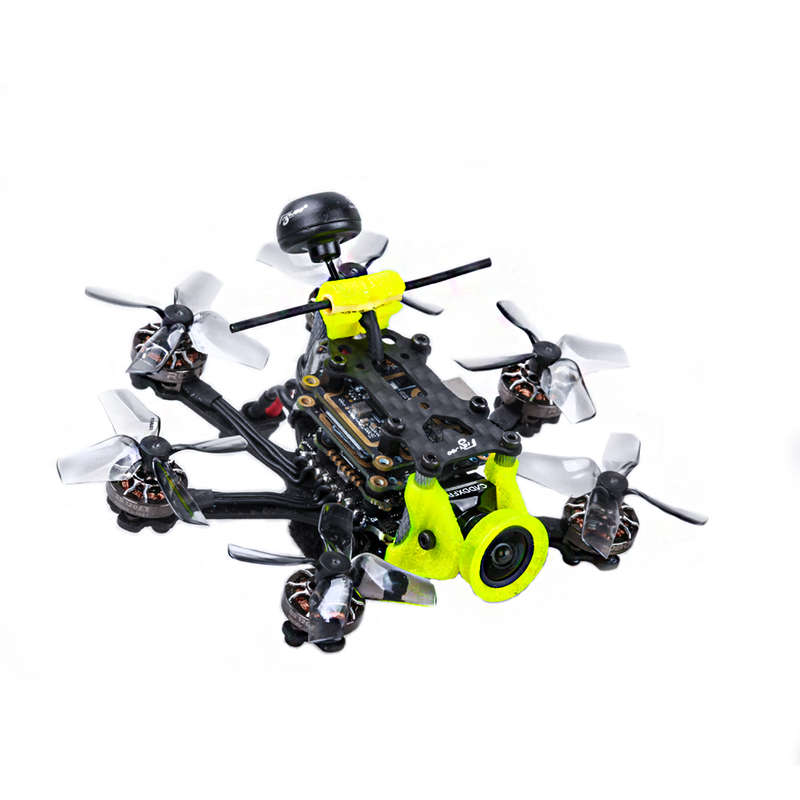

In an effort to push the boundaries of carry the camera on the smallest platform, Flywoo designed the smallest hexacopter possible in their history.Firefly Hex nano , a nano- sized fpv drone designed to carry Insta 360go ???SMO 4K camera for some action flying.Weighing in at just 57.9g , the Firefly hex nano is small , flexible, stable , but is full of power and offers unmatched control .? Pilots can quietly enjoy the fun of shooting a video without jelly.The Hex nao is equipped with GOKU HEX 13A STACK and 6pcs ROBO 1202.5 5500KV motors, to bring the Firefly a quiet, stable, flexible and long flight time characteristics. Perfect for the indoor and outdoor recording every beautiful flying moment!
Description:
Brand: Flywoo
Item Name: Firefly hex nano ( without GPS Version)
Item Name:?90mm GOKU F4 13A ESC 4S 1.6 Inch Hexacopter
Wheelbase: 90mm
Camera Degree: 15?ﾣ-90?ﾣ

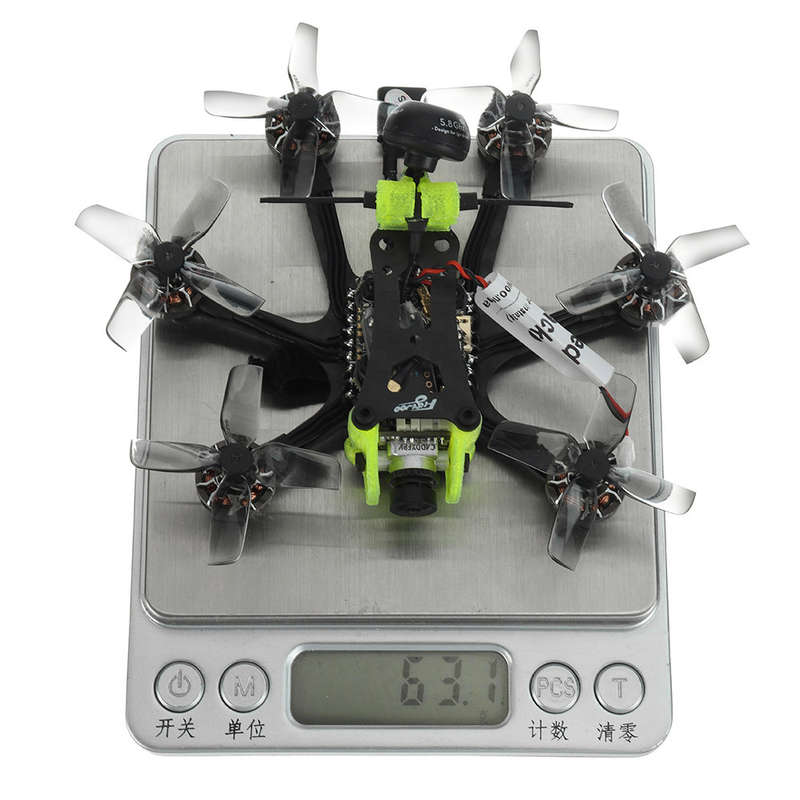

Weight: 57.9g (without battery)
| GOKU Hex F4 FC & 13A ESC Stack | SIZE:?22x23mm
Hole:?16x16mm?(M3) Input?Voltage:?2-4S
MCU:?STM32F411
UARTS:?U1/U2
Soft?UART:?SU1/SU2
I2C:?SCL/SDA
GYRO:?MPU6000
LED:4*WS2812
FLASH:?8M
BEC:?5V?2A
BS13A?BLheli_S?2-4S?6in1
- Support?Oneshot42/125,?Multishot, DShot150/300/600? ?
|

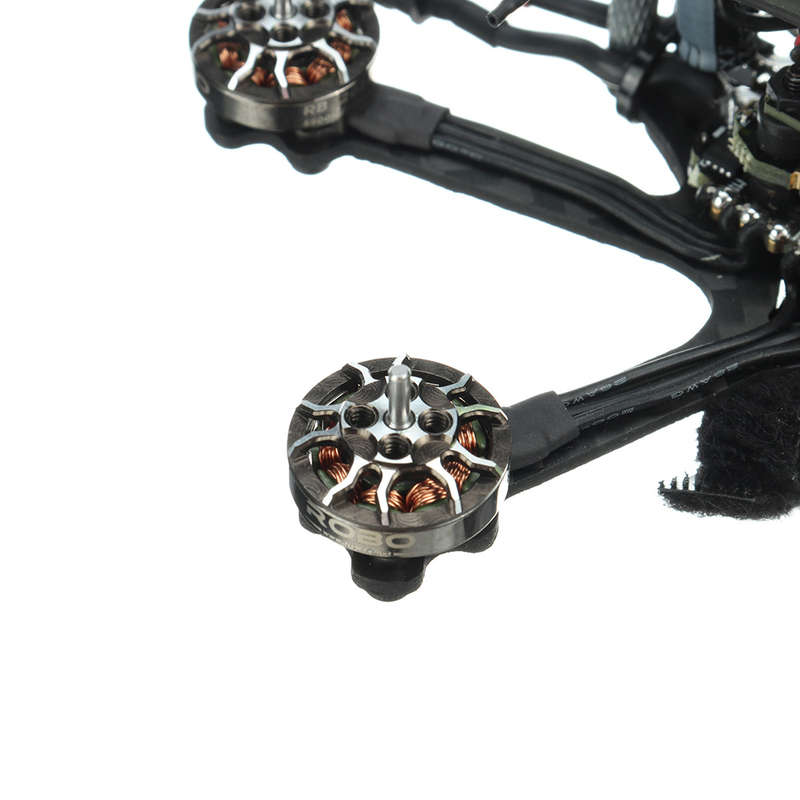

Robo?1202.5?5500KV 2-4S Motor
| Stator?diameter:?12mm
Stator?height:?2.5?mm
KV: 5500KV
Shaft?size:?M1.5
Pattern:?9??9?mm
Weignt:3.8g
|
| HQProp 40mm 4-Blade Propeller | Brand?Name:?HQProp
Model:?Micro?Whoop?40mmx4
Quantity:?2?CW?&?2?CCW? ? ? ? ? ? ? ? ? ? ? ? ? ? ??
Shaft?:?1.5?????????????????????????????? ??
Hub?Diameter:?6mm?????????
Hub?Thickness:?5mm????????
|
| GOKU VTX625 450mW VTX | Item Name: 5.8G 48CH?PIT/25/50/100/200/450mW Switchable Raceband:?5362-5945?MHZ
Power:?PIT/25/50/100/200/450mW?switchable
Control?Mode:IRC(RX)/Button
BAT:?+5V?Input
Video?System:?NTSC/PAL
Antenna:?IPX
Size:?30mm??30mm??4mm
Weight:?1.3g
|

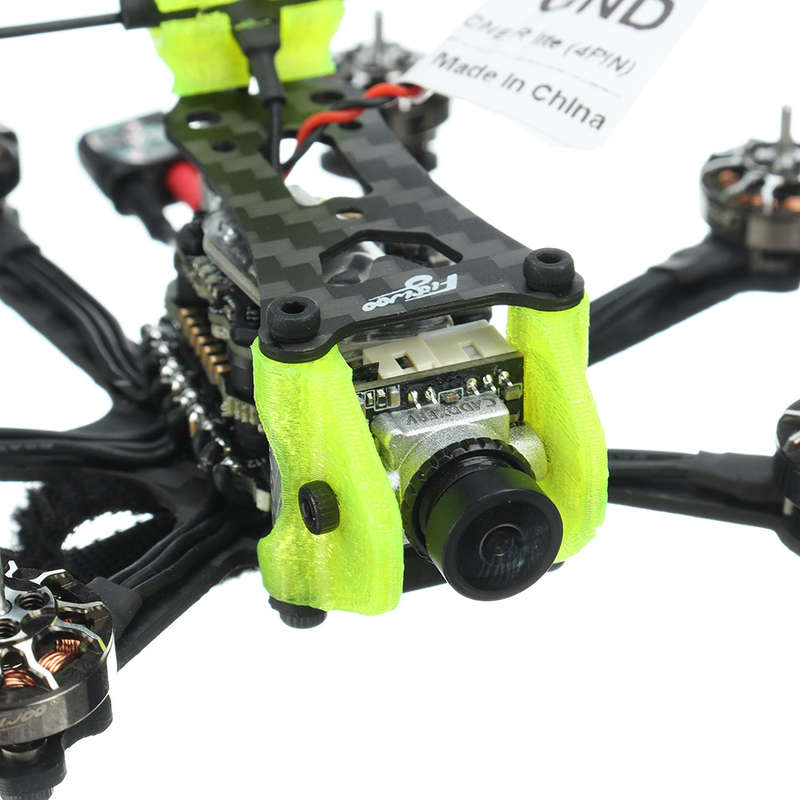

| Caddx ANT 1200TVL FPV Camera | Image?Sensor:?1/3?CMOS?Sensor
Horizontal?Resolution:?1200?TVL
Lens:?1.8mm
WDR:?Global?WDR
DNR:?3D?DNR
Dimensions:?14*14mm
Wide?Power?Input:?DC?3.7-18V
Weight:?2g?(N.W.)
|
| 5.8G FPV Antenna | Atomic?5.8GHz?Antenna?Length?30mm RHCP |
Recommend Lipo Battery ( NOT Included):??/?4S?300mAh 75C Battery XT30 Plug?
About?4?min?flight?with?Explorer?300mAh?4S?battery;?About?6?min?flight?with?Explorer?450mAh?4S?battery
Notice: The Insta360 Go, SMO 4K Camera and Camera Mount of them are NOT Included in pacakge.?

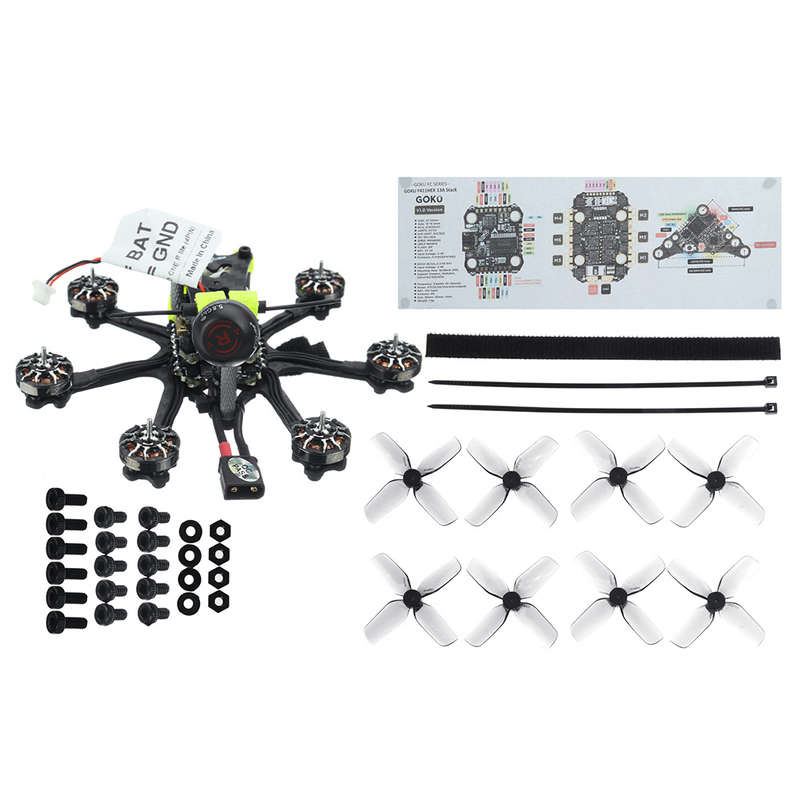

Package Included:
1 x Prebuilt and tested Firefly hex nano hexacopter
2 x HQ 40mm 4-Blades Props
2 x Lipo Strap
