Description:
Brand:?FLYWOO
Model:?GM8?MINI?V2.0?GPS

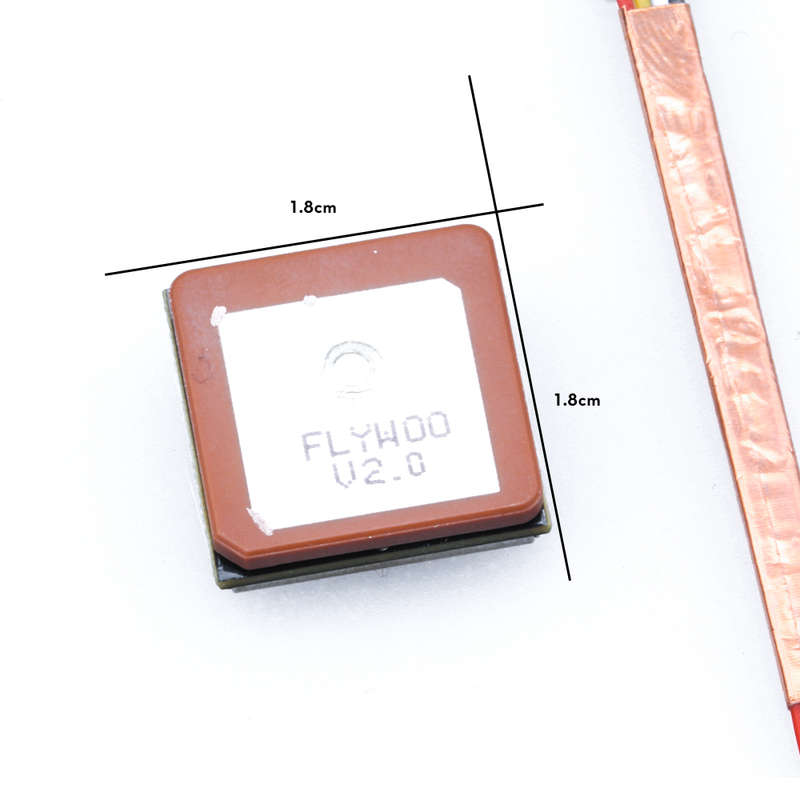

Dimension?:???18mm*18mm*6mm

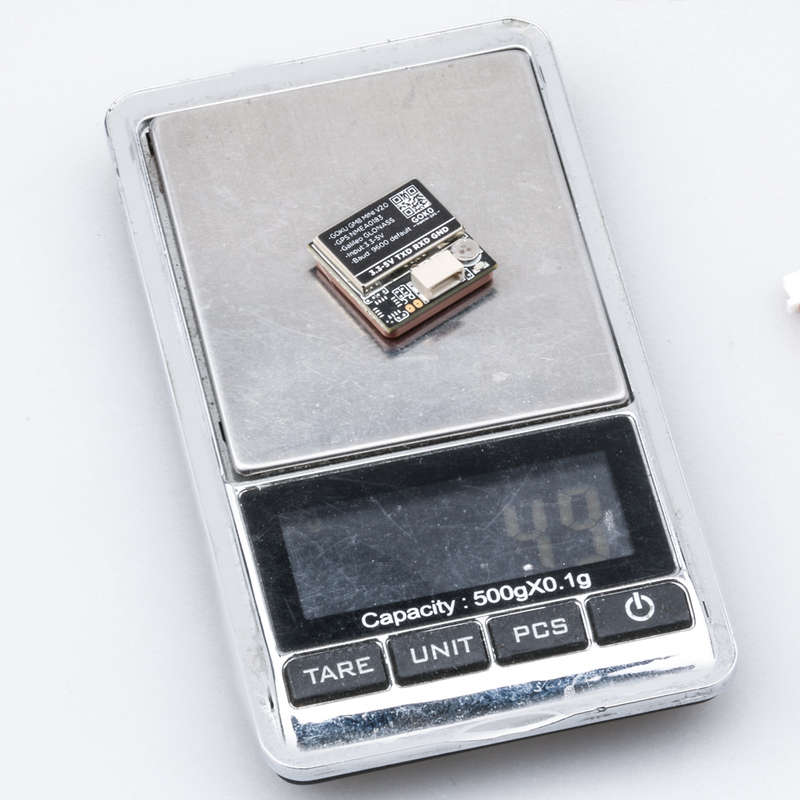

Weight?:?4.6g
Connector?:?1.00mm?spacing?between?the?4pins?patch?seat

Specification
Electrical?Characteristics
Chipset?:?M8030-KT
Receiving?Format?:?GPS,GLONASS,Galileo,BeiDou,QZSS?and?SBAS
Frequency?:?GPS?L1,GLONASS?L1,BeiDou?B1,SBAS?L1,Galileo?E1
Channels?:?72?Searching?Channel

Sensitivity
Tracking?:?-167dBm
Reacquisition?:?-160dBm
Cold?start?:?-148dBm
Hot?start?:?-156dBm

Accuracy
Position?Horizontal?:?2.0?m?CEP?2D?RMS?SBAS?Enable?(Typical?Open?Sky)
Velocity?:?0.1m/sec?95%?(SA?off)
Timing?:?1us?synchronized?to?GPS?time

Acquisition?Time
Cold?Start?:?26s
Warm?start?:?25s
Hot?start?:?1s

Data?and?Update?Rate
Support?Rate?:?4800bps?to?921600bps,Default?9600bps
Data?Level?:?TTL?or?RS-232,Default?TTL?level
Data?Protocol?:?NMEA-0183?or?UBX,?Default?NMEA-0183
Single?GNSS?:?1Hz-18Hz
Concurrent?GNSS?:?1Hz-10Hz,Default?1Hz

Operational?Limits
Altitude?:?50,000m?Max
Velocity?:?515m/s?Max
Acceleration?:?Less?than?4g

Power?consumption
VCC?:?DC?Voltage?3.0V-5.5V,Typical:?5.0V
Current?:?Capture?50mA/5.0V
Operating?temp?:???-40??ﾣC?~?+85?ﾣC
Storage?Temp?:?-40?ﾣC?~?+105?ﾣC

Indicator?
TX?LED:RED.The?data?output,?TX?LED?flashing
PPS?LED:red.PPS?LED?not?bright?when?GPS?not?fixed,flashing?when?fixed

Wiring
GND,TX?output,RX?input,VCC(3.0v-5.5v)

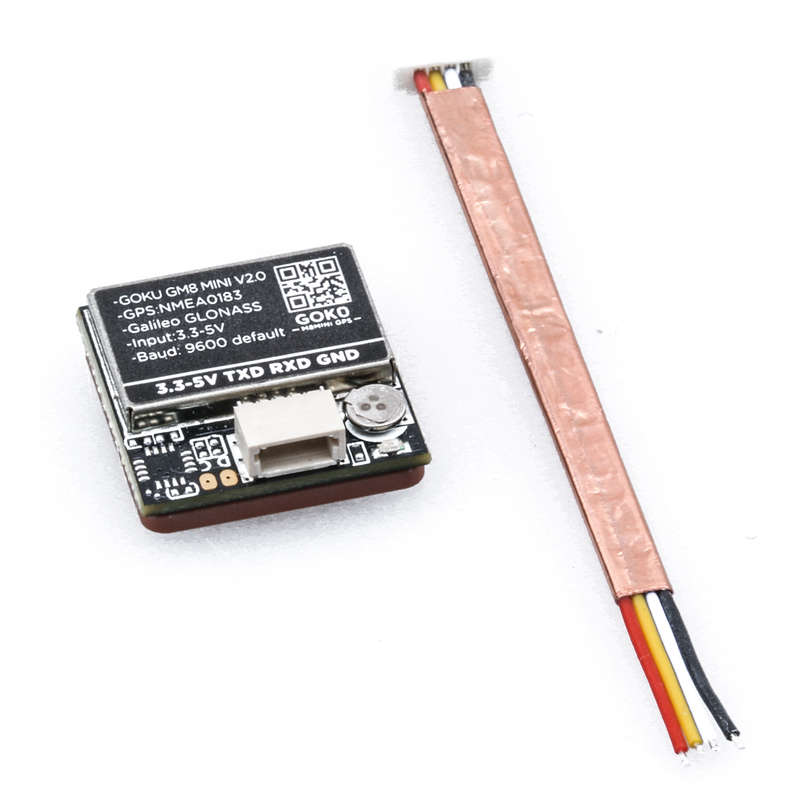

Package?Included?
1?x?GM8?MINI?V2.0?GPS?Module?
1?x?10cm?Cable
1x?Copper?foil?
