Flywoo NIN 1404 V2 2750KV 4-6S / 3750KV 3-4S / 4850KV 2-4S Ultraligh... (QUANTITY: 1PC | KV: 4850KV)

Introduction:

Co- Brand Dave_C & Flywoo Nin 1404 V2 Motor was made to the highest standards of ultralight build .

After months of test , we finally succeeded .

V2 verison here ! Perfectly match with GOKU 16X16 Micro ESC and Explorer LR frame !

Specification:

Brand Name: Flywoo

Model:?NIN 1404 V2

Item Name: 1404?2750KV 4-6S / 3750KV 3-4S / 4850KV 2-4S Ultralight Brushless Motor

KV: 2750KV / 3750KV? / 4850KV ( Optional)

Quantity: 1 PC/ 4 PCS? ( Optional)

Input Voltage: 4-6S ( 2750KV) ; 3-4S (3750KV); 2-4S (?4850KV)

Configuration: 9N12P

Idle Current(10)@10V: 034A@2750KV; 0.56A@3750KV; 0.75A@4850KV

Max. Power (180S): 150W

Internal Resistance: 400m??@2750KV;?260m??@3750KV;?160m??@4850KV

Max. Current (5S): 6.8A@2750KV;??9.5A@3750KV; 13A@4850KV? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

Wire Length: 30mm
Mounting Screw Pattern: 12x12 mm, M3

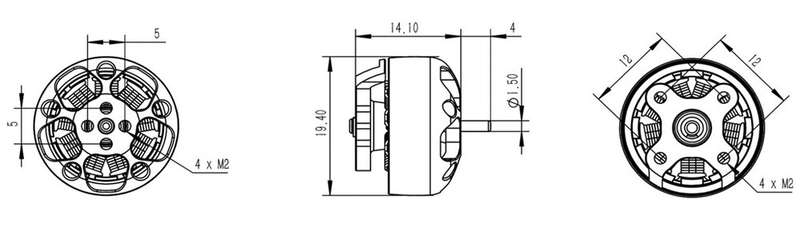

Motor Dimension: 19.4x14.1mm

Weignt: 9.5g(Include Cable)

Features:

1.?High-quality arc magnets and ultra-high heat resistant copper wire, perfect?quality?control?process

2.?Highest standard of the Electroplating process , that looks cleaner and aggressive

3.?Updated to high grade unibell design

4.?Efficient, very smooth, durable

Pacakge Included:

1 PC Version

1x 1404 v2 Motor

1x bag of Screws

OR?

4 PCS Version

4x 1404 v2 Motor

4x bag of Screws
