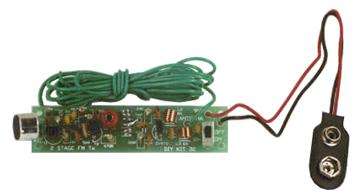

FM Transmitter with 3 Stages 9VDC

This Kit is a powerful three stage, 9V FM transmitter (Tx) with a range of up to 1 kilometer in the open. It uses an RF transistor in its output stage and two BC547's for the first two stages. On/off switch mounted on the PCB

Distance of trans-mission is critically dependent on the operating Conditions (in a building or out on the open), type of aerial used (single wire or dipole), operating voltage (12V is better than 6V) and if the circuit is peaked for maximum performance.

The kit is constructed on a single-sided printed circuit board (PCB). It has a silk screen overlay on top to aid construction. On the bottom there is a solder mask to help in soldering. Protel Autotrax.

• Working frequency range: 63 - 130MHz.
• Supply Voltage: 9Vdc
• PCB Dimensions: 17 x 70mm

Note: This is a build-it-yourself kit with all documentation, components and steps. Soldering required
