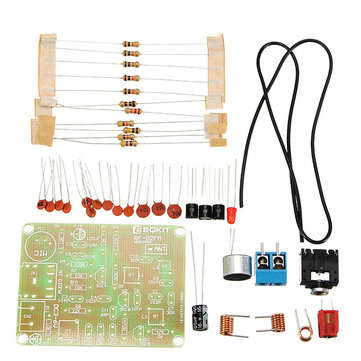

FM Wireless Transmitter DIY Kit Radio 88-108MHz
Operating Voltage : 3 ~ 6V
Operating Current : 5 ~ 15mA
Operating Frequency : 88~108MHz
Transmitting Distance : 5 ~ 50m
Audio Input : > -15dB (Max)
Size : 53 x 40mm

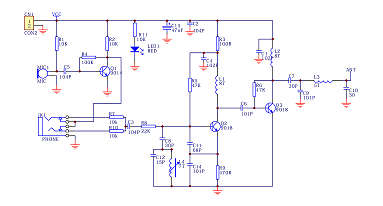

Components
Resistor - 470Ω x 1 (R9)
Resistor - 22KΩ x 1 (R8)
Resistor - 100Ω x 1 (R3)
Resistor - 10KΩ x 5 (R1, R2, R7, R10 and R11)
Resistor - 100KΩ x 1 (R4)
Resistor - 47KΩ x 2 (R5 and R6)
Capacitor 102P x 2 (C1 and C4)
Capacitor 104P x 3 (C2, C3 and C5)
Capacitor 101P x 3 (C6, C9 and C14)
Capacitor 68P x 1 (C11)
Capacitor 30P x 3 (C7, C8 and C10)
Capacitor 15P x 1 (C12)
Electrolytic Capacitor 100uF x 1 (C15)
Microphone x 1 (MIC)
3mm Red LED x 1 (LED)
7T Inductance x 1 (L4)
5T Inductance x 1 (L3)
8T Inductance x 2 (L1 and L2)
5P Audio Jack x 1 (JK1)
KF-301-2P Connector x 1 (CN1)
Triode - S9018 TO-92 x 2 (Q2 and Q3)
Triode - S9014 TO-92 x 1 (Q1)
Wire 300mm (ANT)
This item is available in stock and is not drop shipped. This avoids delays, customs and extra VAT.
