Features:
- USB color screen tester is a high reliability, high security USB voltage and current detection meter and mobile communication terminal fast charge trigger.

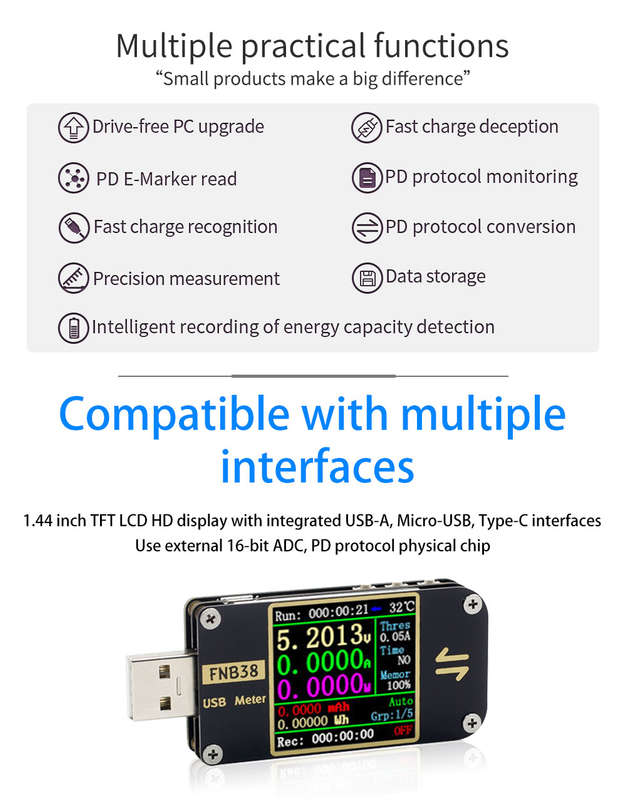

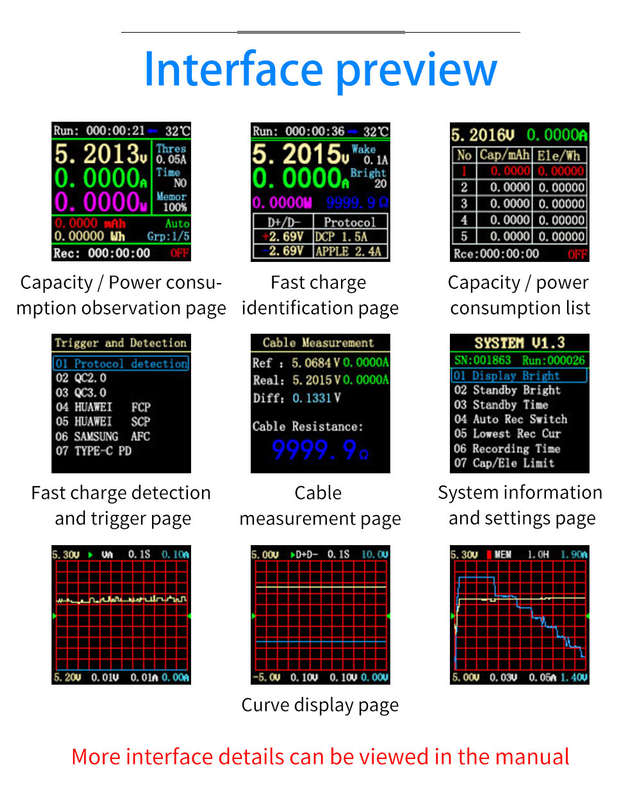

- Multiple practical functions: drive-free PC upgrade, fast charge deception, Chinese and English interface, standby brightness, fast charge recognition, screen flip, accurate measurement, data storage, intelligent recording of energy capacity detection.

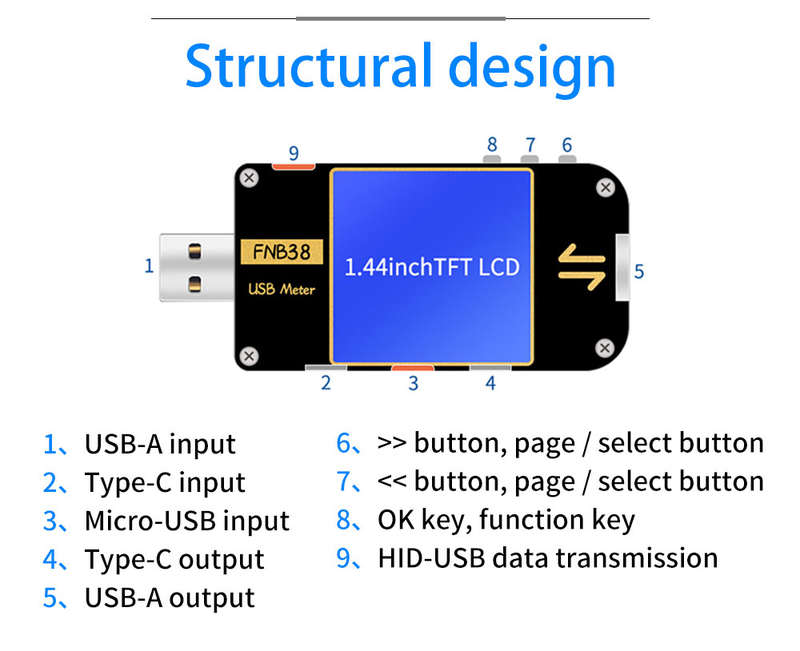

- USB2.0 interface, 1.44 inch TFT LCD high definition display with integrated USB-A, Micro-USB, Type-C interfaces, use external 16-bit ADC, PD protocol physical chip.
- One screen display, multiple interfaces compatible.

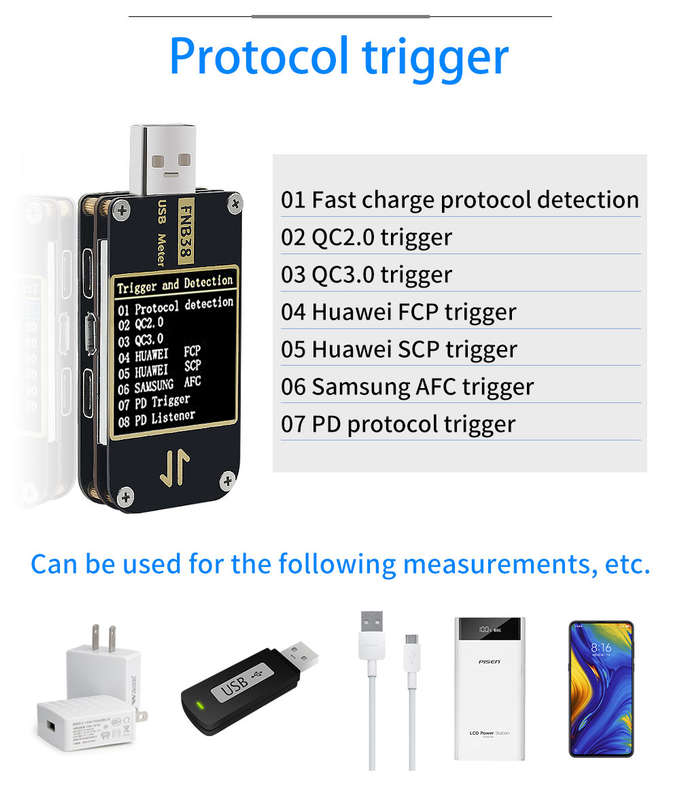

- Can be used for the measurement of rechargers, U disks, data cables, power banks, mobile phones, etc.

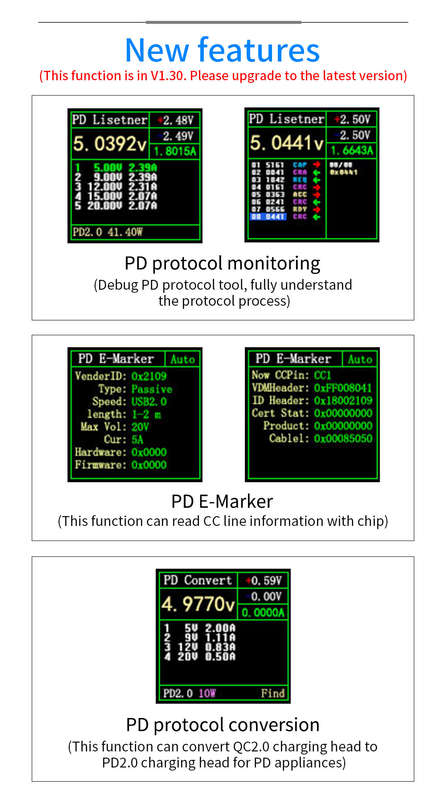

--PD monitoring function; PD E-Marker function; QC2.0->PD protocol conversion function.

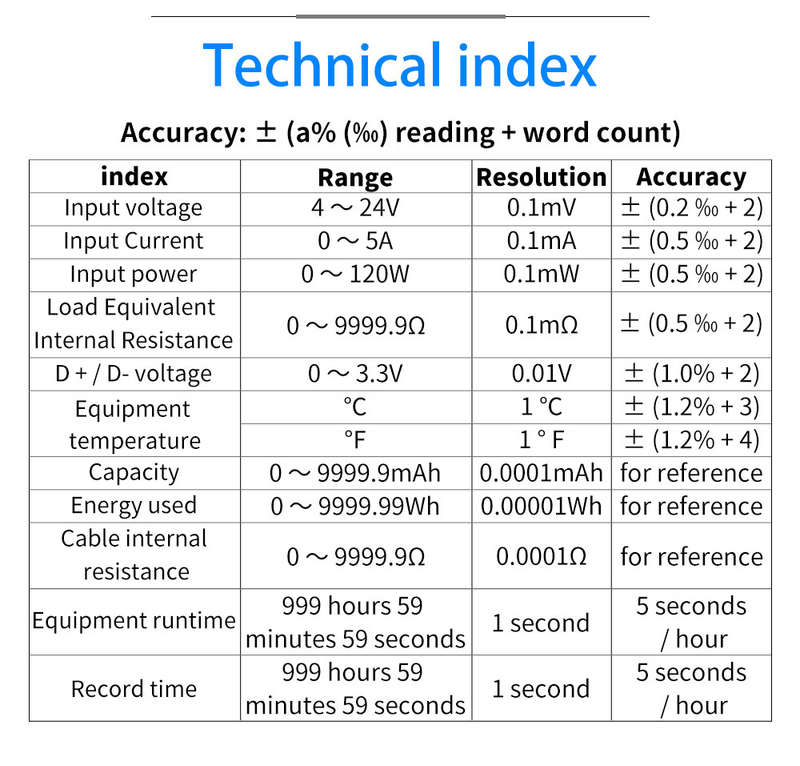

Specifications:
Material: ABS
Color: black
Input voltage:
Range: 4~24V
Resolution: 0.1mV
Accuracy: ±(0.2aﾣ+2)
Input current:
Range: 0~5A
Resolution: 0.1mA
Accuracy: ±(0.5aﾣ+2)
Input power:
Range: 0~120W
Resolution: 0.1mW
Accuracy: ±(0.5aﾣ+2)
Load equivalent internal resistance:
Range: 0~9999.9
Resolution: 0.1m
Accuracy: ±(0.5aﾣ+2)
D+/D- voltage:
Range: 0~3.3V
Resolution: 0.01V
Accuracy: ±(1.0%+2)
Equipment temperature:
Range: a, a
Resolution:
a: 1a
a: 1a
Accuracy:
a: ±(1.2%+3)
a: ±(1.2%+4)
Capacity:
Range: 0~9999.9mAh
Resolution: 0.0001mAh
Accuracy: for reference
Energy used:
Range: 0~9999.99Wh
Resolution: 0.00001Wh
Accuracy: for reference
Cable internal resistance:
Range: 0~9999.9
Resolution: 0.0001
Accuracy: for reference
Equipment runtime:
Range: 999 hours 59 minutes 59 seconds
Resolution: 1 second
Accuracy: 5 seconds / hour
Record time:
Range: 999 hours 59 minutes 59 seconds
Resolution: 1 second
Accuracy: 5 seconds / hour

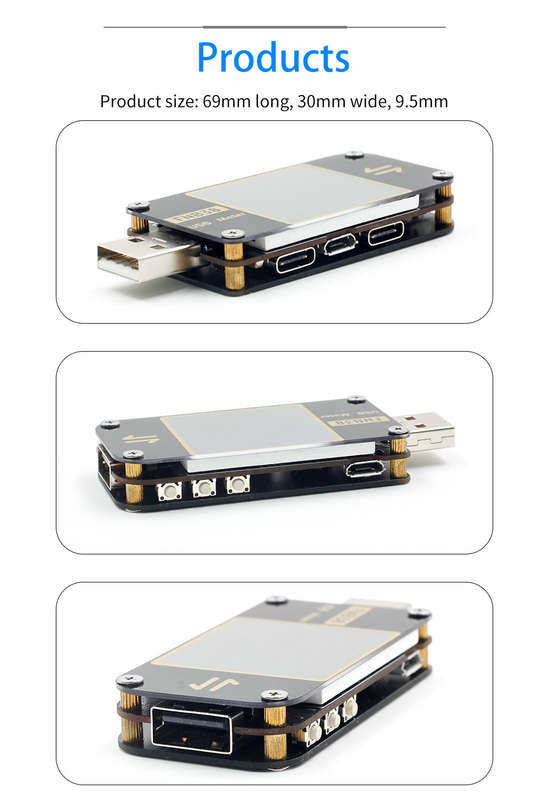

Item size: 69 x 30 x 9.5 mm / 2.7 x 1.2 x 0.4 in

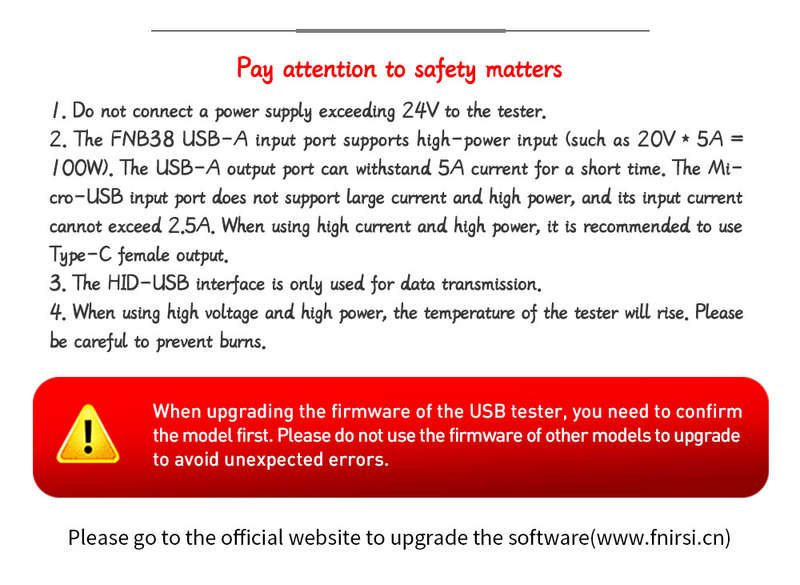

Note: do not connect a power supply exceeding 24V to the tester.
Package Included:
1 x FNB38 Current And Voltage Meter USB Tester
1 x Storage Box
