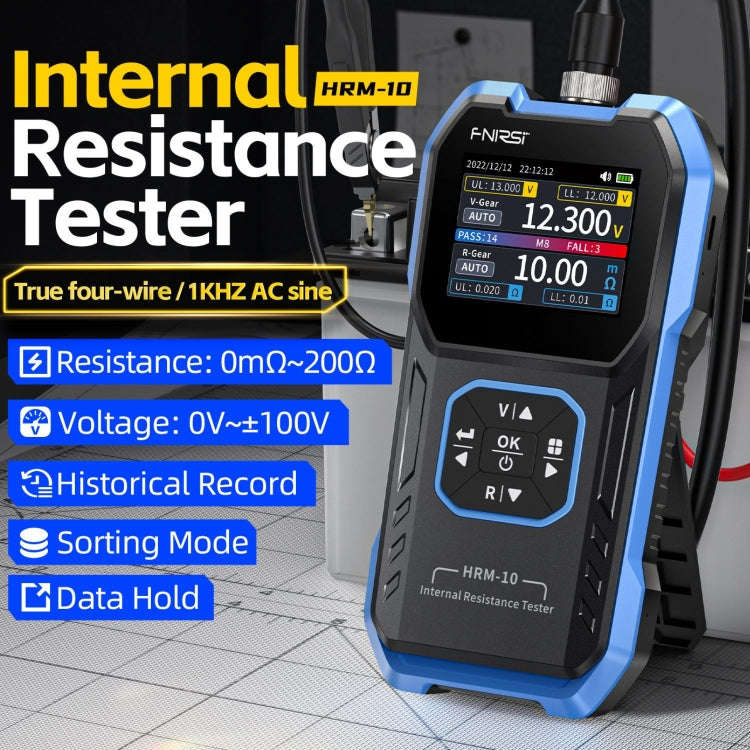

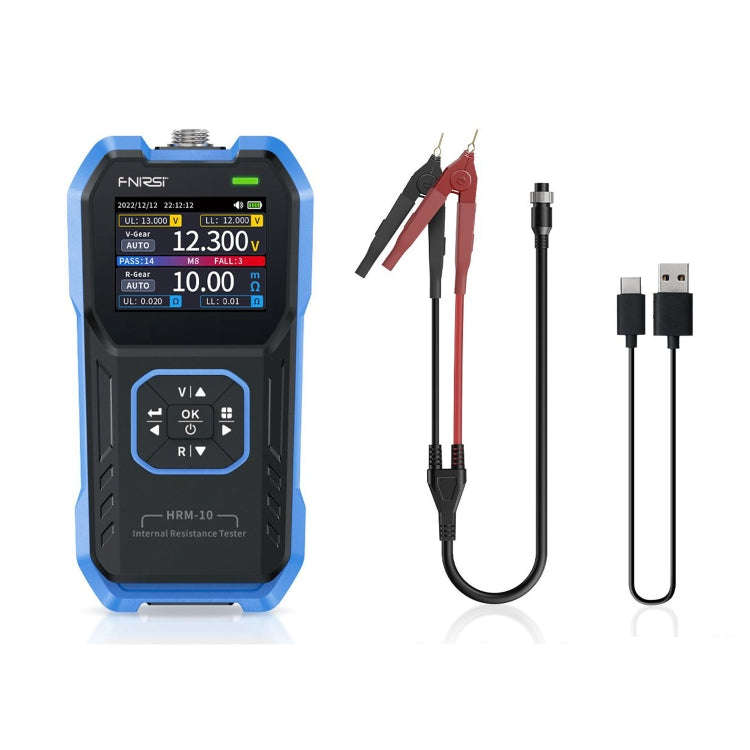

FNIRSI 18650 Lithium Battery Internal Resistance Voltage Measuring Instrument(HRM-10)

1. Voltage range: 0-100V (DC)
2. Voltage range: automatic, 1V, 10V, 100V
3. Resistance: 0-200 ohms
4. Resistance range: automatic, 20 milliohms, 200 milliohms, 2 ohms, 20 ohms, 200 ohms
5. Instrument test signal frequency: AC 1Khz
6. Charging: TYPE-C interface (5V/1A)
7. Built-in battery: 1000mAh lithium battery
8. Stable support, integrated folding bracket
9. Firm and reliable without occupying space, back hanging hole gourd nail design
10. Place on the desktop to work without slipping, silicone anti-slip design

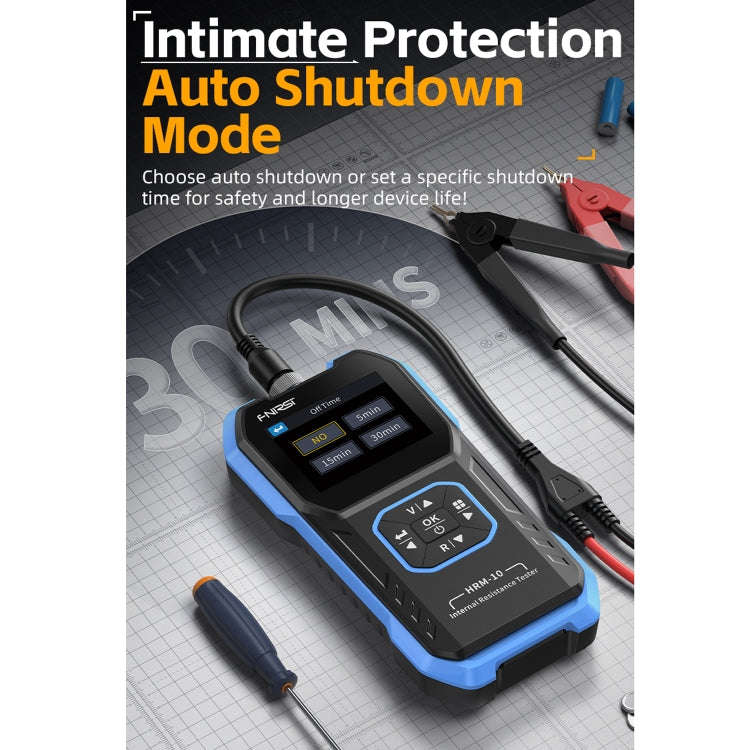

11. According to actual needs, you can freely choose the automatic shutdown mode or set a specific shutdown time, which is safe to use and can extend the life of the device

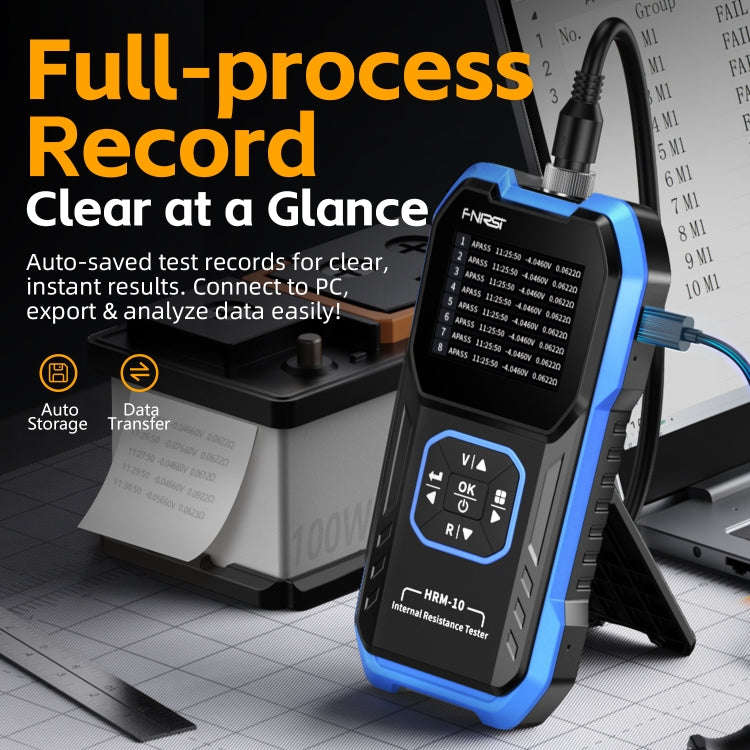

12. One-click pause, memory stay, data retention
13. The test uses a customized Kelvin 4-wire connection method to connect and measure, avoiding the influence of wire resistance and contact resistance, improving test accuracy

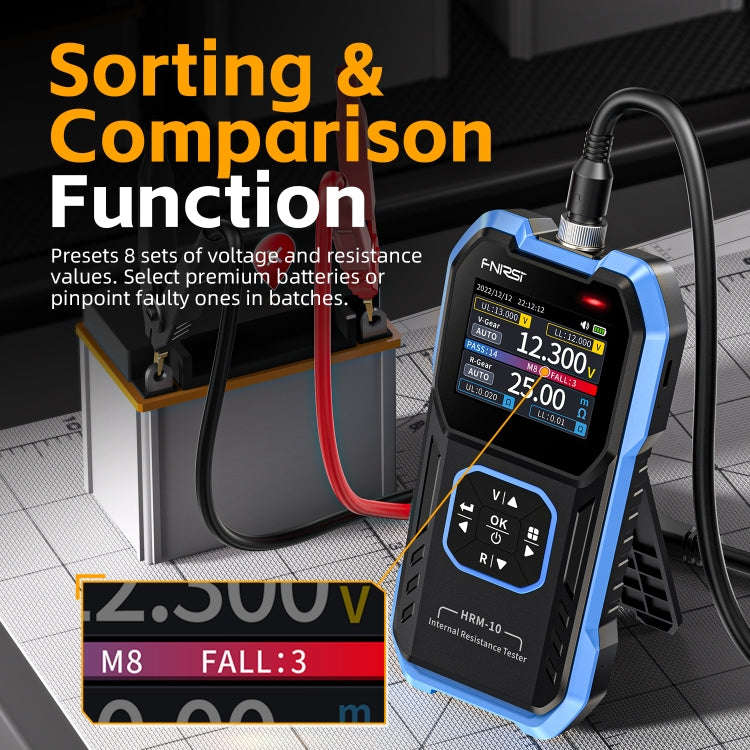

15. Eight sets of voltage resistance values ??are pre-set, whether it is batch screening of high-quality batteries or precise positioning of problem batteries, it can be completed in an instant, greatly improving work efficiency

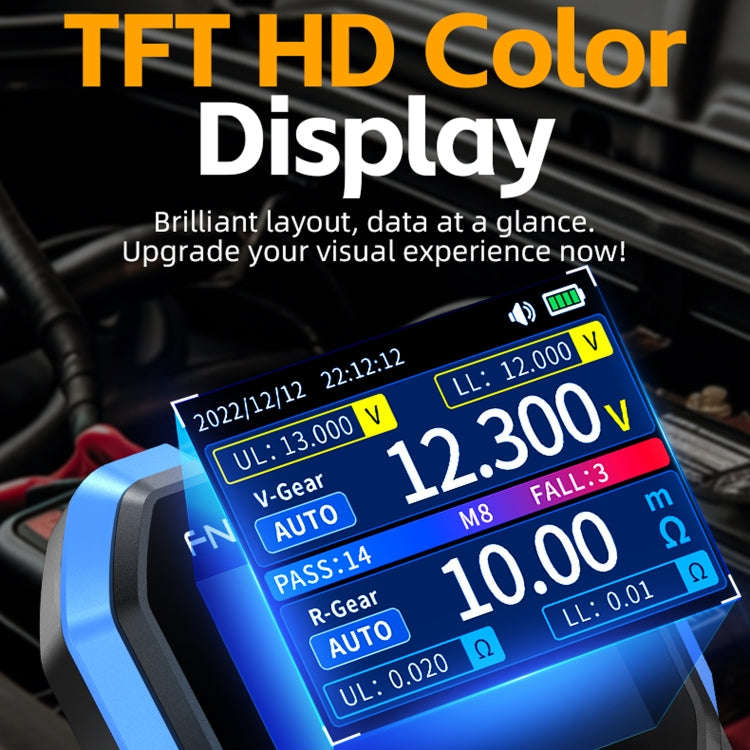

16. Using TFT high-definition color screen, functional data is clear at a glance, and visual recognition efficiency is faster and smoother
17. Size: 158.7x80.5x28.4mm
18. Weight: 225g
