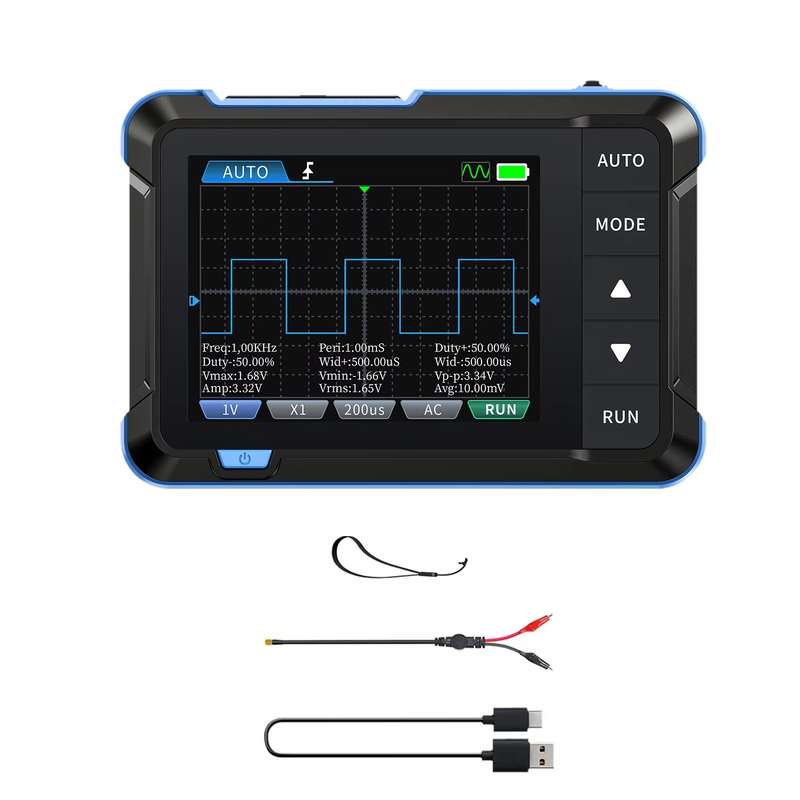

FNIRSI 2 In 1 Mini Portable Digital Oscilloscope Signal Generator, Set: Standard

1. Sampling rate: 5MS/s
2. Bandwidth: 1M
3. Vertical sensitivity: 10mV/Div~10V/Div
4. Time base range: 500ns~20S
5. Waveform pause: supported
6. Trigger mode: With complete trigger function (single, normal, automatic), it can be used freely for both periodic analog signals and non-periodic digital signals
7. Voltage range: Can measure 400V voltage signal
8. Calibration square wave: Comes with 1KHz calibration square wave, easy and convenient probe calibration
9. Frequency: 0-10KHz
10. Amplitude: 0.1~3.3V
11. Coupling mode: AC/DC
12. Display: 2.8 inches/PPI 320x240
13. USB charging: 5V/1A
14. Lithium battery capacity: 1000mAh
15. Waveform: sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive step wave, reverse step wave, noise wave, exponential rise, exponential fall, DC signal, multi-audio, Sink pulse, Lorentz wave
16. Automatically shut down after a certain period of no operation, saving energy and extending service life
17. Suitable for use in a variety of occasions, lightweight and space-saving, can be carried with you for work, maintenance and DIY tools
18. Highly sensitive buttons, super simple and easy to understand operation experience
19. Type-C port, supports firmware upgrades and charging
20. Standard configuration, upgrade comparison: host, basic accessories are the same, the upgrade is more than the standard configuration, a P6100 probe (10x probe) + adapter
21. Size: 99x68.3x19.5mm
22. Weight: 100g
