FNIRSI 3 In 1 Handheld Digital Oscilloscope LCR Transistor Tester, Specification: Upgrade

1. Display: 2.4-inch TFT colour screen, LED backlighting
2. Supply voltage: built-in 1500mAh rechargeable lithium battery
3. Charging specification: USB Type-C, +5V
4. Product volume: 79x103x31mm
5. Real-time sampling rate: 10MSa / s
6. Analogue bandwidth: 500Khz
7. Input impedance: 1 milliohm
8. Coupling method: AC/DC
9. Test voltage range: 400V
10. Vertical sensitivity: 10mV-10V
11. Horizontal time base range: 1us-10s
12. Trigger mode automatic: normal single
13. Trigger type: rising edge/falling edge
14. Compact body, simple modelling, easy to use, to meet the measurement routine
15. Automatic identification and measurement of various transistors, including NPN and PNP transistors, N-channel and P-channel FETs, junction FETs, diodes, dual-diode thyristors, etc., as well as resistors, inductors, capacitors and other passive components
16. Built-in 1500mAh high-capacity lithium battery, power supply continuous operation without isolation transformer, safer to use
17. 2.4-inch anti-see-through high-resolution display, allowing you to read clearly even in bright sunlight
18. One-piece folding, placed in a stable support, does not take up space
19. Size: 79x103x31mm

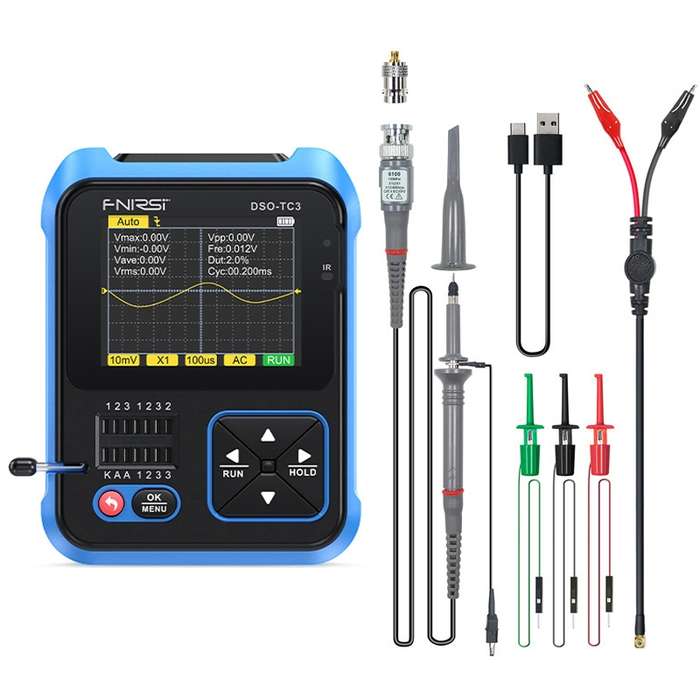

Standard:
- DSO-TC3 Tester x 1
-Type-C charging cable x 1
-Common probe x 1
-Test Hook x 3

Upgrade:
-DSO-TC3 Tester x 1
-Adaptor x 1
-P6100 High Voltage Probe x 1
-Type-C charging cable x 1
-Normal Probe x 1
-Test Hook x 1
