Panel Type

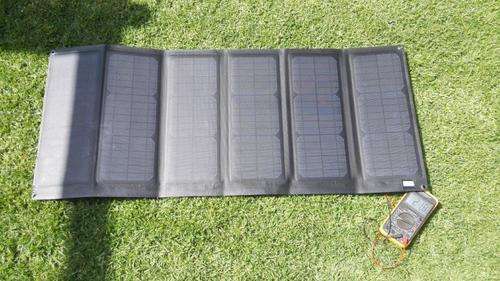

60Wp Monocrystalline sillicon photovoltaic module
Maximum Power (Pmax)
60W
Voltage Pmax (Vpm)
18V
Current Pmax (Ipm)
3.3A
Open Circuit Voltage (Voc)
21.24V
Short Circuit Current (Isc)
3.6A
Output Tolerance
±5%
Maximum System Voltage
100VDC
Series Fuse Rating
5A or 10A (can choose)
Application
DC 12V system
Efficiency of Module
9.8%(open)
Temperature Coefficients of Pmax (%)
-0, 37%/°C
Temperature Coefficients of Voc (%)
-0, 34%/°C
Temperature Coefficients of Isc (%)
+0, 09%/°C
Operating Temperature
-20 to 50°C
Storage Temperature
-20 to 30°C
System Cell
156mm Monocrystalline sillicon
Number of Cells & Connections
216pcs in series (2 x 18 x 6)
Module Size (W x L x H)
1225 x 516 x 30mm (open)
516 x 202 x 45mm (folding)
Weight Approximately
3.3KG
Anti-Reverse Charge
Anti-reverse charging by using 1 diode
