For Club Car 48V 275A Motor Controller with Wire Harness 1510A-5251 1266A-5201

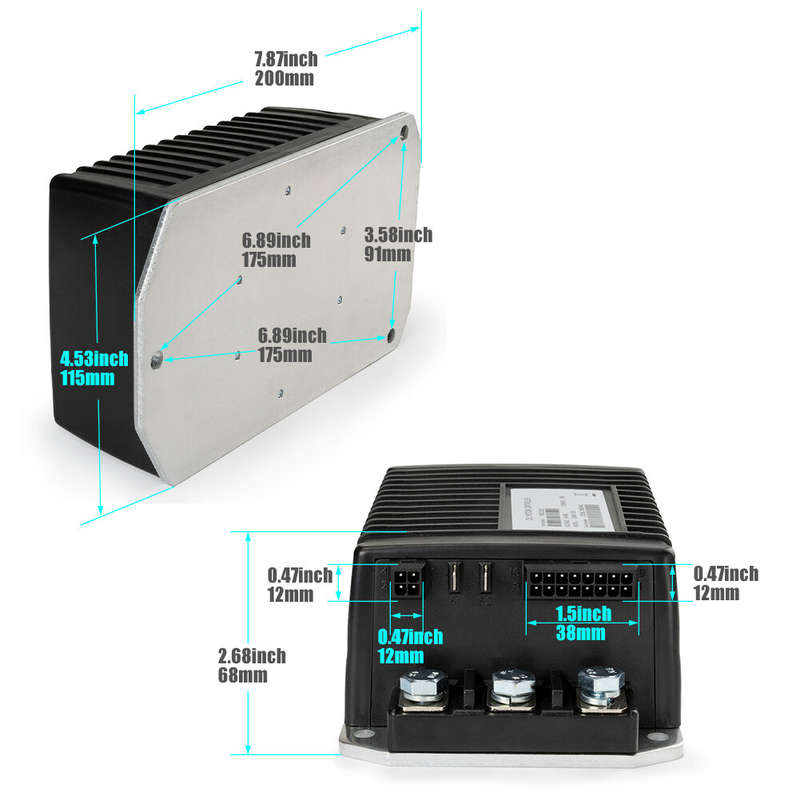

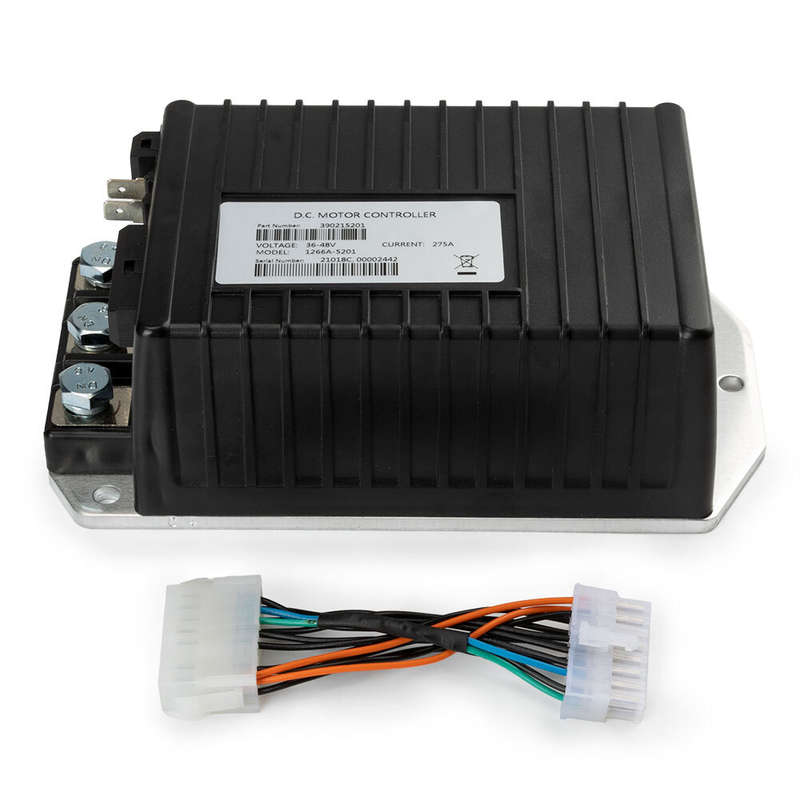

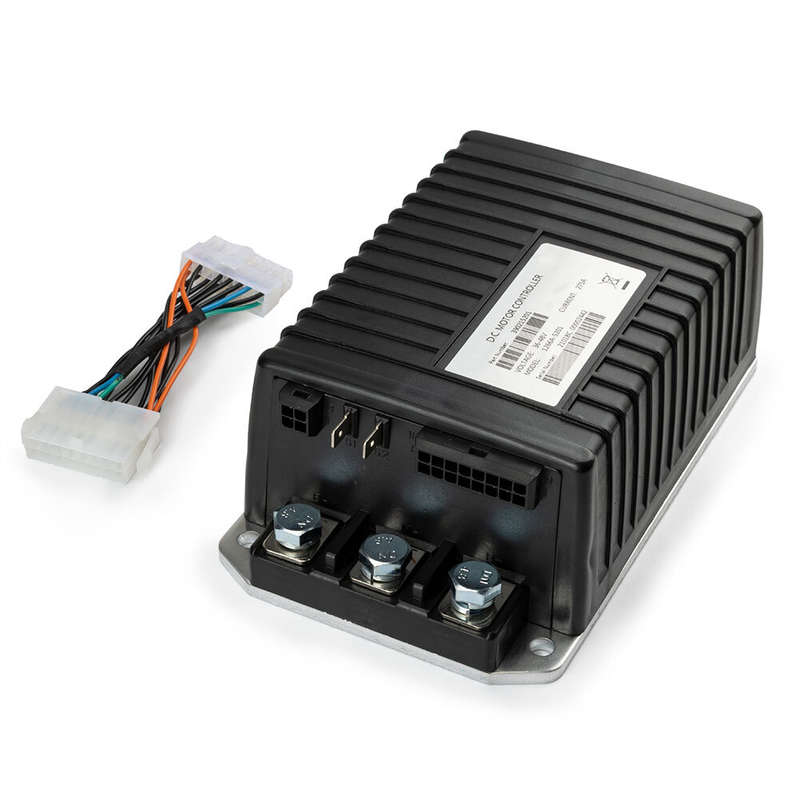

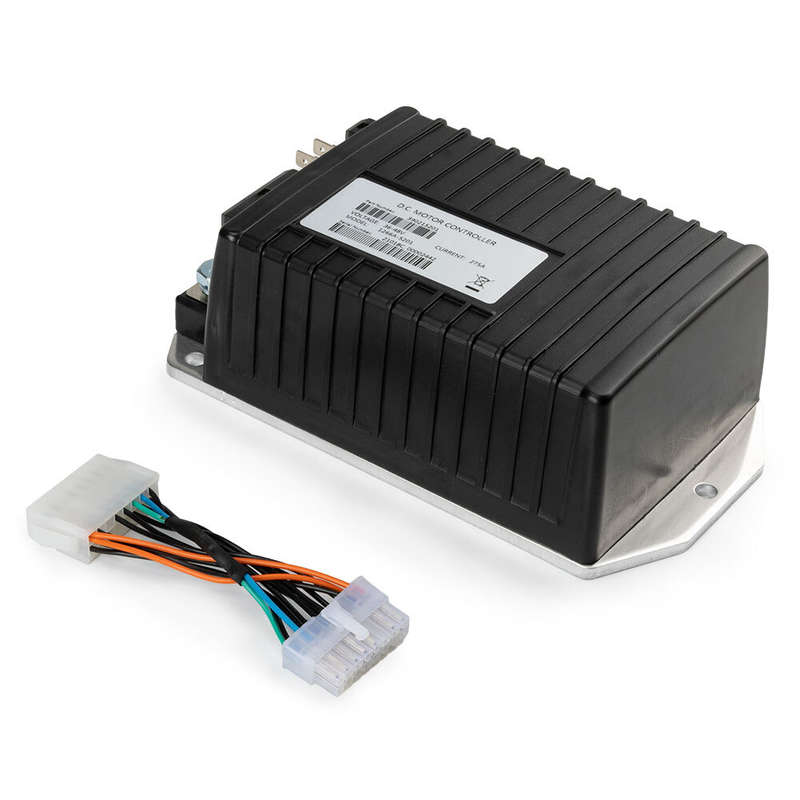

Product Description Features For Curtis 1266 controllers are separately excited motor speed controllers designed for use in a variety of transport vehicles. These programmable controllers are simple to install, efficient, and cost effective. Typical applications include golf carts and small utility vehicles. The 1266 controller offers smooth, silent, cost effective control of motor speed and torque. The speed sensor input allows superior closed-loop control for regulating vehicle speed. Unique braking parameters allow simple, intuitive deceleration tuning. A full-bridge field winding control stage is combined with a half-bridge armature power stage to provide solid state motor reversing and regenerative braking power without additional relays or contactors. Specification - Nominal input voltage: 48 V - PWM operating frequency: 16 kHz - Electrical isolation to heatsink: 500 V ac (minimum) - Package environmental rating: IP5X -Weight: 1.9 kg - Dimensions (L×W×H): 198 × 114 × 68 mm -Armature 2 Min Rating: 275A (275A can use as 250A) -Need to use the adapter to connect the cart. Package content: 1PC Motor Controller Please message us your old controller(Model, Current, Voltage), and tell us what is the problem with your old controller. Part Number: 1510A-5251, 1266A-5201
