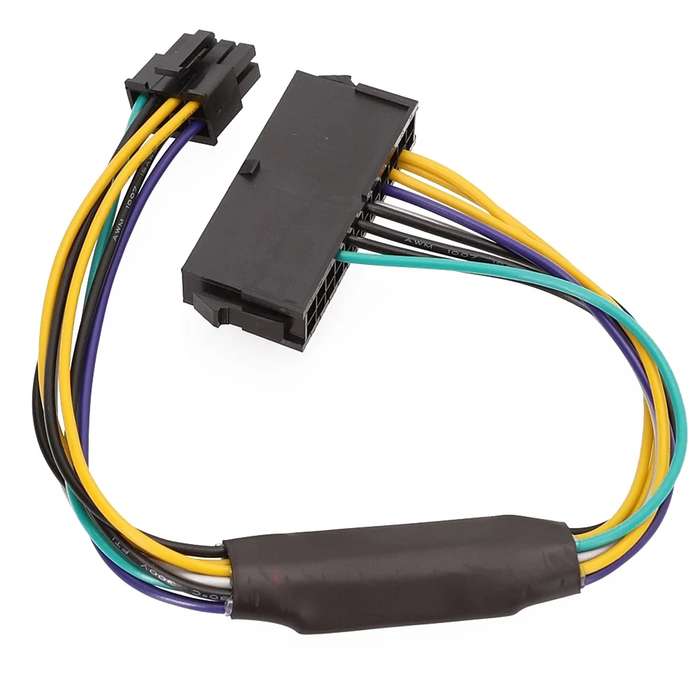

For DELL Optiplex 3020/7020/9020 8-Pin Power Cord ATX 24P To 8P Cable(30cm)

1. Material: 1007-18AWG all-copper tinned wire + environmentally friendly connector
2. For DELL full range of 8P motherboards, for DELL Optiplex 3020 7020 9020 T1700
3. One end of the pin socket is connected to the ordinary ATX power supply 24P, and the other end is connected to the full range of DELLH61/H81/Q77/Q87/B75/A75/Q75/Q65, etc.
4. As long as it is the 8P pin socket of the motherboard, it uses 18AWG standard wire, 0.18x34 copper core, and supports 1000W high-power power supply.
5. Length: 30cm
6. Weight: 42 grams

Friendly reminder:
1. Because of the above models, in addition to the 8-pin motherboard power supply, there is also a 4-pin power supply, which is a standard CPU 4-pin design.
2. If your power supply does not have a CPU 4-pin cable or only has an 8-pin CPU power supply, you need to purchase a CPU 8-pin to CPU 4-pin cable.
3. This adapter cable requires a 24P power supply definition, which must be AXT standard, and make sure before taking the photo whether the chassis can be installed in a standard large power supply size.


TBD0604298201A
