For DJI Tello 8520 Brushed Motor Replacement Repair Part, Colour: M1 (Black White Long Cable)

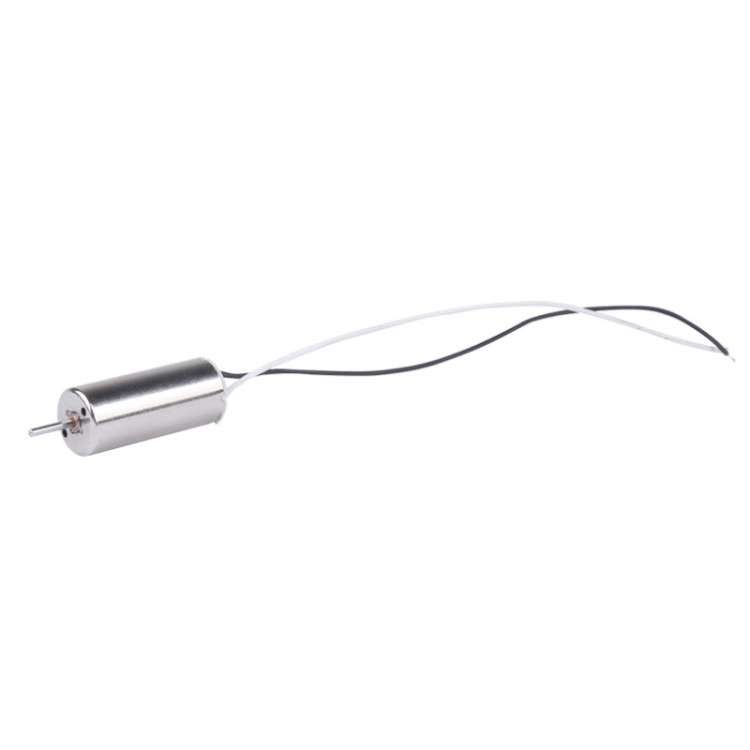

Name: For DJI Tello 8520 Brushed Motor Replacement Repair Part, Colour: M1 (Black White Long Cable)
SKU: TBD0587029401
Price: 252.00 ZAR
Availability: SoldOut

10 were available / new

R252.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

techietoys592

96.85 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Product code

TBD0587029401

Bob Shop ID

610896272

1. Voltage: 2.1V DC
2. Operating voltage range: 1.5~4.2V DC
3. Rotation direction: CW/clockwise rotation, CCW/counterclockwise rotation
4. Motor position: all directions
5. Operating environment: -20-60 degrees Celsius, 10-90%RH
6. Temperature: 20+/-2 degrees Celsius
7. Humidity: (65+/-5%)RH
8. Motor status: the output shaft is horizontal (the motor is fixed in the test fixture)
9. Weight: about 5.5g
10. Size: 85 x 20MM
11. Cable length: 71mm (rear) 87mm (front)
12. Specifications: forward black and blue lines, reverse black and blue lines
13. Axial clearance: 0.05-0.3mm
14. No-load speed: 28000+/-10%RPM
15. No-load current: 200mA (MAX)
16. Load speed: 20500+/-6%RPM (voltage 2.5V passenger blade 76mm-CW)
17. Load current: 2.7+/-0.25A (voltage 2.5V, passenger-supplied blade 76mm-CW)
18. Starting voltage: 0.8VDC (MAX) (rated load, shaft level)
19. Dielectric strength: 5MQ (MIN) (add 100V DC voltage between the wire and the motor body.)
