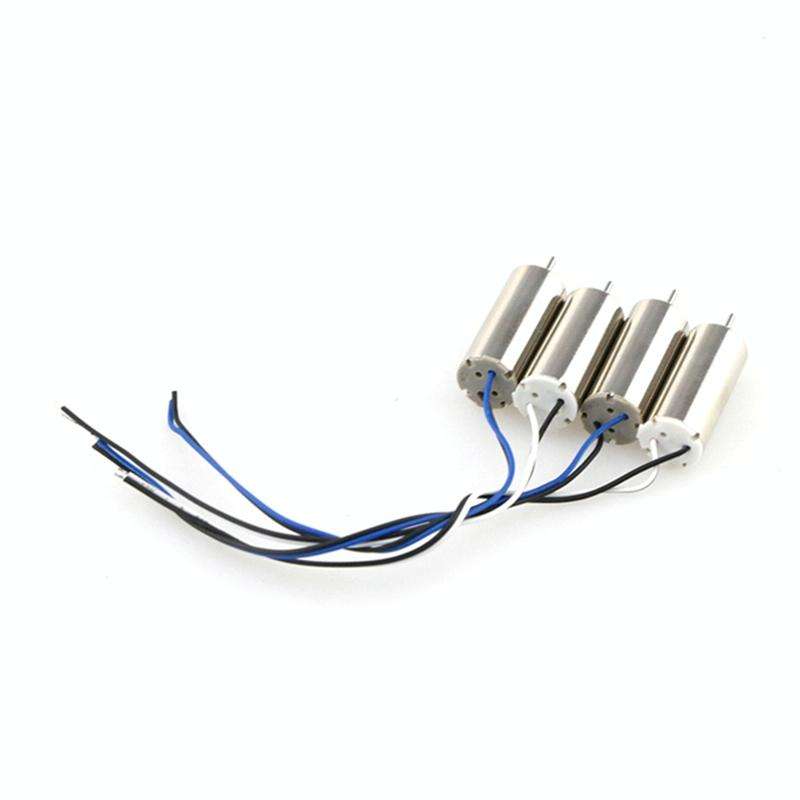

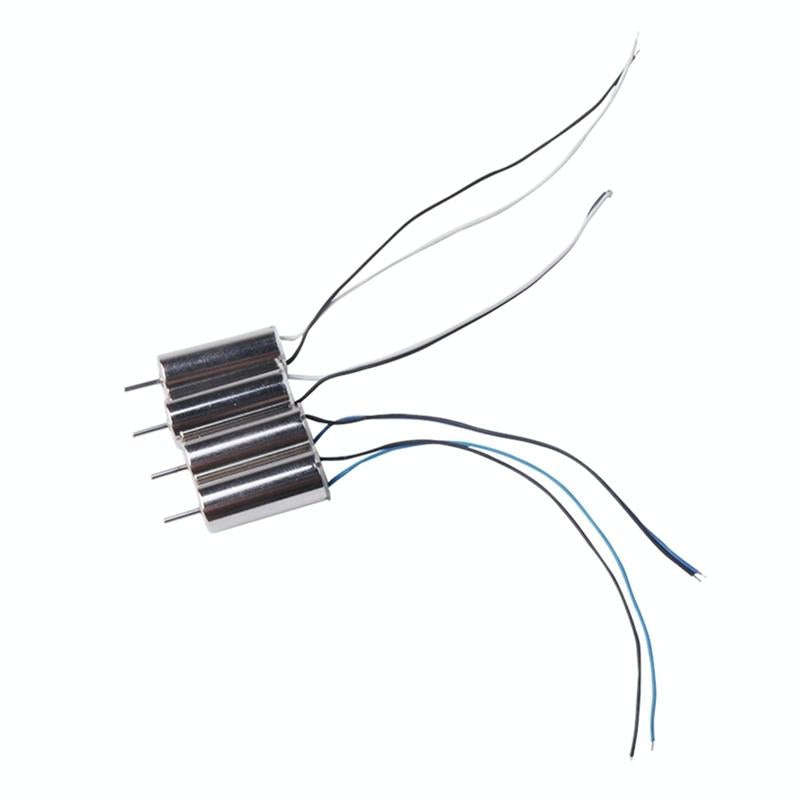

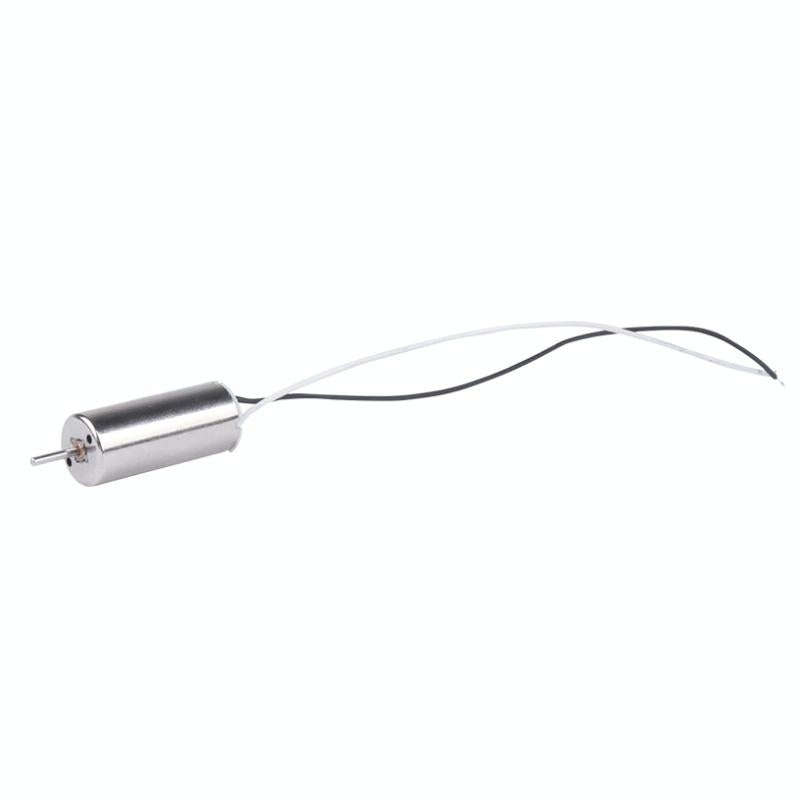

For DJI Tello 8520 Brushed Motor Replacement Repair Part, Colour: M1 (Black White Long Cable) For DJI Tello 8520 Brushed Motor Replacement Repair Part, Colour: M1 (Black White Long Cable) For DJI Tello 8520 Brushed Motor Replacement Repair Part, Colour: M1 (Black White Long Cable) For DJI Tello 8520 Brushed Motor Replacement Repair Part, Colour: M1 (Black White Long Cable)
For DJI Tello 8520 Brushed Motor Replacement Repair Part, Colour: M1 (Black White Long Cable) For DJI Tello 8520 Brushed Motor Replacement Repair Part, Colour: M1 (Black White Long Cable) For DJI Tello 8520 Brushed Motor Replacement Repair Part, Colour: M1 (Black White Long Cable) For DJI Tello 8520 Brushed Motor Replacement Repair Part, Colour: M1 (Black White Long Cable)

For DJI Tello 8520 Brushed Motor Replacement Repair Part, Colour: M1 (Black White Long Cable)

New 100 available
R258.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
TBD0587029401
Bob Shop ID
621610399

1. Voltage: 2.1V DC
2. Operating voltage range: 1.5~4.2V DC

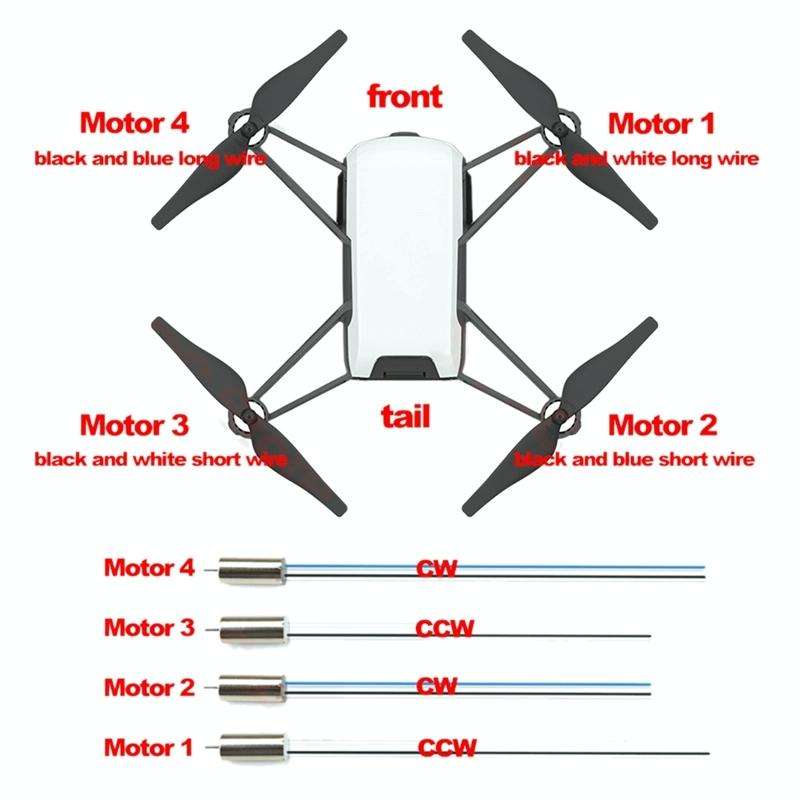

3. Rotation direction: CW/clockwise rotation, CCW/counterclockwise rotation
4. Motor position: all directions
5. Operating environment: -20-60 degrees Celsius, 10-90%RH
6. Temperature: 20+/-2 degrees Celsius
7. Humidity: (65+/-5%)RH
8. Motor status: the output shaft is horizontal (the motor is fixed in the test fixture)
9. Weight: about 5.5g
10. Size: 85 x 20MM
11. Cable length: 71mm (rear) 87mm (front)
12. Specifications: forward black and blue lines, reverse black and blue lines
13. Axial clearance: 0.05-0.3mm
14. No-load speed: 28000+/-10%RPM
15. No-load current: 200mA (MAX)
16. Load speed: 20500+/-6%RPM (voltage 2.5V passenger blade 76mm-CW)
17. Load current: 2.7+/-0.25A (voltage 2.5V, passenger-supplied blade 76mm-CW)
18. Starting voltage: 0.8VDC (MAX) (rated load, shaft level)
19. Dielectric strength: 5MQ (MIN) (add 100V DC voltage between the wire and the motor body.)
