for F411-WTE Flight Control with OSD/Racing FPV Quadcopter Flight Control Supports 2S-6S/BMI270 Sens

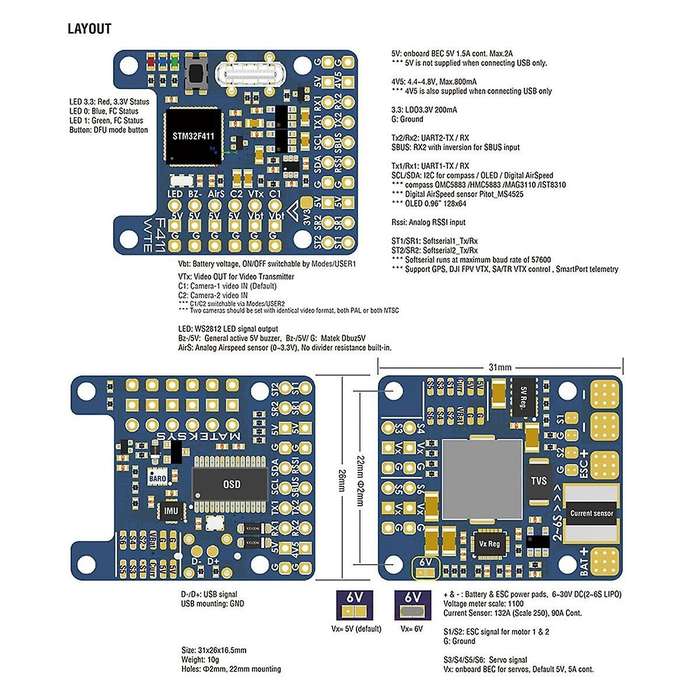

Specifications: MCU: 100MHz STM32F411CEU6IMU: BMI270 (SPI)Baro: SPL06-001 (I2C)OSD: AT7456E (SPI)2x Uarts2x Full Softserial6x PWM outputs (2x Motors, 4x Servos)1x I2C4x ADC (VBAT, Current, RSSI, AirSpeed)3x for STATUS (Blue, Red) and 3.3V indicator(Red)Built in inverter on UART2-RX for SBUS inputSwitchable Dual Camera InputsVbat power ON\/OFF switchable for VTX and cameraPPM receiver: not supportedPower6~30V DC IN (2~6S LiPo)132A Current Sense (Scale 250)PDB\/Current sense resistor: 90A continuous, 132A burst.BEC 5V 1.5A for & PeripheralsBEC Vx 5A for servos, 5V\/ 6V optionVbat for VTX and camera (ON\/OFF switchable)LDO 3.3V 200mABattery Voltage Sensor: 1k:10k FirmwareINAV Target: MATEKF411TE ( INAV4.1 or newer)PhysicalDimensions: 31 x 26 x 16.5 mmMounting: 22 x 22mm, 2mmColour:blueMaterial:PCBPackage Contents:1 x F411-WTE Flight ControlDue to different batches, there may be differences in the appearance, color and printing of the product, which will not affect its useOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
