For Fiat Linea Punto EVO line 2012-2015 Car Android Navigation Bluetooth FM Radio, Memory: 2+32G

TBD0603988302
Basic functions

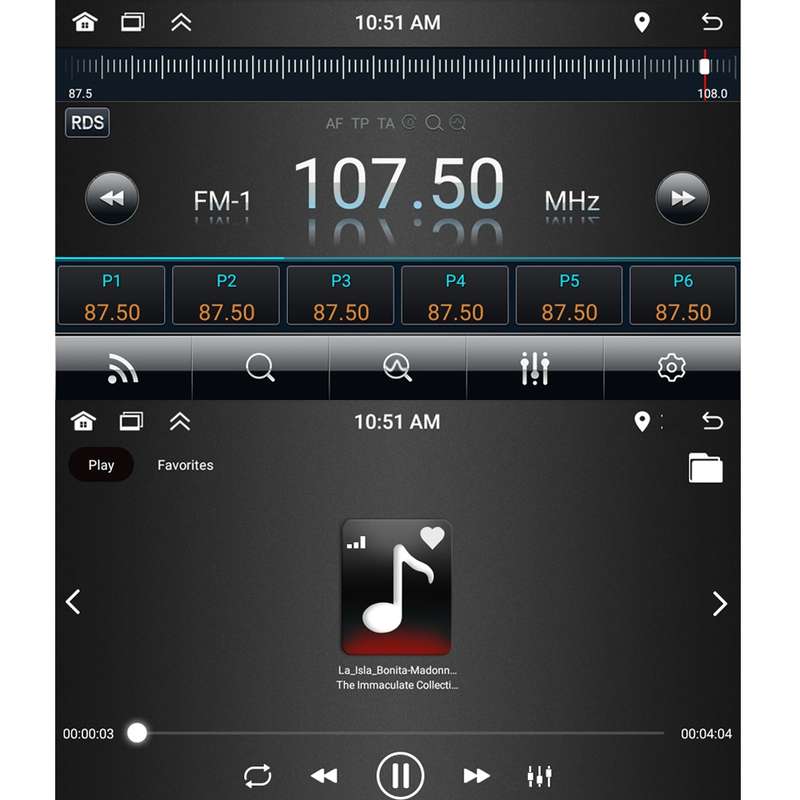

1. Radio (FM)
2. Read USB disk (audio/video/picture)
3. Audio input function

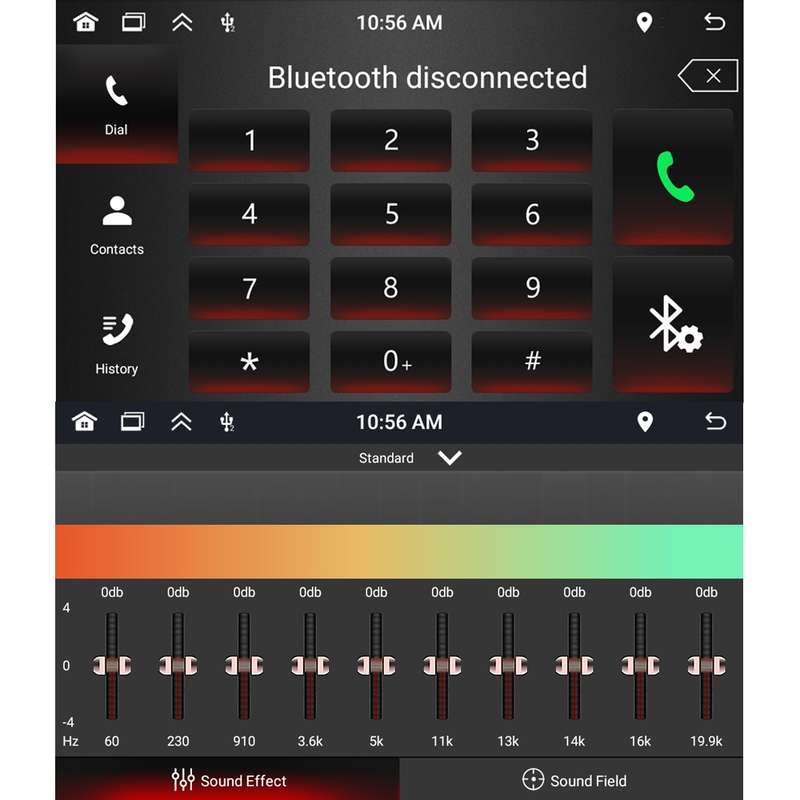

4. Bluetooth function
6. Rear view function (camera optional)
7. Video input function

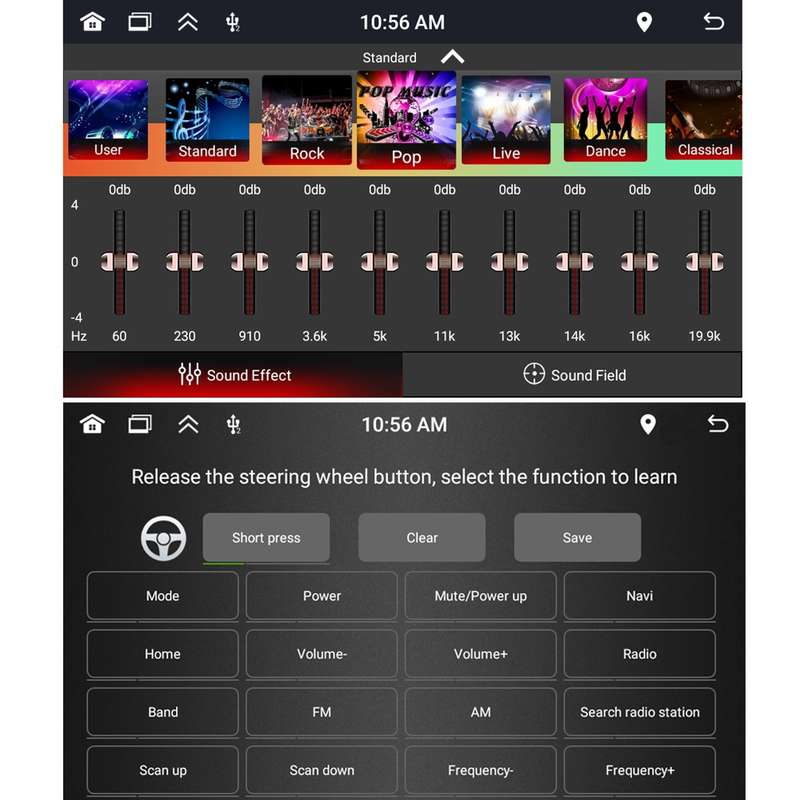

8. Original car steering wheel learning function
9. Android recorder can be installed (recorder optional)
10. WIFI Internet access
11. GPS navigation
12. RDS function, real-time traffic radio
13. APP can be installed
14. Wired + wireless Android auto, wired + wireless Apple carplay (wired carplay and Android Auto can only use 4P USB interface)
15. External microphone (external microphone optional)

Basic parameters
1. System: Android 13
2. Software solution: Fang Yitong UIS81411E
3. Radio frequency: FM 87.5~108.0MHz (can switch between Americas 1, Americas 2, China, Russia, Japan, and regional radio frequencies)
4. Radio chip: QN8035
5. Amplifier chip: YD7388
6. Output power: 60Wx4
7. Working voltage: 8~16.5V
8. Bluetooth version: version 5.1
9. Wi-Fi frequency: 2.4GHz, 5GHz
10. GPS signal: Beidou/GPS+GLONASS
11. Panel light: white light
12. Language parameters: Chinese/Traditional Chinese/English/Russian/Greek/Polish/Turkish/Arabic/Persian/Romanian/French/Hungarian/Italian/Thai/German/Ukrainian/Spanish/Portuguese/Czech/Vietnamese/Japanese/Malaysian/Dutch/Indonesian/Korean
13. Audio format: MP3/WMA/WAV/APE/FLAC/AAC/OGG/RM
14. Video format: MPEG/AVI/RM/FLV/ASF/WMV/MP4/MKV/OGM/TS/DivX/RMVB/VOB
15. Image format: JPG/BMP/PNG/JPEG/GIF
16. Factory password: 3368

Performance parameters
1. CPU: UIS81411E 4 core 1.3GHz x 4
2. Running memory: 2G
3. Storage memory: 32G, optional 64G
4. Display resolution: 1024x600 HD

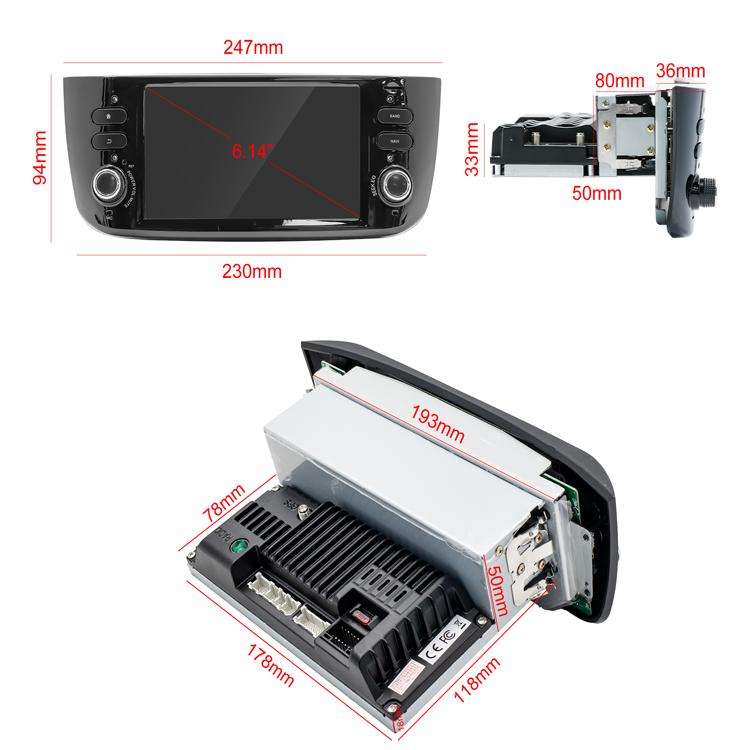

5. Screen size: 6.2 inches

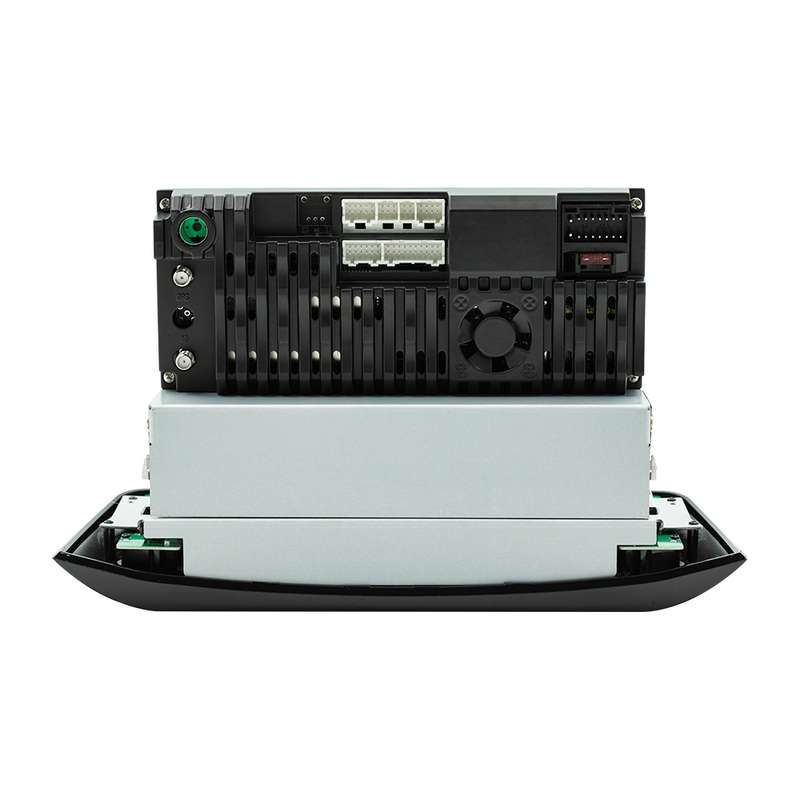

RCA port parameters
1. Audio output: 2 channels (left channel + right channel)
2. Audio input: 2 channels (left channel + right channel)
3. Video output: not supported
4. Video input: 2 channels
5. Reversing video input: 1 channel
6. Subwoofer output: 1 channel

Function parameters
1. Mobile phone interconnection: support
2. For Apple CarPlay: wired (support), wireless (support)
3. For Android Auto: wired (support), wireless (support)
4. For iPhone screen projection: wired (not supported), wireless (not supported)
5. For Android screen projection: wired (not supported), wireless (not supported)
6. Reversing image: support (480P/720P/1080P) (camera not included)
7. Play video warning: support
8. Steering wheel control: support button learning
9. USB interface: USB2.0x2 (4P 6P)
10. Driving recorder: support (USB signal input, optional recorder)
11. GPS: support
12. DAB: support external USB interface DAB box
13. Video input: not supported
14. External microphone: support
15. Reset button: support

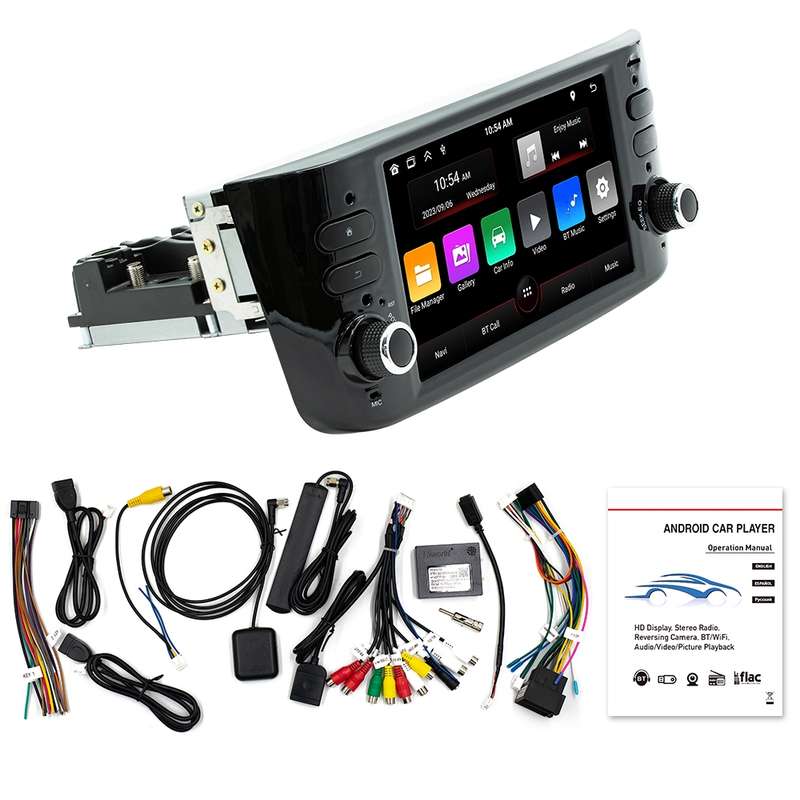

Packing list:
- Host
- Dedicated power cord
- Protocol box
- Radio antenna adapter
- 16P universal power cord
- GPS antenna
- Reversing video input cable
- RCA wiring harness
- USB cable x2 (4P 6P)
- Original car USB adapter cable (4P)
- Instruction manual
