1 Product Overview
This chassis is designed specifically for the MAC MINI M4, using environmentally friendly ABS material and manufactured through injection molding. The corners are rounded and smooth, combining aesthetics and practicality. Provide multiple color options (such as white, silver, black) to meet different aesthetic needs, providing protection for devices while adding a sense of fashion.
2 Specification parameters
Material: Environmentally friendly ABS

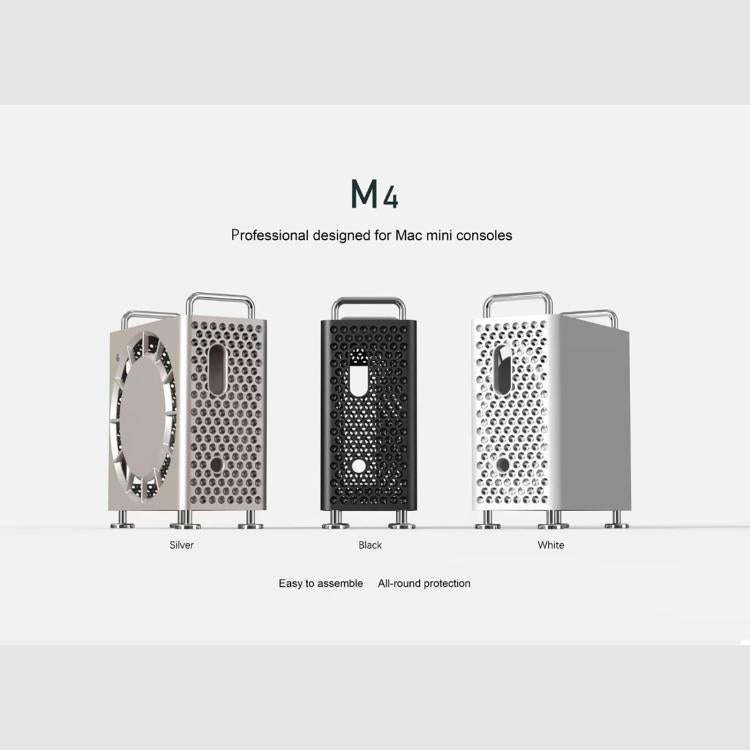

Color: White, Silver, Black (subject to actual style)
Process: Injection molding, fine surface treatment, outstanding texture.

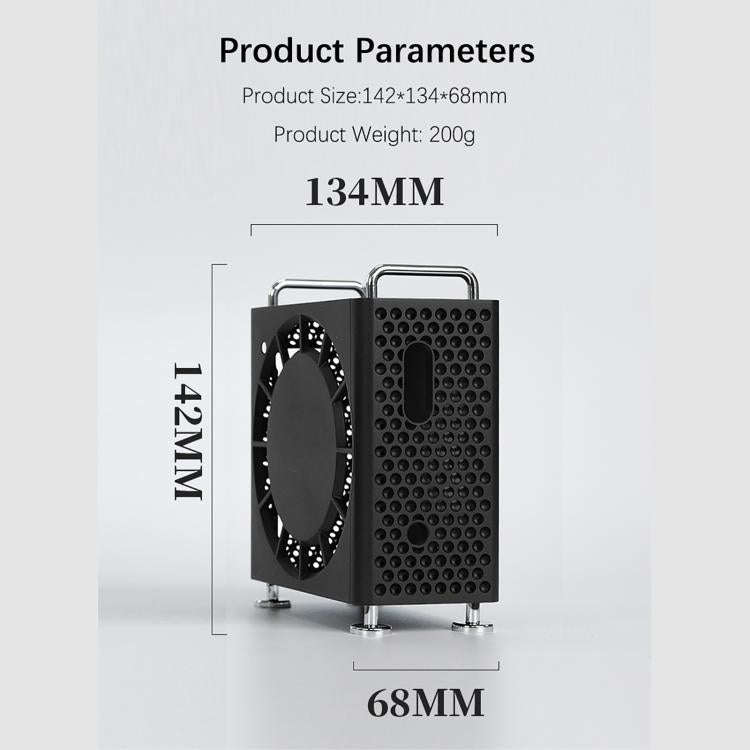

Size: 142 * 134 * 68MM
Weight: 200G

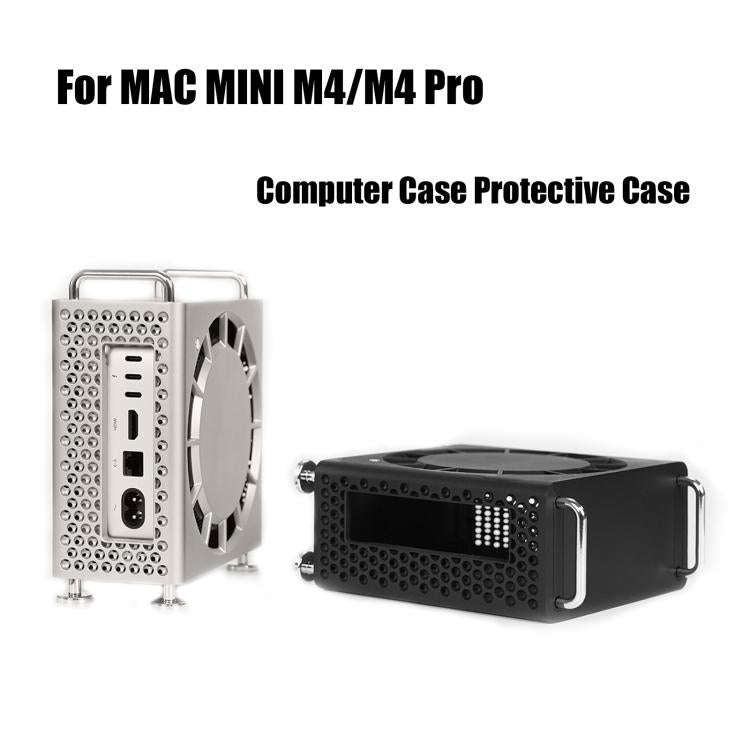

Applicable locations and models: MAC MINI M4/M4 Pro chassis (expandable hard drive)
3 Product Features

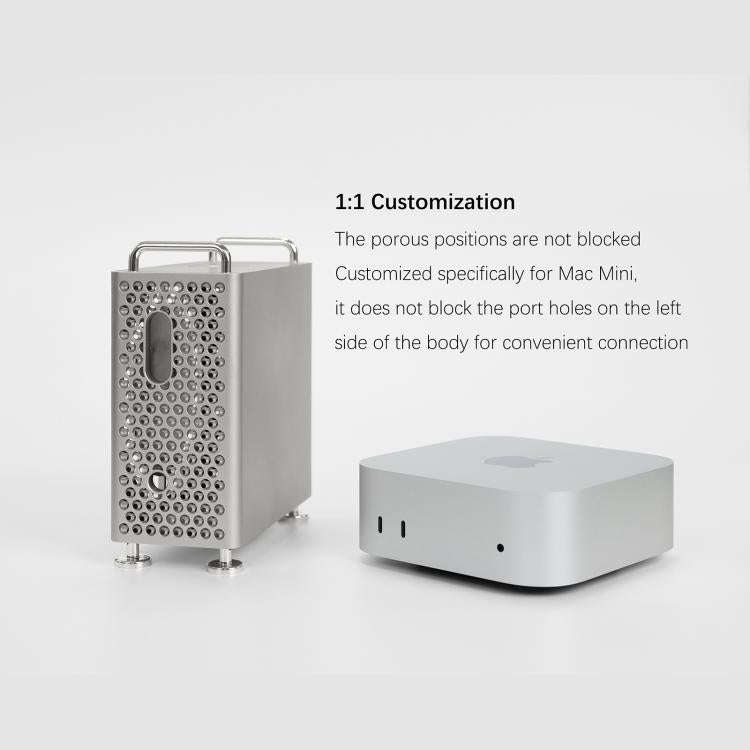

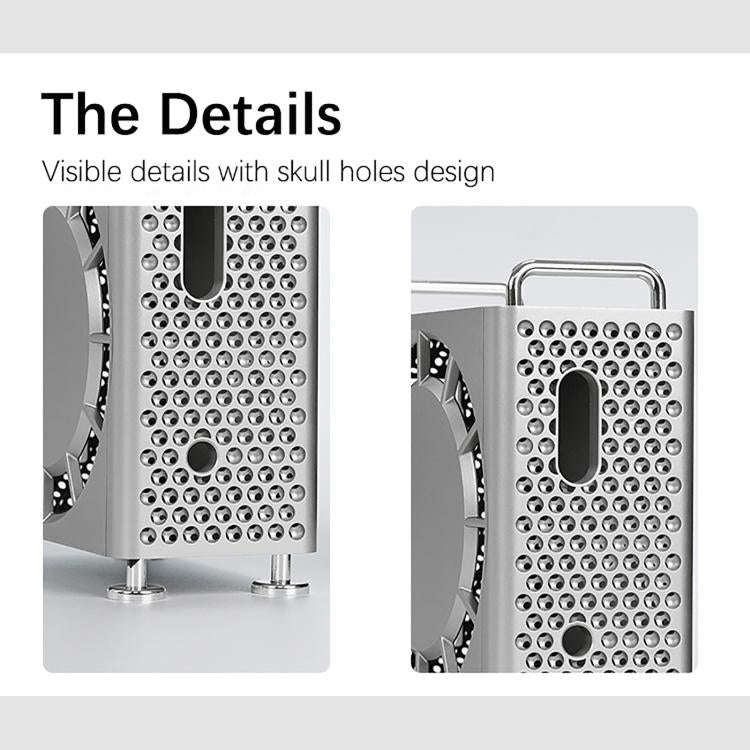

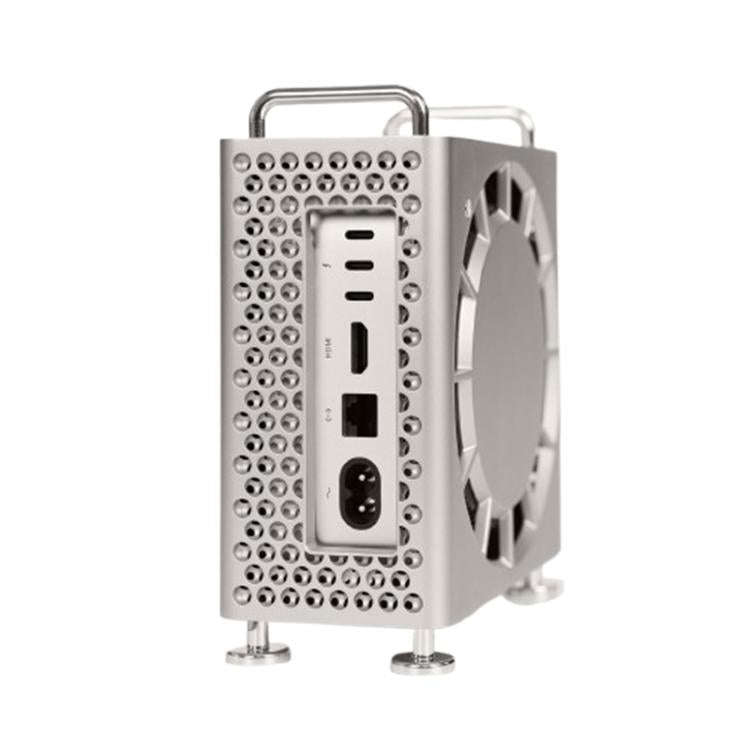

1. Appearance design: Almost 1:1 customized, with a perfect aspect ratio that fits the M4 machine, not easy to tilt, and also has the ability to expand the hard drive function on the side; The side hole porous design is not only aesthetically pleasing but also effectively prevents dust and debris from falling in; The square hole does not cover the left port of the body, making it convenient to connect external devices.

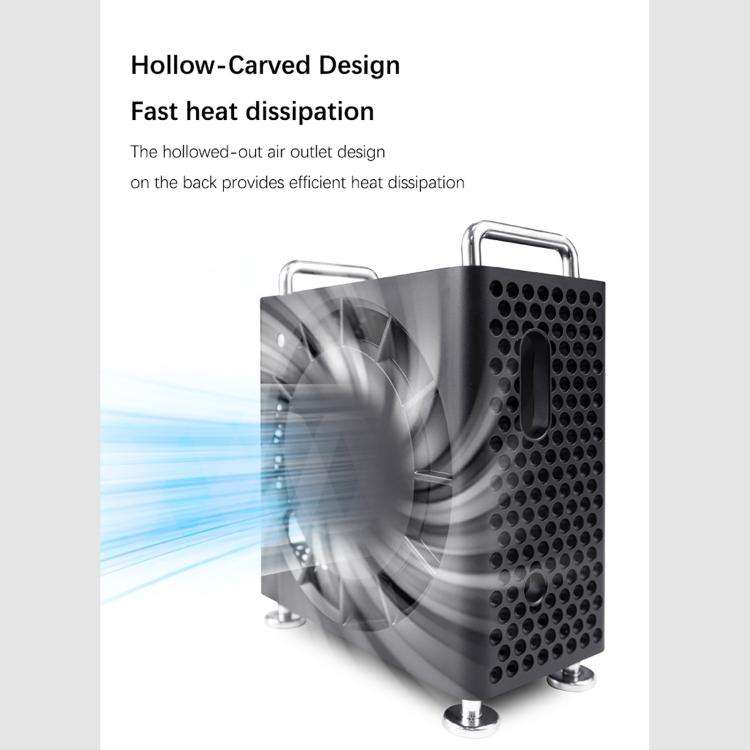

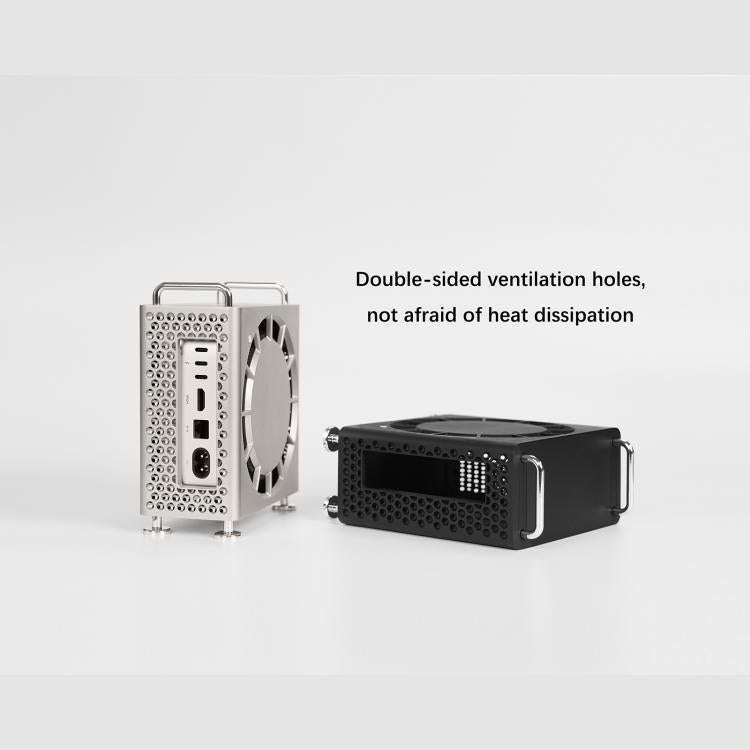

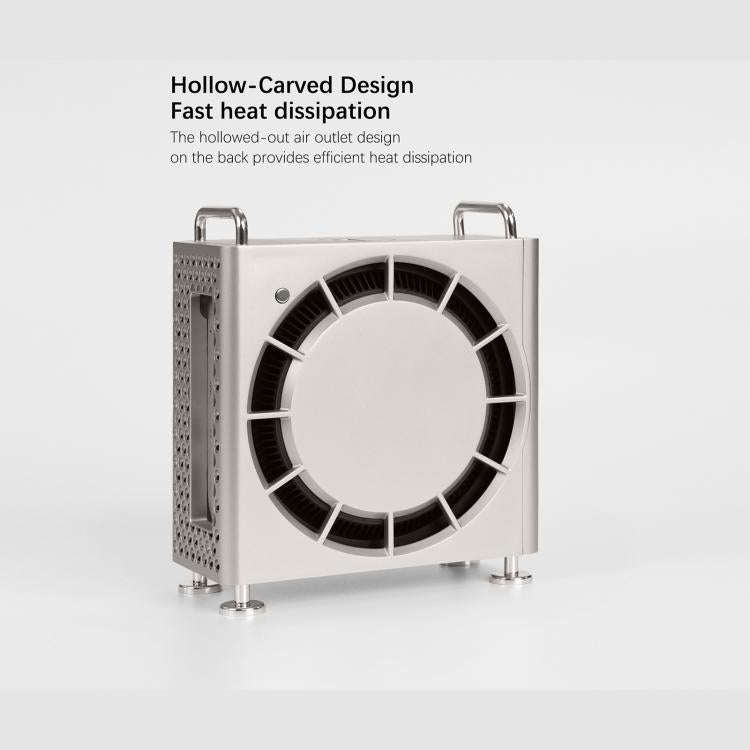

2. Efficient heat dissipation, double-sided air vent design, back hollow air outlet, ensuring smooth heat dissipation without affecting the performance of the host.

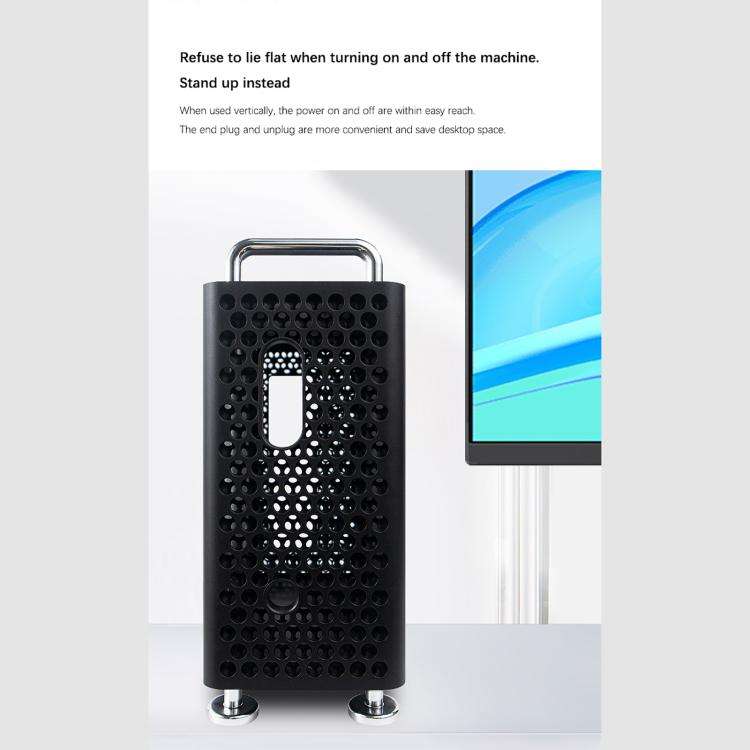

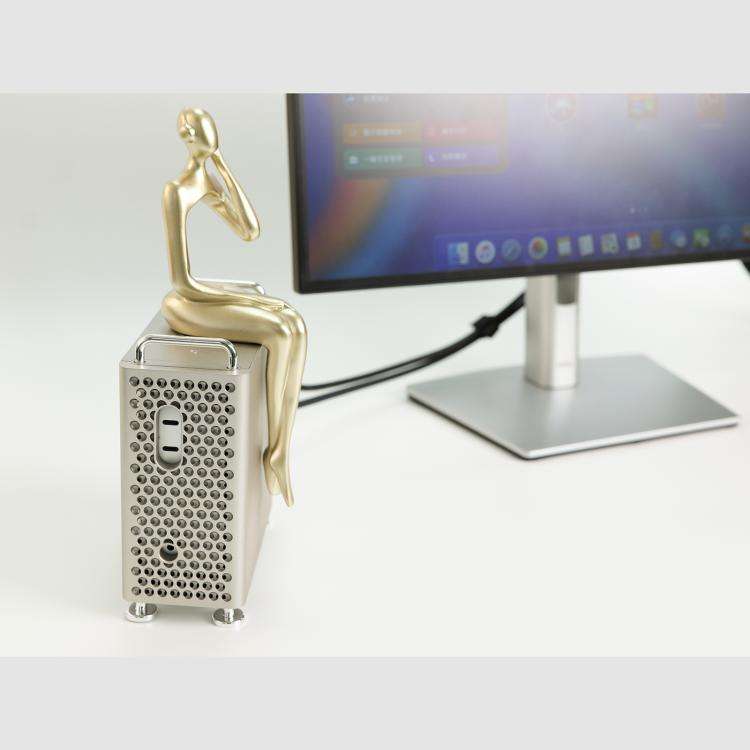

3. Convenient operation: Vertical use, easy to turn on and off, convenient port plugging and unplugging, saving desktop space; Equipped with an independent power on switch, it can be easily turned on with just one press.

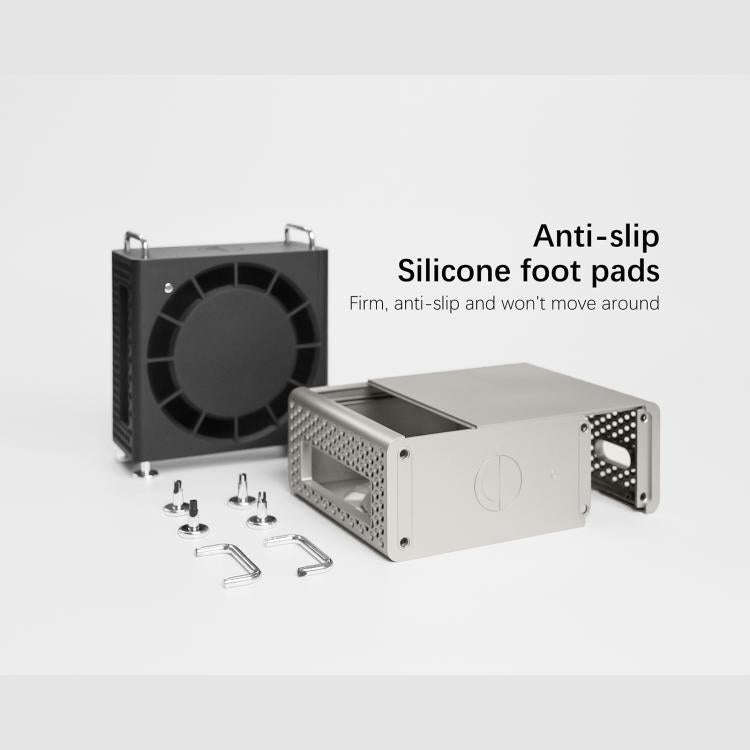

3. Thoughtful details: Silicone foot pads, sturdy and non slip, prevent equipment from sliding.
4. Material and craftsmanship: Made of environmentally friendly ABS material, available in multiple colors,; The electroplated parts adopt high-end technology with a built-in metallic feel; Manufacturing of shell injection molds, with rounded and smooth corners, good texture, and durability. The shell surface and electroplated parts are not easily faded, oxidized, or peeled.

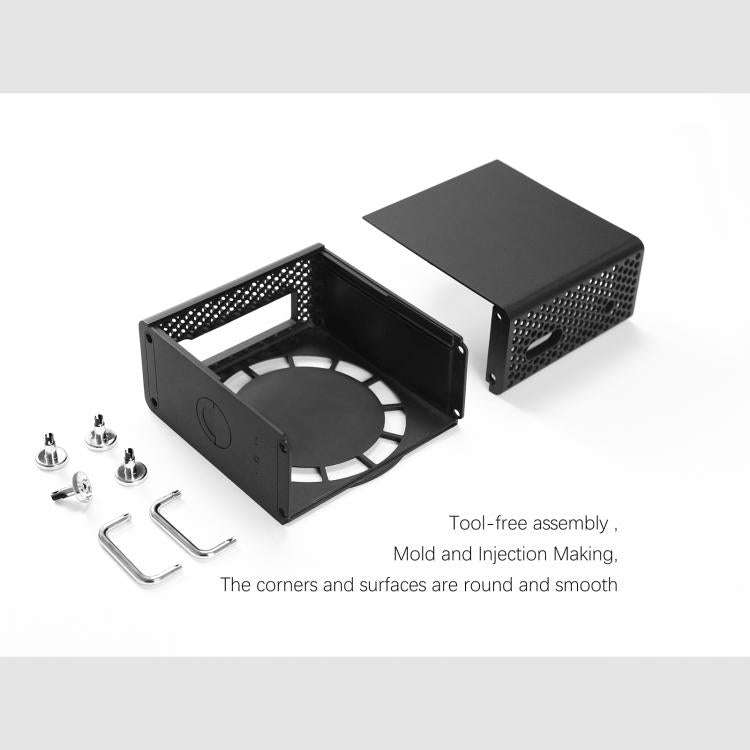

4 Installation and Disassembly Guide
Step 1: Insert the host into the chassis, paying attention to the correspondence between the buttons and the power button to ensure accurate installation.
Step 2: Close the side cover to ensure a tight fit with the main body of the chassis.
Step 3: Insert the handle at the top and the foot pad at the bottom to complete the installation.
Install TIPS: Insert the handle and foot pad directly into the hole without rotating the operation!
Dismantling TIPS: Gently pull vertically outward (if it feels tight during the initial disassembly, you can rotate it slightly and unscrew it out. The material has strong resistance and will not be damaged during normal use. If you encounter difficulties, you can contact after-sales for guidance).
5 Precautions
Avoid using sharp objects to scratch the surface of the chassis to prevent leaving marks; Keep the ventilation holes unobstructed to ensure effective heat dissipation.
Do not forcefully rotate or excessively bend during disassembly. Simply operate in the correct way to easily remove it.
6 Maintenance and upkeep
During daily cleaning, use a dry cloth to wipe away surface dust and keep the appearance of the chassis clean.
7 After sales service
If there are any quality issues with the product or any questions encountered during use, please contact customer service and we will promptly handle them to ensure worry free use.
Please read this manual carefully for the best user experience.
