In working order.
Check postage as these are big units.
1 foot missing
User friendly design with full graphic display (PD42) or simple one-button operation
Smart Printing capabilities support stand-alone printer applications, eliminating PC expense and complexity
All-in-one, user-selectable printer languages - Fingerprint/Direct Protocol (DP), IPL, ZSim, DSim and ESim - in every printer
The rugged PD printers deliver advanced, secure connectivity and the latest network protocols, ensuring peace-of-mind today and a reliable, scalable solution for the long haul. The versatile PD41 and PD42 Commercial Printers are part of Intermecs complete line of smart, strong and secure industrial printers.
Their integrated device management and diagnostic capabilities, provided through Intermec SmartSystemsTM and Wavelink AvalancheTM, reduce downtime and simplify deployment. With user-selectable, all-in- one programming languages (Fingerprint,
IPL, ZSim, DSim, ESim), the PD printers fit existing IT infrastructures, deploying with drop-in simplicity to Intermec or mixed printer environments. Secure, industry- standard connectivity options support easy integration and fast deployment.

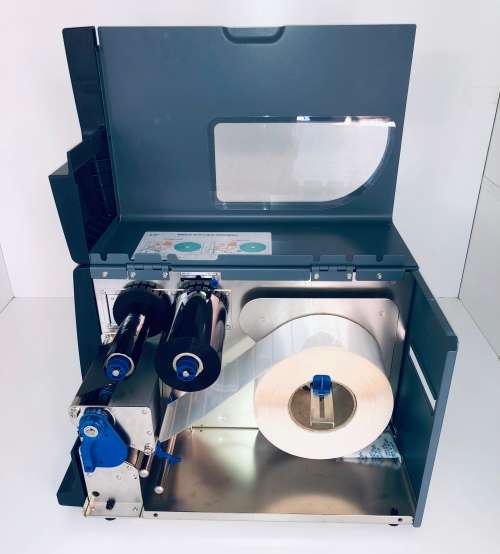

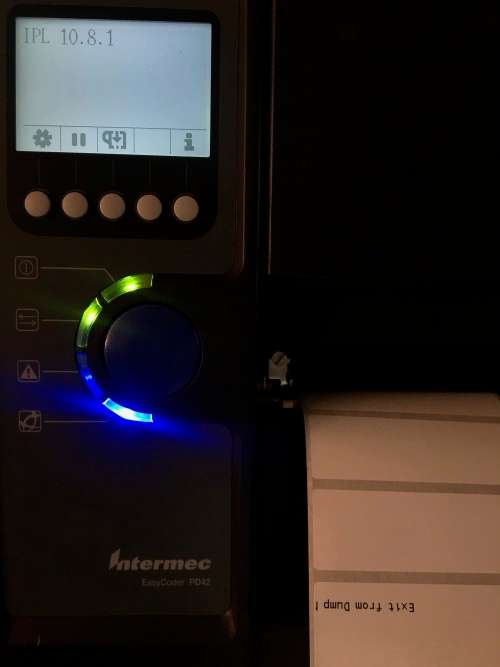

The PD42s graphical display allows users to set up, configure and fine tune printing parameters without having to send commands through the host, saving time. An open design makes media loading quick and easy, and the print head can easily be replaced without tools. The printers are co-engineered and tested with Intermec labels and other media products, ensuring optimized performance when used with genuine Intermec media.
Direct thermal and thermal transfer label, ticket and tag printers, with one-button user interface (PD41) or full graphic user interface (PD42).
Physical Characteristics
Print Specifications
Max. Width: 104 mm (4.09 in) at 203 dpi 105.7 mm (4.16 in) at 300 dpi Max. Length: 1520 mm (59.8 in) at 203 dpi 1028 mm (40.5 in) at 300 dpi
Print Speed
50-150 mm/s (2-6 ips) at 203 dpi 50-100 mm/s (2-4 ips) at 300 dpi
Print Resolution
8 dots/mm (203 dpi)
11.8 dots/mm (300 dpi, option)
Media
Type: Labels & Tags
Max Width: 118.1 mm (4.65 in)
Max Width with cutter: 114m (4.49 in)
Min Width: 25.4 mm (1 in)
Thickness: 2.3 to 9.8 mil
Configuration: Roll-fed, die-cut, continuous or fanfold Sensing: Gap, notch, black mark, continuous
Label Roll Max Diameter: 213 mm (8.38 in)
Label Roll Core: 38-76mm (1.5-3 in)
Type: Ribbons
Roll Max Diameter: 76 mm (2.99 in) or approx. 450m Core ID: 25.4 mm (1)
Type: Wax, mid-range, resin
Genuine Intermec Media: www.intermec.com/media Interfaces
Supported Protocols: TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP.SNMP-MIB II supported (over UDP/IP), private enterprise MIB included.
Supports IPv4 and IPv6
Standards Supported
UPC/EAN Shipping Container; UCC/EAN 128 Serial Shipping Container; MH10.8 Shipping Label; AIAG (shipping parts label); OGMARS; POSTNET; HIBCC; ISBT 128; GM1724; UPS shipping label; Global Transport label
