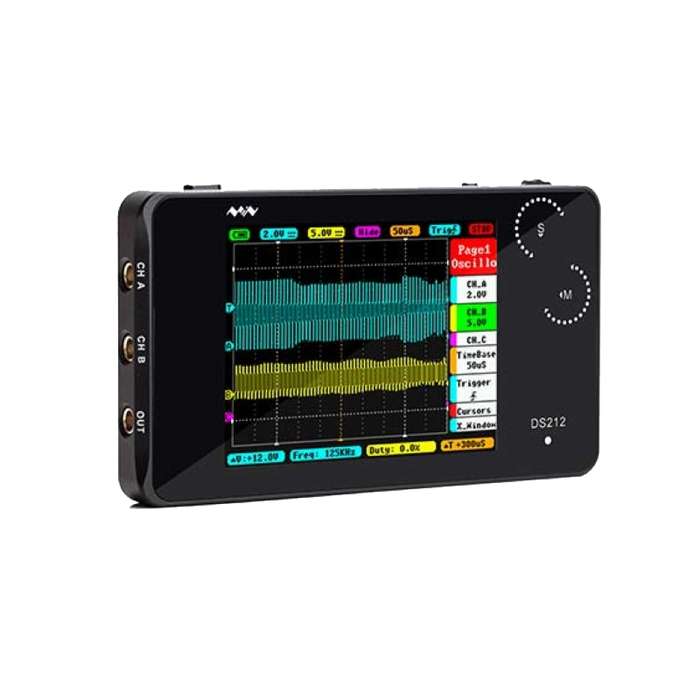

MINIWARE Dual Channel Mini Portable Handheld Digital Storage Oscilloscope, Model: DS212

1. Adopting high quality aluminum alloy, wear-resistant and corrosion-resistant, better hand feeling
2. Large-capacity lithium battery, ultra-long standby, worry-free use
3. STM32 chip, super performance, fast data processing
4. A variety of waveform measurement, to meet your different needs, measurement of ease of use

Parameters:
1. MCU: STM32F303VE
2. ADC: MCU internal ADC
3. Number of channels: 2 analog channels
4. Analog bandwidth: 1MHz
5. Sampling rate: up to 10MSa/s
6. Memory depth: up to 8K
7. Horizontal scanning speed: 1uS-2S
8. Vertical sensitivity: 20mv-10V
9. Input impedance: greater than 500 kOhm
10. Coupling method: DC/AC
11. Trigger type: rising edge, falling edge
12. Automatic adjustment mode: AUTO-FIT
13. Signal output: square wave, sine wave, triangle wave, sawtooth wave
14. Trigger mode: auto/normal/single/slow
15. Number of apps: 2
16. Storage: 8MB built-in U disk
17. Operation: key, encoder
18. USB interface: Micro-USB
19. Battery capacity: 500mAh
20. Standby time: 2-3 hours
21. Screen size: 2.8 inch
22. Screen resolution: 320 x 240
23. Main unit size: 100 x 56.5 x 10.7mm
24. Weight: 88g

Packing list:
- Main unit x 1
- Split probe x 1
- Hook x 1
- L-shaped hexagonal screwdriver x 1
- Instructions for use x 1
