Ford/Mazda Engine Timing Tool

Ford/Mazda Engine Timing Tool R1199



Ford Mazda 1.4 1.6 1.8 2.0 Engine Locking Timing Tool Kit (4234)



Condition: New

Suitable for a wide range of modern Ford vehicles.

Also suitable for some Mazda vehicles.

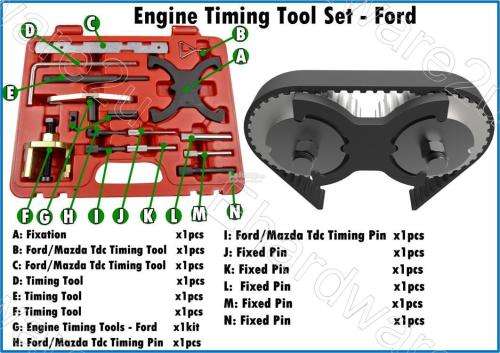

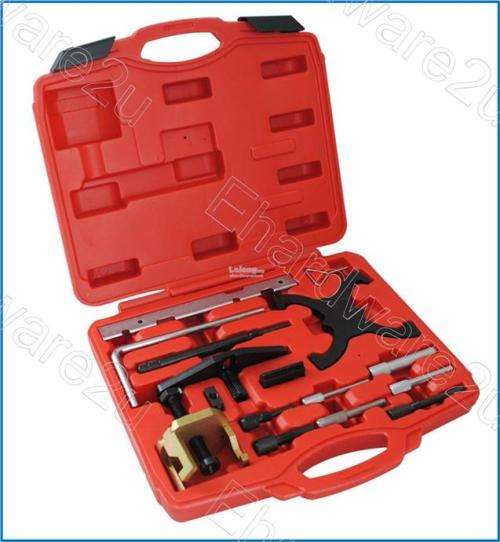

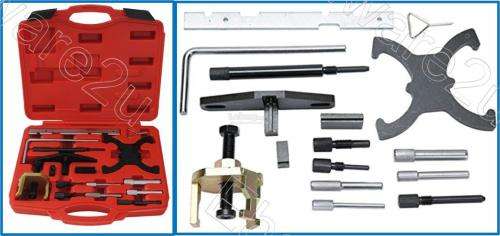

Kit consists of camshaft and flywheel locking tools, various timing pins plus a camshaft sprocket removal tool.

This comprehensive set of tools enables the correct engine timing to be made when replacing the timing belt.

Application:



Fiesta/Courier (00-00), Focus (98-00), Focus (04-08), Focus C-Max (03-08),Mondeo (07-08), Tourneo Connect (02-08), TransitConnect (02-08), Fusion (02-08), S-Max (06-08), Galaxy (06-08)

FORD Duratec petrol engine: 1.25, 1.4, 1.6, 1.7, 1.8, and 2.0 twin cam 16V.

FORD Duratorg diesel engine: 1.4, 1.6, 1.8, 2.0 TDCI.

MAZDA: PSA1.4, 1.6HDI engine.

Applications - Diesel:

Ford; 1.4, 1.6TDCi, 1.8DT/TDCi/TDdi, 2.0 TDCi - Courier (00-02),

Fiesta (02-09), C-Max (03-08), Focus (98-00), Fusion (02-08),

Galaxy (06-08), Mondeo (07-08), S-Max (06-08),

Tourneo Connect (02-08), Transit Connect (02-08)



Engine Codes - Diesel:



F6JA, F6JB, F6JC, HHJA, HHJB, G8DA, HHDA, HHDB, RTN, RTQ, RTP, C9DC, BHDA/B, BHPA, C9DA/B, C9DC, F9DA/B, FFBA, FFDA, HCPA, HCPB, KKDA, P7PA, P9PA, QYWA, R2PA, R3PA, RWPA, G6DA, G6DB, G6DC, AZWA, QXWA



Applications - Petrol:



Ford; Cougar 2.0 (98-01), Fiesta 1.25/1.4/1.6 (95-08),

Focus 1.4/1.6/1.8/2.0 (98-08), Focus 1.6Ti-VCT (04-09) HXDA,

Focus C-Max 1.8/2.0 (02-08), Fusion 1.25/1.4/1.6 (02-08),



Mondeo 1.8/2.0 (98-08), Puma 1.7 (97-02),

Tourneo Connect 1.8 (02-06), Transit Connect 1.8 (02-06)



Engine Codes - Petrol: AODA/B, ASDA, ASDB, CFBA, CGBA/B, CHBA/B, CJBA/B, CSDA/B, DHA, DHB, DHC, DHD, DHE, DHF, DHG, EDBB, EDBD, EDDB, EDDC, EDDD, EDDF, EYDB, EYDC, EYDD, EYDE, EYDF, EYDG, EYDI, EYDJ, EYPA, EYPC, F8JA, F8JB, FHA, FHD, FHE, FHF, FUJA, FUJB, FXDA/C, FXDB/D, FXJA, FXJB, FYDA/C, FYDB/D, FYJA, FYJB, HWDA, HWDB, L1F, L1J, L1L, L1N, L1Q, L1T, L1V, L1W, M7JA, M7JB, MHA, MHB, NGA, NGB, NGC, NGD, QQDA/B/C, QQDB, RKA, RKB, RKF, RKH, RKJ, RKK, HXDA.



OEM Tools:21-104/303 193, 21-162B/303 376, 21-163/303 620, 21-168/303 393, 21-210/303 507, 21-229/303 651, 21-260/303 732, 21-262/303 734, 21-263/303 735, 303 748, 303 1054, 303 1059, 303 109
