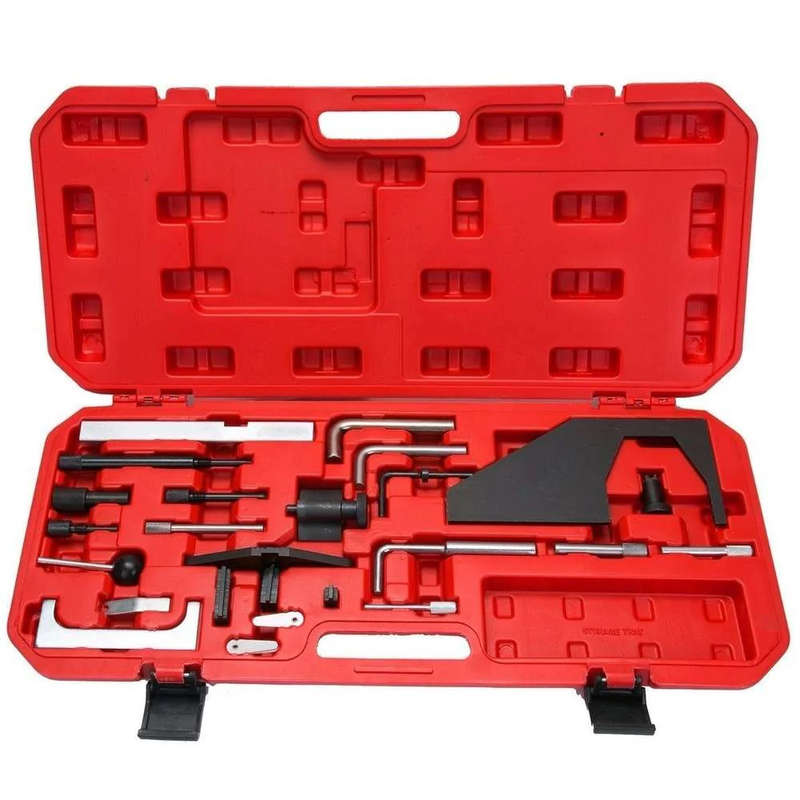

Ford/Mazda/Volvo Timing Tool Kit

Engine Timing Tool Set-Ford & Mazda

Used to Accurately Align a Datum Slot, Located in the end of the Camshaft, with the top Face of the Camshaft Housing to Hold the Camshaft at the (TDC) top dead Centre Position. Locking Pins are Designed to Pass  Datum Holes in the Timing Belt Pulleys Into Fixed Position Timing Holes on the Engine. The Crankshaft TDC Location Pin is Designed to Screw into the Cylinder Block and Provide a stop for the Crankshaft to be Positioned against to set the TDC Position. Crankshaft Locking Tools are used to soothe Crankshaft Timing Position During Both Removal and Replacement of the Timing Belt. Flywheel Locking Tool is Required on Engines where the Flywheel and Crankshaft Must be Held at the Correct Timing Position This Tool is used in Conjunction with the Appropriate TDC Setting Screw. A Special 4 Piece Kit Containing the Necessary Special Pins Required to Lock the Camshaft Sprocket,

Flywheel and Align the Crankshaft and Fuel Pump when Checking the Valve Timing on 2.0 & 2.4 Litre Chain Driven Engines and or Replacing the Timing Belt on 1.4  Litre Engines. Packaging: Blow Mould Case

Models:

• Ford Fiesta/Van (1984-2002)
• Ford Fiesta (1995-2008)
• Ford Escort/Orion (1984-1999)
• Ford Sierra (1990-1993)
• Ford P100 (1989-1994)
• Ford Courier/Kombi (1989-2002)
• Ford Fusion (2002-2008)
• Ford Puma (1997-2002)
• Ford Focus (1998-2008)
• Ford Focus C-Max (2003-2008)
• Ford Mondeo (1993-2008)
• Ford Cougar (1998-2001)
• Ford S-Max (2006-2008)
• Ford Galaxy (1995-2000)
• Ford Galaxy (2006-2008)
• Ford Courier (1995-2008)
• Ford Transit (1994-2000)
• Ford Tourneo Connect (2002-2008)
• Ford Transit Connect (2002-2008)

• Mazda 121 (1995-2000)
• Mazda 2 (2002-2007)
• Mazda 3 (2003-2006)
• Mazda 6 (2002-2007)
• Mazda Tribute (2001-2004)

• Volvo S40/V50 (2004-2008)

Engine Codes:

• Ford 1.25 16V (Belt): DHA, DHB DHC, DHE, DHD DHF, DHG F8JA, F8JB FUJA, FUJB M7JA, M7JB
• Ford 1.4 16V (Belt): ASDA, ASDB, FHA, FHD FHE, FHF FXDA/C FXDB/D FXJA, FXJB
• Ford 1.6 16V (Belt): FYDA/C, FYDB/D FYJA, FYJB, L1F L1J, L1L, L1N L1Q, L1T, L1V L1W, HWDAHWDB
• Ford 1.7 16V (Belt): MHA, MHB
• Ford 1.8 16V (Belt): EYDB, EYDC EYDD, EYDE EYDF, EYDG EYDI, EYDJ EYPA, EYPC RKA, RKB RKF, RKH,RKJ, RKK
• Ford 1.8 16V (Chain): CDBB, CGBA/B,CHBA/B, CSDA,CSDB, QQDA, QQDB, QQDC
• Ford 2.0 16V (Belt): EDBA/C, EDBB EDBD, EDDB EDDC, EDDD EDDF, NGA, NGB, NGC NGD
• Ford 2.0 RS/ST170 (Belt): ALDA, HMDA
• Ford 2.0 16V (Chain): AODA, AODB,AOWA, CJBA/B
• Ford 1.4 TDCi: F6JA, F6JB, F6JC
• Ford 1.6 D: LTA, LTB, LTC
• Ford 1.6 TDCi: HHJA, HHJB, G8DA, G8DA, HHDA, HHDB
• Ford 1.8 D/TD: RTA, RTB, RTC, RTD, RTE, RTF, RTG, RTH, RTJ, RTK, RVA, RFA, RFM, RFN
• Ford 1.8 D Turbo: RTN, RTQ, RTP, C9DC
• Ford 1.8 TDdi: BHDA/B, BHPA, C9DA/B, C9DC
• Ford 1.8 TDCi: F9DA/B, FFBA, FFDA, HCPA, HCPB, KKDA, P7PA, P9PA, QYWA, R2PA, R3PA, RWPA
• Ford 1.9 D: IZ, AFN, AHN, AVG
• Ford 1.9 TDi: 1Z, AFN, AHU, AVG
• Ford 2.0 TDCi: G6DA, AZWA, G6DB, QXWA, G6DC
• Ford 2.5D/T/TCi: 4FA, 4FB, 4FC, 4FD, 4HB, 4HC, 4EB, 4EC, 4GA, 4GB, 4GC, 4GD, 4GE, 4GF, 4HA, 4HD, 4ED

• Mazda 1.25 16V: DHA, FUJA, FUJB
• Mazda 1.4 16V: FXJA, FXJB
• Mazda 1.6 16V: FYJA
• Mazda 1.8 16V: L8
• Mazda 2.0 16V: LF, YF
• Mazda 2.3 16V: L3

• Volvo: B4164S3

Content:

• OEM: 23-019, T20102, 3359, 310-084, 23-058, 310-085, 23-059, 21-105, T10008, 2065A, U40021, 23-047, 2064, U20003, 21-260, 21-251, 0132AB, 21-263, 303-735, 0194B, 49 JE 02 021, 303-1061, 303-1060, 21-234, 21-251, 21-262, 303-734, 0194C, 49 JE 02 020, 21-163, 303-620, 21-210, 21-104, 303-193, 23-020, 21-123, 21-168, 303-393/01/02, 21-162B, 303-376, 303-367, 23-029, 23-019
