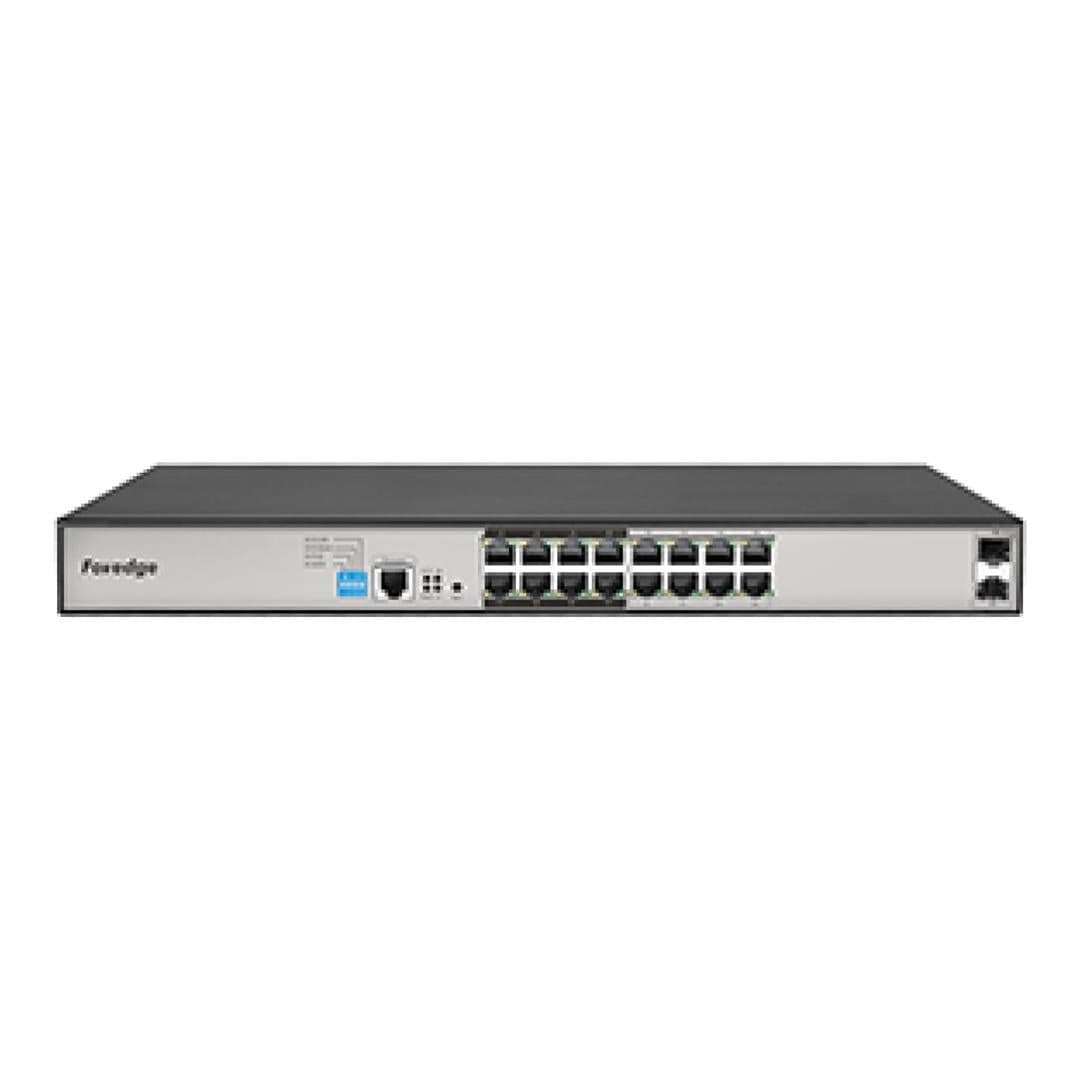

Foredge 16-port Gigabit Layer2 PoE Managed Switch
The product adopts a new generation of high-performance hardware and software platforms, providing flexible and cost-effective full gigabit access and uplink ports
Features:
- 16 10/100/1000Mbps RJ45 ports (POE), 2 Gigabit SFP fiber optic ports
- Supports SNMP, RMON, Syslog, USB features, as well as multiple management methods such as CLI, web management, and Telnet, making it easy to maintain
- Hardware level multiple protection ensures continuous operation of equipment and stable network without disconnection
- Supports one-stop management on the Apollo cloud platform
Technical Specifications:
Networking Interface
- 16 x 10/100/1000 Mbps RJ45 ports (PoE)
- 2 x SFP ports
- 1 x Console port
Network Protocols
IEEE 802.3, 802.3i, 802.3u, 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at
Performance
Bandwidth: 36 Gbps
Packet forwarding rate: 26.8 Mpps
MAC table size: 8K
Forwarding type: Storage and forwarding
LED Indicators
- 18 x Link/Act indicators
- 16 x PoE indicators
- 1 x Power indicator
- 1 x SYS indicator
PoE
Pin assignment: 1/2 (+), 3/6 (—)
Maximum power per port: 30 W
Total PoE budget: 150 W
Power Supply
Input: AC 100—240 V, 50/60 Hz
Dimensions
440 mm x 180 mm x 44 mm
Environment
Operating temperature: 0 °C to 40 °C
Storage temperature: —40 °C to 70 °C
Operating humidity: 10%—90% RH (non-condensing)
Storage humidity: 5%—90% RH (non-condensing)
Safety Regulations
CE, RoHS, FCC
VLAN
Supports 4K VLANs
Supports 802.1Q VLAN, MAC VLAN, IP VLAN
DHCP
Supports DHCP Snooping
MAC Address Table
IEEE 802.1d standard
Supports auto learning and aging
Supports static, dynamic, and filtering entries
Security Features
Password protection
User access restriction by port, IP address, or MAC address
HTTPS, SSL V3, TLS V1, SSH V1/V2
IP—MAC—PORT binding
ARP protection, IP source protection, DoS protection
DHCP Snooping and DHCP attack protection
802.1X authentication, AAA
Port security and isolation
CPU protection
PoE Management
PoE power limit
PoE chip status check
PoE port priority
PoE scheduling by time period
Intelligent power supply
ACL
Supports Layer 2 to Layer 4 packet filtering
Supports port mirroring, flow rate limiting, QoS remarking
QoS
Supports 8 port queues
Supports port priority, 802.1P priority, DSCP priority
SP, WRR, SP+WRR, WFQ scheduling algorithms
Spanning Tree
STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s)
Loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering
Optical port 50 ms switching
Multicast
IGMP Snooping v1/v2/v3
MLD Snooping v1/v2
Fast leave mechanism
Layer 2 IPv4 static multicast
Layer 2 IPv6 static multicast
Storm Suppression
Multicast suppression
Broadcast suppression
Unknown unicast suppression
Link Aggregation
Static and dynamic aggregation
Load balancing by IP, MAC, or mixed mode
Supports up to 32 aggregation groups
IPv6
IPv6 Ping, IPv6 Tracert, IPv6 Telnet
IPv6 SSH, IPv6 SSL
Management and Maintenance
Web management (HTTP, HTTPS, SSL V3)
CLI management (Telnet, SSH V1/V2, Console port)
SNMP V1/V2/V3
RMON V1/V2
LLDP device discovery
NTP time synchronization
DNS client
CPU and memory monitoring
System log with graded warning
Ping and Tracert detection
Cable detection
Apollo cloud platform management and maintenance
