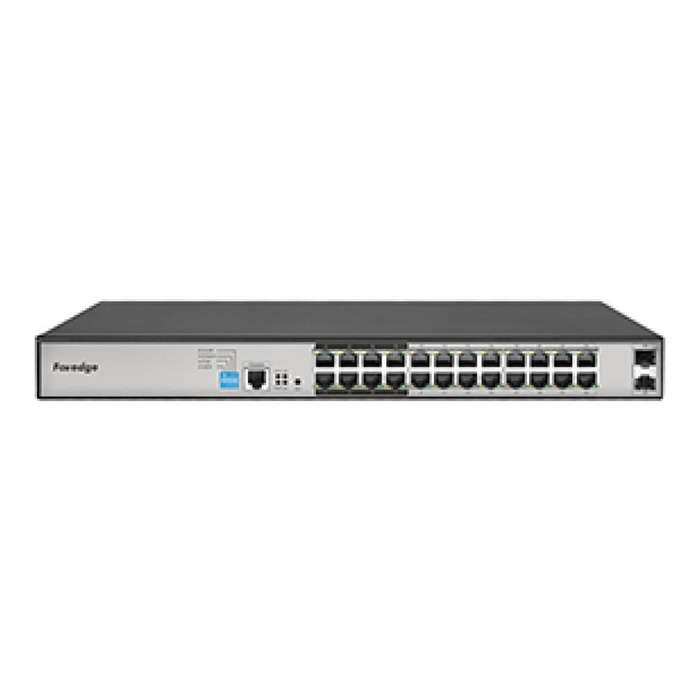

Foredge PS3024GS Full Gigabit Layer 2 PoE Managed Switch

Provides flexible and cost — effective access and Gigabit uplink ports,supports complete security protection mechanisms, complete ACL/QoS policies and rich VLAN functions.

Features:

• 24 10/100/1000Mbps RJ45 ports (POE), 2 Gigabit SFP fiber optic ports

• Supports SNMP, RMON, Syslog, USB features, as well as multiple management methods such as CLI, web management, and Telnet, making it easy to maintain

• Hardware level multiple protection ensures continuous operation of equipment and stable network without disconnection

• Supports one-stop management on the Apollo cloud platform

Technical Specifications:

Network Protocol Standards

• IEEE 802.3
• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z
• IEEE 802.3ad
• IEEE 802.3x
• IEEE 802.3af/at
• IEEE 802.1p
• IEEE 802.1q
• IEEE 802.1w
• IEEE 802.1d
• IEEE 802.1s

Fixed Ports

• 24 × Gigabit PoE ports
• 2 × Gigabit SFP ports
• 1 × Console port (baud rate 115200)

Performance Specifications

• Forwarding mode: Store and forward
• MAC address table: 8K
• Port cache: 4.1Mb
• Bandwidth: 52Gbps
• Packet forwarding rate: 38.7Mpps

PoE Power

• PoE Standard: IEEE 802.3af / IEEE 802.3at
• PoE Pin: 1/2(+) , 3/6(-)
• Port maximum power supply: 30W
• Maximum power supply of the whole machine: 250W
• Input power: AC 100—240V, 50/60Hz

Physical Specifications

• Dimensions (L × W × H): 440 × 180 × 44 mm

Environment

• Operating temperature: 0⃠~ 40âƒ
• Operating humidity: 10% ~ 90% RH (non-condensing)
• Storage temperature: -40⃠~ 70âƒ
• Storage humidity: 5% ~ 90% RH (non-condensing)

Software Specifications

VLAN

• Supports 4K VLANs
• Supports 802.1Q VLAN, MAC VLAN, IP VLAN

DHCP

• Supports DHCP Snooping

MAC Address Table

• Complies with IEEE 802.1d standard
• Supports automatic learning and aging
• Supports static, dynamic, and filtering address table

Security Features

• Password protection
• Restrict user access (by port number, IP, MAC address)
• HTTPS, SSL V3, TLS V1, SSH V1/V2
• IP-MAC-PORT ternary binding
• ARP protection, IP source protection, DoS protection
• DHCP Snooping, DHCP attack protection
• 802.1X authentication, AAA
• Port security, port isolation, CPU protection

PoE Management

• PoE power limit
• PoE chip status check
• Port priority configuration
• PoE power supply time period setting
• Intelligent power supply

ACL

• Supports L2 ~ L4 packet filtering
• Port mirroring, flow rate limiting, QoS remarking

QoS

• 8 port queues
• Supports port priority, 802.1P priority, DSCP priority
• Supports SP, WRR, SP+WRR, WFQ scheduling

Spanning Tree

• Supports STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s)
• Supports loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering
• Optical port switching 50ms

Multicast

• IGMP v1/v2/v3 Snooping
• MLD v1/v2 Snooping
• Fast leave mechanism and querier support
• Supports Layer 2 IPv4/IPv6 static multicast

Storm Suppression

• Multicast suppression
• Broadcast suppression
• Unknown unicast suppression

Link Aggregation

• Supports static and dynamic aggregation
• Supports IP, MAC, mixed load balancing
• Up to 32 aggregation groups

IPv6

• IPv6 Ping, Tracert, Telnet
• IPv6 SSH, IPv6 SSL

Management & Maintenance

• WEB management (HTTP, HTTPS, SSL V3)
• CLI (Telnet, SSH V1/V2, Local Console port)
• SNMP V1/V2/V3
• RMON V1/V2
• LLDP device discovery
• NTP time synchronization
• DNS Client
• CPU & memory monitoring
• System log & graded warnings
• Ping, Tracert, cable detection
• Apollo cloud platform one-stop management & maintenance
