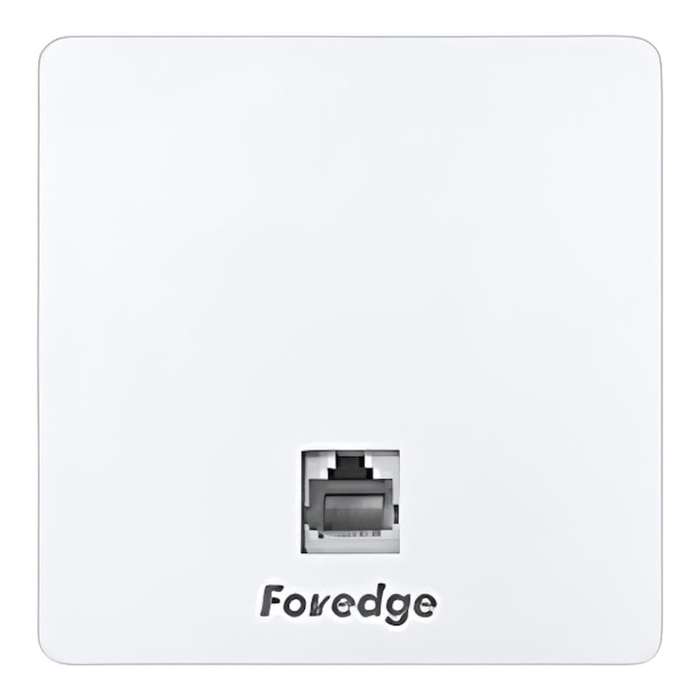

Foredge W60HAP Wi-Fi 6 3000M Dual-band Panel Access Point

W60HAP V4 Wi-Fi6 3000M dual-band panel AP is a high-performance panel AP specially launched by Foredge for small and medium-sized offices, hotels, and dormitories.

Features:

• Flash: SPI NOR 128MB
• port：1 WAN+1 LAN full gigabit network port
• Working Humidity：10%~ 90% RH nun-condensing
• Dimensions (W × D × H)：86mm*86mm*44mm(Height of the outer wall part: 14mm)

Technical Specifications:

Flash: SPI Nand 128MB

DDR: 256MB

Wi-Fi Antenna: Built-in dual-band 2.4G & 5G

2.4G Frequency Band: 2.4—2.484GHz

2.4G Protocol: 802.11 b/g/n/ax

5G Frequency Band: 5.150—5.850GHz

5G Protocol: 802.11 a/n/ac/ax

Maximum Rate: 2.4G: 574Mbps, 5G: 2402Mbps

Maximum Supported Wireless Access: 128+

2.4G Wireless Power:

• 802.11b/g/n/ax: 13—20dBm depending on MCS/HT

5G Wireless Power:

• 802.11a/n/ac/ax: 12—17dBm depending on MCS/HT

2.4G Sensitivity: -83 to -56dBm depending on protocol

5G Sensitivity: -85 to -53dBm depending on protocol

2.4G EVM: -10 to -35 dB depending on standard

5G EVM: -25 to -35 dB depending on standard

Frequency Deviation: ±20 ppm

Interface (WAN): 1×10/100/1000Mbps adaptive WAN, supports PoE 48V

Interface (LAN): 1×10/100/1000Mbps adaptive LAN

External Buttons: Reset (6—10s for factory default)

Power: PoE 802.3af, max consumption <15W

Status Indicator: SYS light (blue: 5G, green: 2.4G, red: startup)

Product Size: 86 × 86 × 44 mm (wall height 14 mm)

Weight: ~0.215 kg

Operating Environment: -10°C to 40°C; Storage: -40°C to 70°C; Humidity: 5—95% non-condensing
