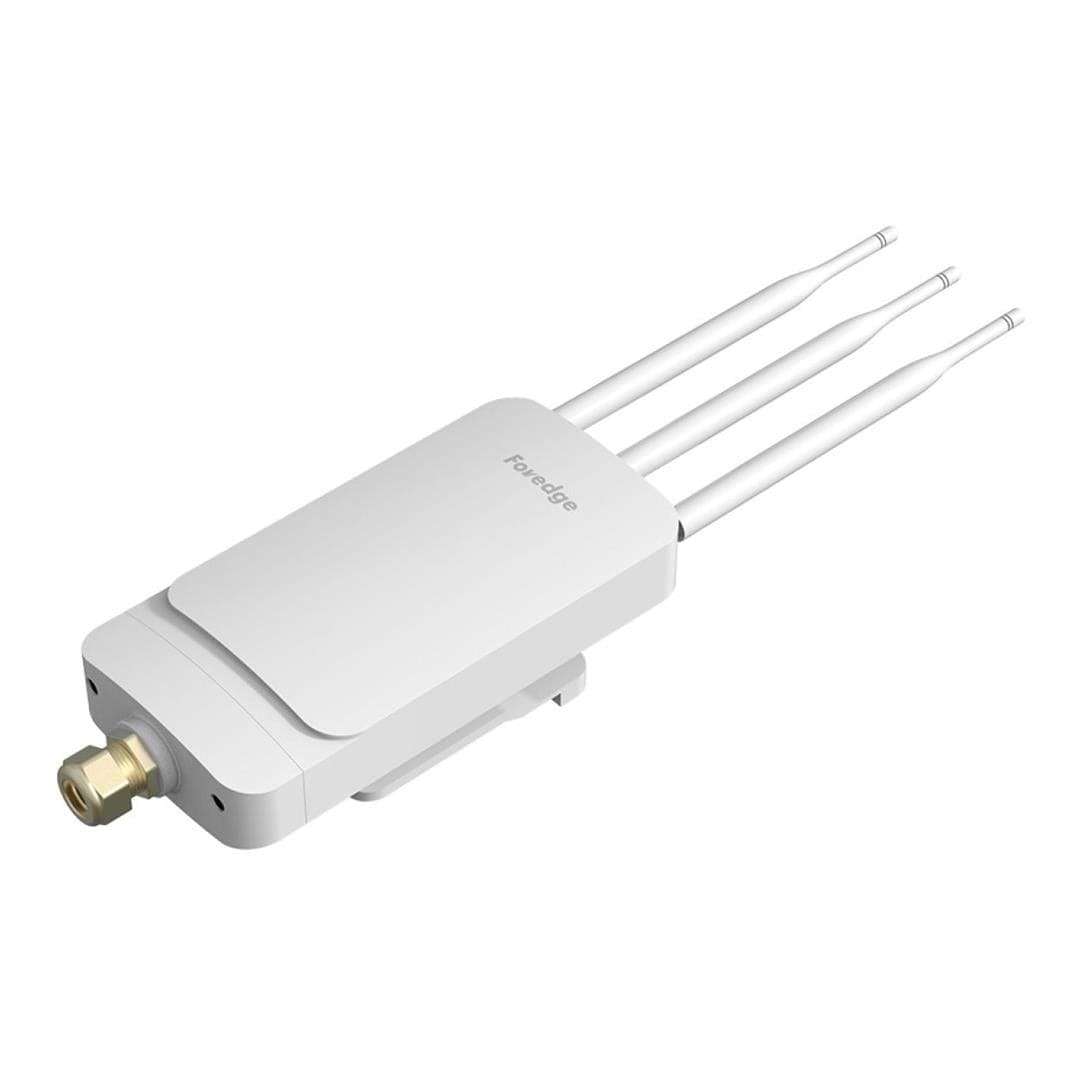

Foredge W668OHAP Outdoor Dual-Band AX3000 Wi-Fi 6 Wireless Access Point

W668OHAP V2 outdoor AP is recommended to be deployed in outdoor environments such as campus playgrounds, commercial plazas, wireless cities, and tourist attractions.

Features:

• Flash: SPI NAND 128MB
• Port：1*2500Mbps WAN adaptive network port + 1*1000Mbps LAN adaptive network port
• Working Humidity：10%~ 90% RH nun-condensing
• Dimensions (W × D × H)：243*105.5*68.5mm(including bracket)

Technical Specifications:

Hardware
Flash: 128 MB SPI NAND
DDR: 256 MB
WAN: 1 × 10/100/1000/2500 Mbps (PoE 48V)
LAN: 1 × 10/100/1000 Mbps
Buttons: Reset (6—10 s for factory reset)
Indicators: Tri-color LED (SYS-red, 2.4G-green, 5.8G-blue)
Power: PoE 802.3at / DC 12V 1.5A
Max Power Consumption: < 15 W
Size: 243 × 105.5 × 68.5 mm (with bracket)
Weight: ~1.6 kg

Wireless
2.4 GHz Band: 802.11 b/g/n/ax (max 574 Mbps)
5 GHz Band: 802.11 a/n/ac/ax (max 2402 Mbps)
Antennas: 2 external dual-band (2.4G+5G), 1 external 5G
Tx Power (2.4G): up to 27 dBm
Tx Power (5G): up to 27 dBm
Rx Sensitivity (2.4G): up to —96 dBm
Rx Sensitivity (5G): up to —92 dBm
EVM: 2.4G —35 dB, 5G —35 dB
Frequency Deviation: ±20 ppm

Environment & Protection
Operating Temp: —20°C to +55°C
Storage Temp: —40°C to +70°C
Humidity: 5%—95% (non-condensing)
Ingress Protection: IP67
