Surplus from a completed/old project.
Description

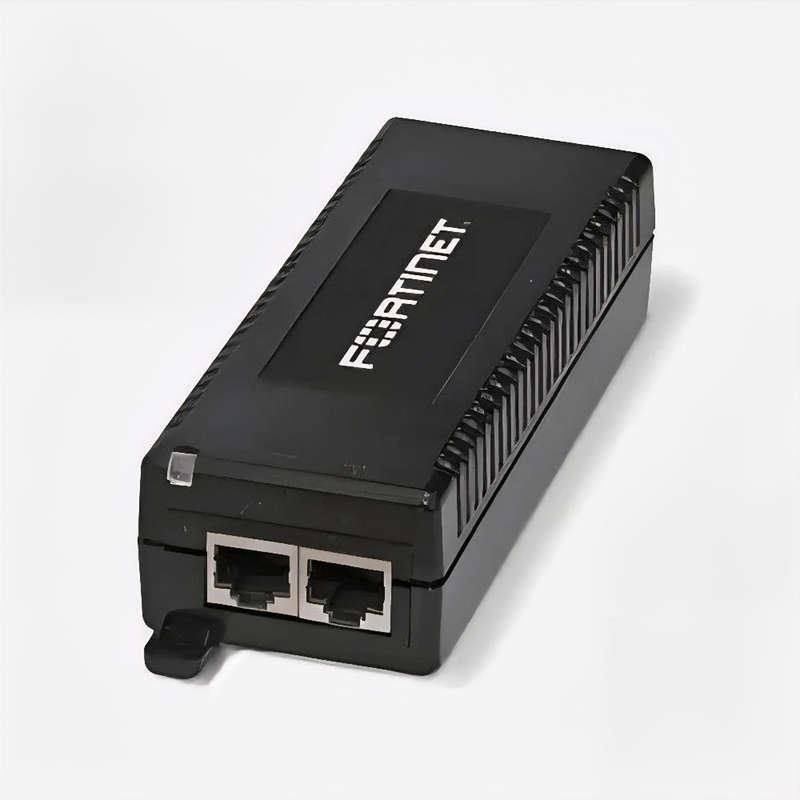

Fortinet 1-port Gigabit PoE Power Injector
The single-port GPI-130 Power over Ethernet (PoE) injector offer a compact and cost-effective, fully IEEE 802.3af/802.3at-compliant solution to power FortiAP wireless access points and other compliant devices. They deliver single-port, mid-span, with 15.4/30 Watts of Gigabit Ethernet (GE) PoE, giving you maximum deployment flexibility. The Advantage of Mid-Span Power The mid-span injector works with legacy network devices and thus eliminates the need to forklift upgrade installed switches. Moreover, they operate in High Availability configuration by connecting to an existing Ethernet switch Uninterruptable Power Supply (UPS) or alternatively to its own dedicated UPS. Remote Power Wireless LAN Access Points A PoE injector makes installing FortiAP access points easy and economical. It allows you to place the FortiAP access point at its optimal location by eliminating the need for an AC power outlet in a ceiling or wall. The device injects DC power directly into the same GE cable that carries the Ethernet traffic, avoiding the installation of additional cabling.With the device, you have the freedom to deploy Fortinets secure wireless solution anywhere in your facility. It allows you to take advantage of the wireless controller feature in every FortiGate® consolidated security platform. Its plug-and-play capabilities enable rapid deployment of your wireless infrastructure, accelerating the deployment of secure wireless access.
802.3at up to 30W for the GPI-130 Gigabit PoE Injector
Technical Specification
Product: Fortinet 1-Port Gigabit PoE Power Injector
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3at
Maximum operating distance: 100 m
Power over Ethernet (PoE) voltage: 55 V
AC adapter input voltage: 100 - 240 V
AC adapter frequency: 50/60 Hz
Caution: Do not connect a cross-over Ethernet cable to this device. Doing so could cause dangerous overloads or shortcircuits as well as physically damaging both the PoE Injector and your device. Do not cover or block airflow to the device with any other objects. Keep the unit away from excessive heat, moisture and humidity. Ensure the unit remains free from vibration and dust. Ensure the length of the Ethernet cable from the PoE Injector to the powered device does not exceed 100m (330 ft.). The PoE Injector does not function as an Ethernet repeater and will not amplify the data signal. There is no power switch on this unit - simply plug the unit into any AC power source.
