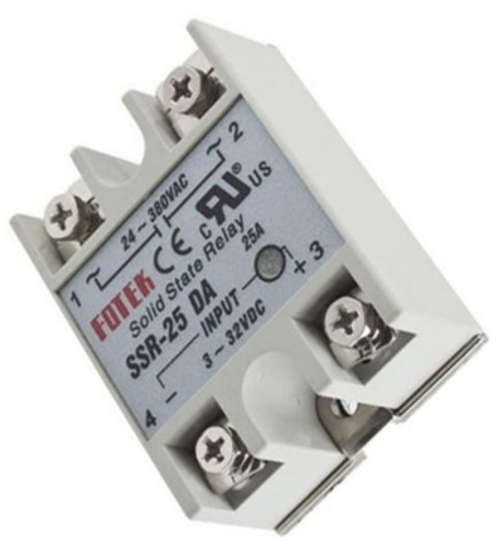

FOTEK 24V 380VAC / 25A SOLID STATE RELAY
Product information

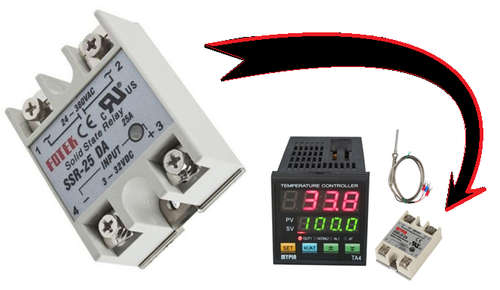

This brand new high quality Solid State Relay can be used to control oven or geyser heating elements. This relay is commonly used in conjunction with the 0 – 800 deg. C type K thermocouple probe and PID controller (shown above). The Long service life, high reliability Solid State Relay features fast switching times and reduced EMI. Common uses include conversion of toaster ovens to precision controlled SMT reflow ovens. See https://github.com/0xPIT/reflowOvenController
Note! PID temperature controller and K-type thermocouple probe used for illustration only and are not included.
Specifications
Model No: SSR-25DA
Input voltage: 3-32V DC
Output voltage: 24-380V AC Output current: 25A
Working voltage: 250V AC
Control Method: DC to AC.
Relay On voltage: ≤1V
On-off Time: ≤10ms
Off leakage Current: ≤2mA
Mounting Method: Bolts fixed.
Size: 64 x 45 x 23mm
Weight: 85g
Package Includes
1 x FOTEK 24V-380VAC / 25A Solid State Relay
