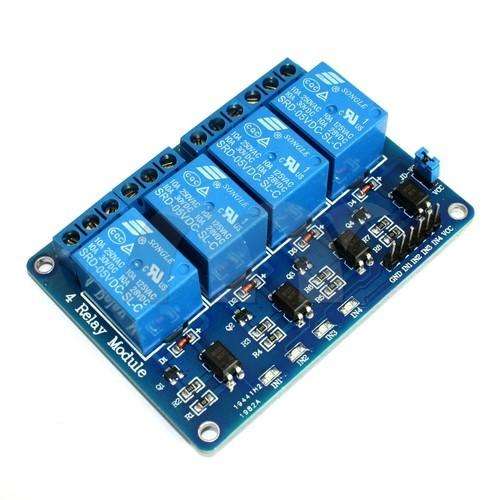

FOUR CHANNEL 5V DC RELAY MODULE
Product information
This is a four channel 5V DC relay module with active low. It can be controlled by variety of microcontrollers such as Arduino, Raspberry Pi, PIC, DSP, AVR or ARM etc.
Has the ability to control four separate appliances or pieces of equipment
Four on-board optoisolators enable direct interfacing to microcontrollers
Four red LED status lights on-board show relay activity
Widely used in PLC control or smart home control
4 x M3 mounting holes for easy fixing via standoffs
Specifications
15-20mA drive current needed per channel
Relay coil maximum operating voltage: 5V
Relay coil maximum current: 89.3mA
Relay contact maximum: AC250V at 10A or DC30V at 10A
No. of relays/channels: 4
Item size: 75 x 55 x 20mm
Item weight: 89g
Package includes
1 x 4 Channel Relay Module
Warning
Exercise proper caution when connecting mains driven equipment or appliances to relay module as lethal current will be present.
