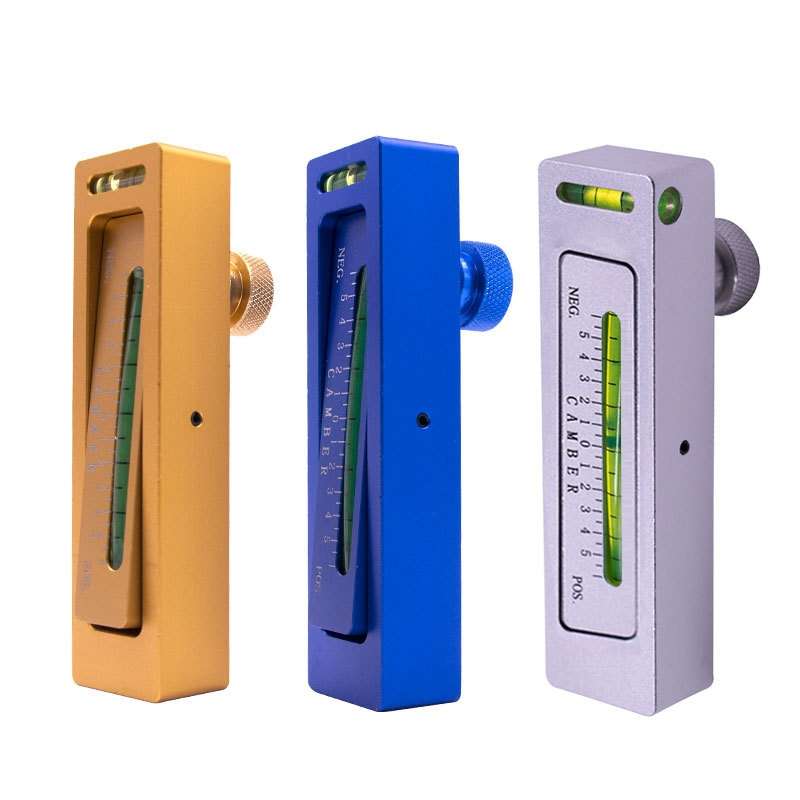

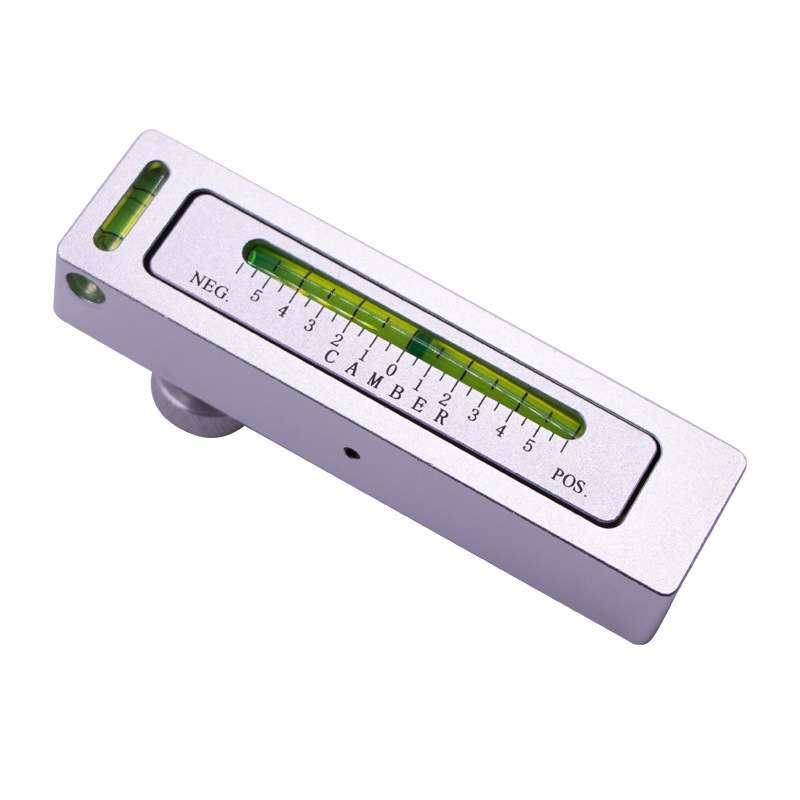

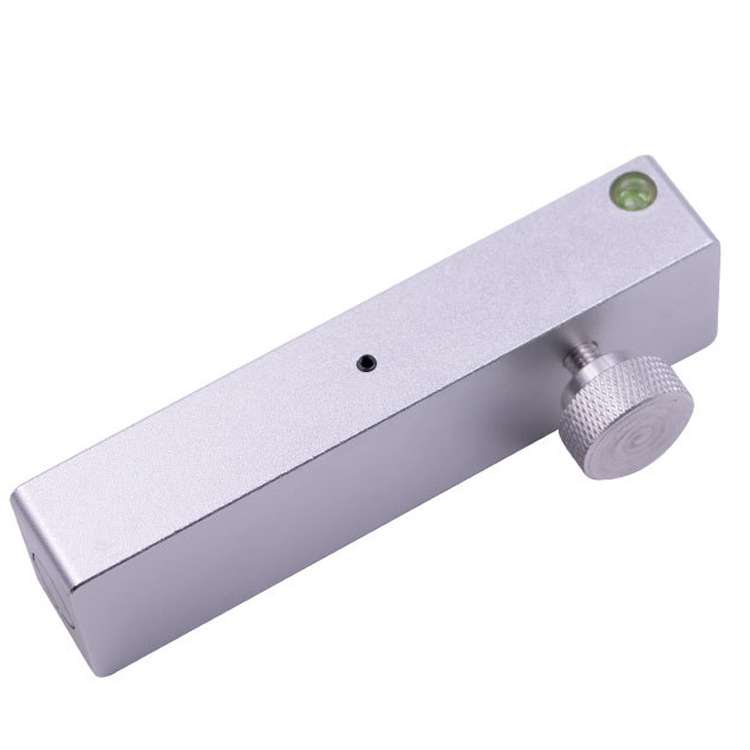

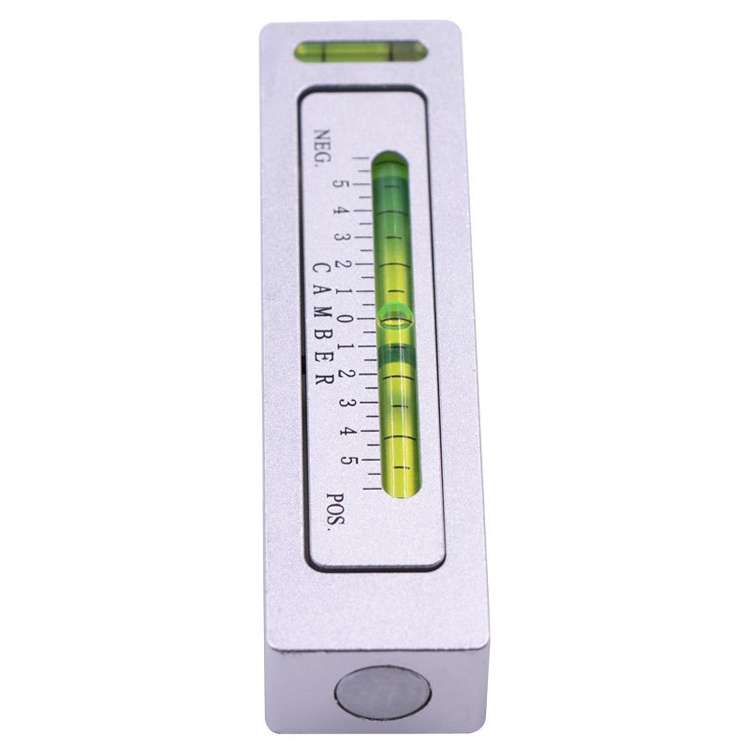

Four-Wheel Alignment Magnetic Level Tire Camber Adjustment And Correction Tool(White)

TBD0595713701A

1. Material: aluminum
2. Purpose: magnetic level
3. With magnetic, easy to use
4. Double blister design, higher precision
5. Size: about 11.5x3.1x2 cm
6. Weight: about 162 grams

Instructions:
1. Detect with a locator to determine that the camber angle needs to be adjusted
2. Remove the four-wheel alignment sensor (fixture), and remove the tire

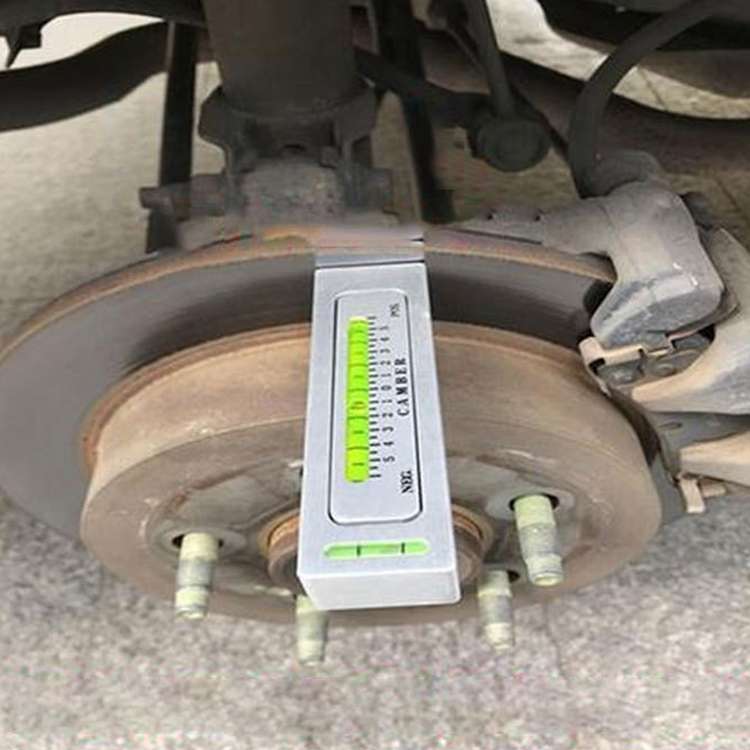

3. Attach the magnetic level carefully to the side of the brake wheel
4. Adjust the level to the zero position
5. Install the required special parts for positioning
6. Use special tools to adjust the positioning parts to the required measurement angle with the help of the degree indication of the magnetic level
7. If there is a slight deviation in re-testing with the locator, just fine-tune it under the car
