Description:
This charger is design for 12V and 24V batteries, either it can charge the TRUCK battery
or other automotive batteries like car, golf cart, motorcycle, lawn mower, boat, RV, SUV, ATV and more.

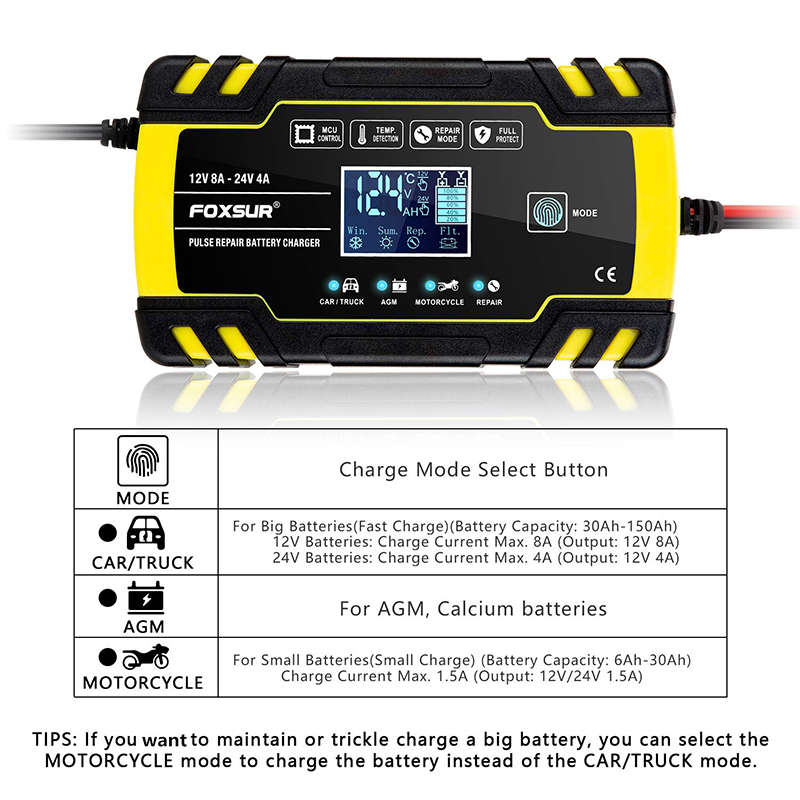

It has 3 modes, 'CAR/TRUCK' mode, 'Motorcycle' mode and 'AGM' mode; it is easy to operate and select a suitable mode for your batteries.
Featurs:
Microprocessor Control (CPU)
3-STAGE AUTOMATIC CHARGING:
This is a fully automatic battery charger with 3 charge stages.
Automatic charging protects your battery from being overcharged. So you can leave the charger connected to the battery indefinitely.
3-stage chargers are suitable for most battery types including Calcium, Gel and AGM, Wet batteries. They may also help restore drained and sulphated batteries.
Battery Type: Fit all type of 12V and 24V AGM, GEL, Flooded(Wet), Calcium type deep cycle, VRLA maintenance free lead acid batteries.
Specifications
Types of batteries: Most types of lead acid batteries including Calcium, GEL and AGM, Wet, EFB, etc..
Switch mode technology: Yes

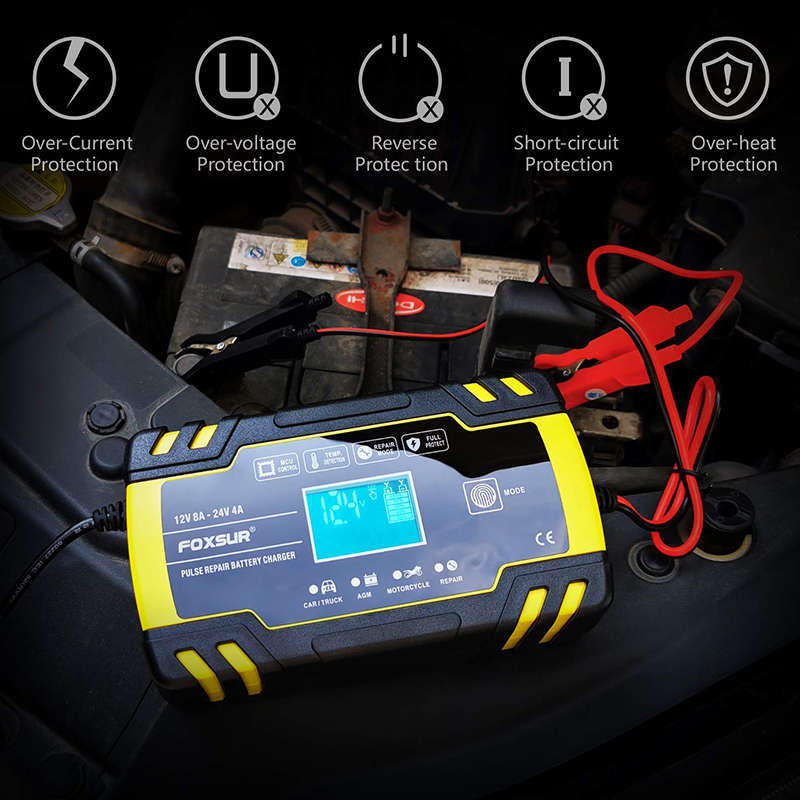

Polarity protection: Yes
Output short protection: Yes
Non battery link protection: Yes
Over voltage protection: Yes
Over temperature protection: Yes
Cooling: Fan
Thermal protect: 65'C+/-5'C
Efficiency: App. 85%
Technical Parameters:
Battery Capacity: 6Ah - 150Ah
AC Input: 100-240V 50/60Hz
Output Voltage: 12V/24V
Output Current: 24V 4Amp & 24V 1.5Amp & 12V 8Amp & 12V 1.5Amp
Output Volt Not Load: 13.8V
Minimum Start Volt: >2V
Input Power with Load: Max. 130W
Input Power No Load: 3.2W
Size: 170*98*58mm(6.7*3.9*2.3in)
Note:
1. The repair function can not activate a dead battery or repair a battery which is damaged seriously;
it also can not repair a battery back to 100% new.
2. If you want to maintain or trickle charge a big battery,
you can select the MOTORCYCLE mode to charge the battery instead of the CAR/TRUCK mode.
Package Included:
1 X Battery Charger
