PECS
GENERAL
Chipset Type Intel 945GC Express / Intel ICH7
Compatible Processors Pentium 4, Celeron D, Pentium D, Core 2 Duo, Pentium Dual Core, Celeron 400 sequence

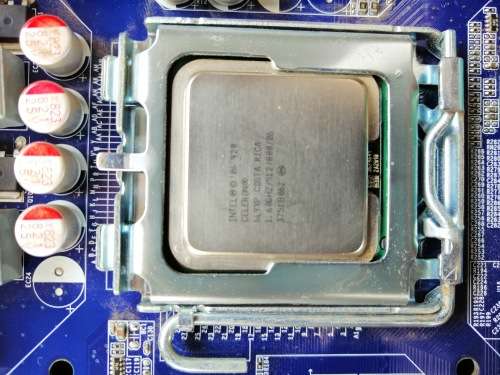

Processor Socket LGA775 Socket
Max Bus Speed 1333 MHz
Max Processors Qty 1
ManufacturerFoxconn
EXPANSION / CONNECTIVITY
Expansion Slots 1 x CPU
2 x DIMM 240-pin
1 x PCIe x16
1 x PCIe x1
2 x PCI
Storage Interfaces Intel ICH7: ATA-100 -connectors: 1 x 40pin IDC - 2 devices
Intel ICH7: SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices
Internal Interfaces 1 x audio - 4 pin MPC
1 x floppy
Additional Connectors (Optional) 4 x USB 2.0
Power Connectors 4-pin ATX12V connector, 24-pin main power connector
PROCESSOR
Max Supported Qty 1
Installed Qty 0
AUDIO
Audio Codec Realtek ALC662
Compliant Standards High Definition Audio
MISCELLANEOUS
Microsoft Certifications Certified for Windows Vista
Product Type motherboard
MEMORY
Memory Allocation Technology Dynamic Video Memory Technology 3.0
PROCESSOR / MEMORY / STORAGE
Max Supported Qty 1
CACHE MEMORY
Type none
INTERFACE PROVIDED
Qty 1, 4
Type LAN, PS/2 keyboard, PS/2 mouse, USB 2.0, VGA, audio line-out, audio line-out (center/subwoofer)/microphone, audio line-out (rear)/line-in, parallel, serial
Connector Type mini-jack
NETWORKING
Data Link Protocol Ethernet, Fast Ethernet
Network Controller Realtek RTL8101E
Network Ethernet
VIDEO
Video Output graphics adapter
Graphics Processor Intel GMA 950
RAM
Max Supported Size 2 GB
Features dual channel memory architecture
GRAPHICS
Graphics Controller Intel GMA 950
Memory Allocation Technology Dynamic Video Memory Technology 3.0
AUDIO OUTPUT
Sound Output Mode 5.1 channel surround
Compliant Standards High Definition Audio
Type sound card
Audio Codec Realtek ALC662
Audio High Definition Audio (6-channel)
LAN
Network Interfaces Ethernet
Network Controller Realtek RTL8101E
SUPPORTED RAM
Bus Clock 667 MHz, 533 MHz, 400 MHz
Features Dual channel memory architecture
Speed PC2-5300, PC2-4300, PC2-3200
Technology DDR2
Max Size 2 GB
HEADER
Brand Foxconn
Product Line Foxconn
Model 45CMX
Packaged Quantity 1
Compatibility PC
MAINBOARD
Form Factor micro ATX
Processor Socket LGA775 Socket
Compatible Processors Celeron 400 sequence, Celeron D, Core 2 Duo, Pentium 4, Pentium D, Pentium Dual Core
Data Bus Speed 1333 MHz
Chipset Type Intel 945GC Express
I/O Controller Intel ICH7
Supported RAM Technology DDR2 SDRAM
Supported RAM Speed 400 MHz, 533 MHz, 667 MHz
Supported RAM Standard PC2-3200, PC2-4300, PC2-5300
Power Connectors 24-pin main power connector, 4-pin ATX12V connector
MAINBOARD FEATURES
BIOS Features ACPI support, DMI 2.5 support
Hardware Features chassis intrusion detection
INTERFACES
Storage ATA-100, Serial ATA-300
EXPANSION SLOTS
Total Qty 1, 2
Type CPU, DIMM 240-pin, PCI, PCIe x1, PCIe x16
DIMENSIONS & WEIGHT
Width 9.6 in
Depth 8 in
SOFTWARE
Software Included Adobe Acrobat Reader, drivers & utilities
VIDEO MEMORY
Memory Allocation Technology Dynamic Video Memory Technology 3.0
STORAGE INTERFACES
Chip Intel ICH7
Interface ATA-100, Serial ATA-300
Connector(s) 1 x 40pin IDC, 4 x 7pin Serial ATA
Supported Devices Qty 2, 4
INTERNAL INTERFACES
Type audio, floppy
Connector Type 4 pin MPC
Qty 1
FEATURES
Hardware Features Chassis intrusion detection
BIOS Features ACPI support, DMI 2.5 support
GENERAL
ManufacturerFoxconn
