Features

With a low- power Intel® Atom 2C/4T integrated, the D250S are designed for a range of new market segments which focus on low-cost Internet-focused machines.  With the Intel® NM10 chipset, the D250S enable simple, affordable nettops for emerging and mature markets. They are the best choice of simple device for web browsing, with a range of connectivity options including 5.1 channel HD audio, SATAII and USB2.0 - they are fully equipped for the corporate environment.

• Cedarview-D, 2C/4T CPU D2500, low power
• Intel® NM10
• Integrated Inte® HD Graphics with VGA and HDMI
• Supports 2x SO-DIMM of DDRIII SDRAM, 1066MHz, Max 4GB
• 5.1 channel audio and GbeLan

•
  Micro-ITX platform Intel Atom, including South bridge NM10 (TigerPoint) includes integrated graphics Intel HD with improved capabilities for working with high definition video, and HDMI. Microsoft DirectX 10.1, OpenGL 3.0 and Blue Ray 2.0 Full HD-decode. 8x USB 2.0 ports and 2x SATA 3 Gb / sec.  The motherboards support up to 4GB of DDR3-1066, installed in SO-DIMM slots.

  Technical Specifications

  Processor	Cedarview-D, 2C/4T CPU D2500
  Chipset	Intel® NM10
  Memory	Supports 2x SO-DIMM of DDRIII SDRAM, 1066MHz, Max 4GB
  VGA on Die	Integrated Inte® HD Graphics with VGA and HDMI
  Expansion Slots	1x PCI slot
  IDE	N/A
  Serial ATA(SATA)/RAID	2x SATA2
  Audio	5.1 channel audio
  LAN	Gbe Lan

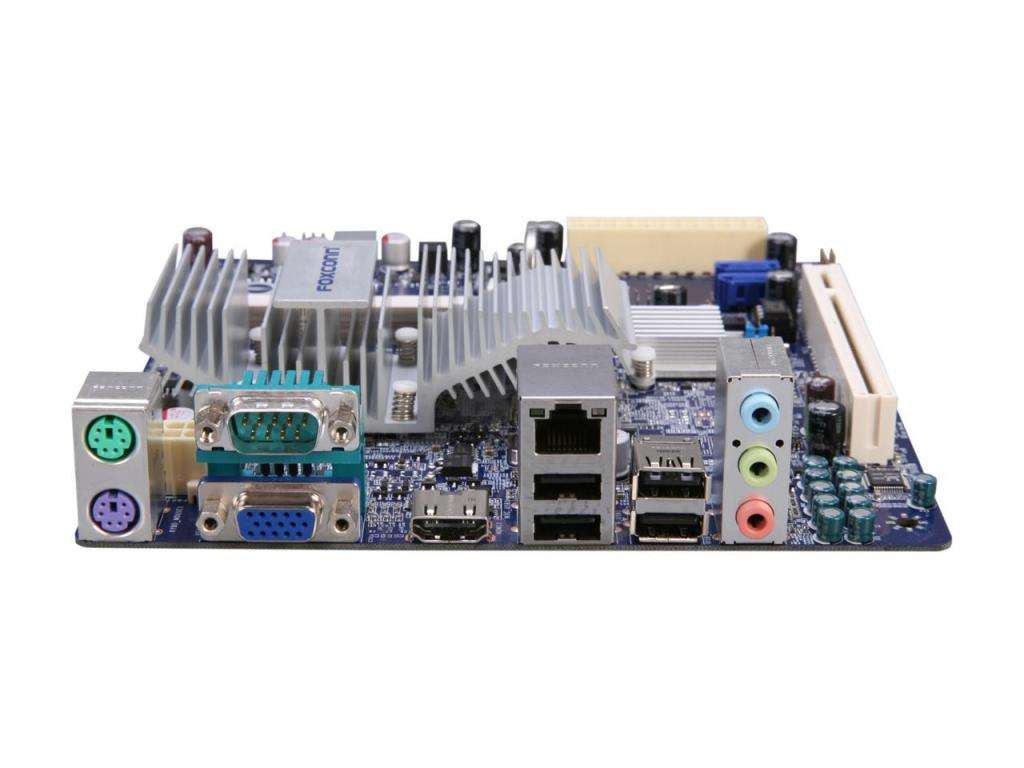

  Back Panel I/O Ports	1x PS/2 KB/MS port 1x VGA port 1x HDMI port 1x COM port 1x RJ45 LAN jack 1x Audio 3 jacks 4x USB2.0 ports
  Internal I/O Connectors	1x ATX 24-Pin power connector 1x 4-pin ATX 12V power connector 1x 4-pin CPU FAN conn 1x 4-pin system FAN conn 1X Front panel header 1x Front Audio header 1x Speaker header 2x SATAII connectors 2x USB 2.0 headers 1x Intrusion Alarm header 1x TPM header 1x IR header
  BIOS Features	8MB flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI 2.0
  Support CD	Drivers, Adobe Reader, SuperUtilities, Norton Internet Security
  Standards/Manageability	PCI 2.3, USB2.0, DMI 2.5
  Special Features	Passive cooling 10W
  Form Factor	Mini-ITX form factor 6.7x6.7 inch
