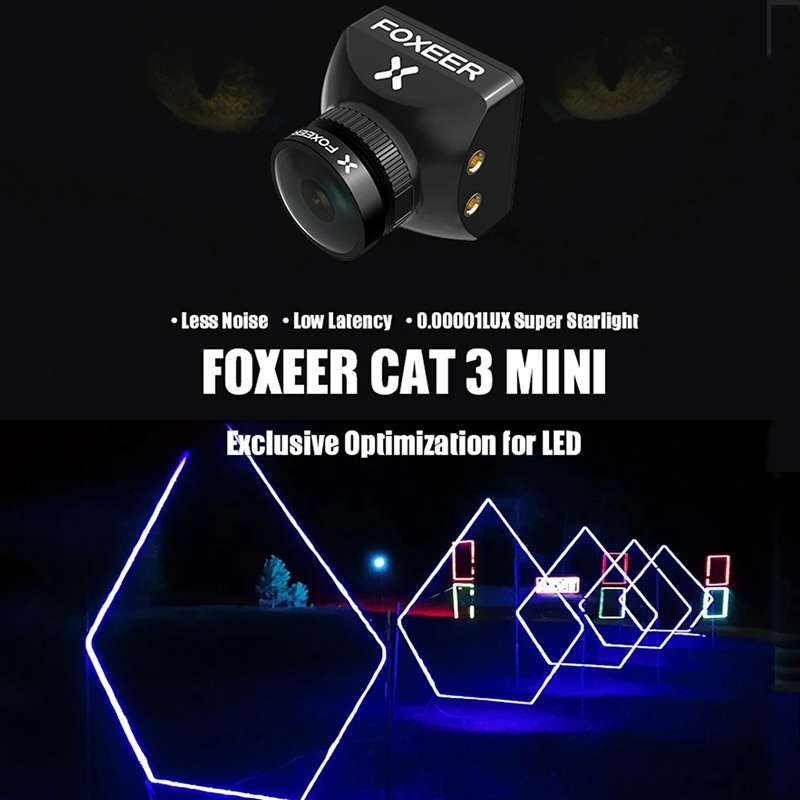

Foxeer Cat 3 Mini Red FPV Night Camera 1200TVL Starlight 0.00001Lux Camera For RC FPV Racing Drone

1. FPV night vision camera, low noise, low latency, 0.00001Lux super starlight, ratio: 4:3/16:9 switchable, TV format: PAL/ NTSC switchable
2. Mini FPV camera: Foxeer Cat 3 Micro size 19x19mm, FOXEER Cat 3 Mini size 22 x 22 mm

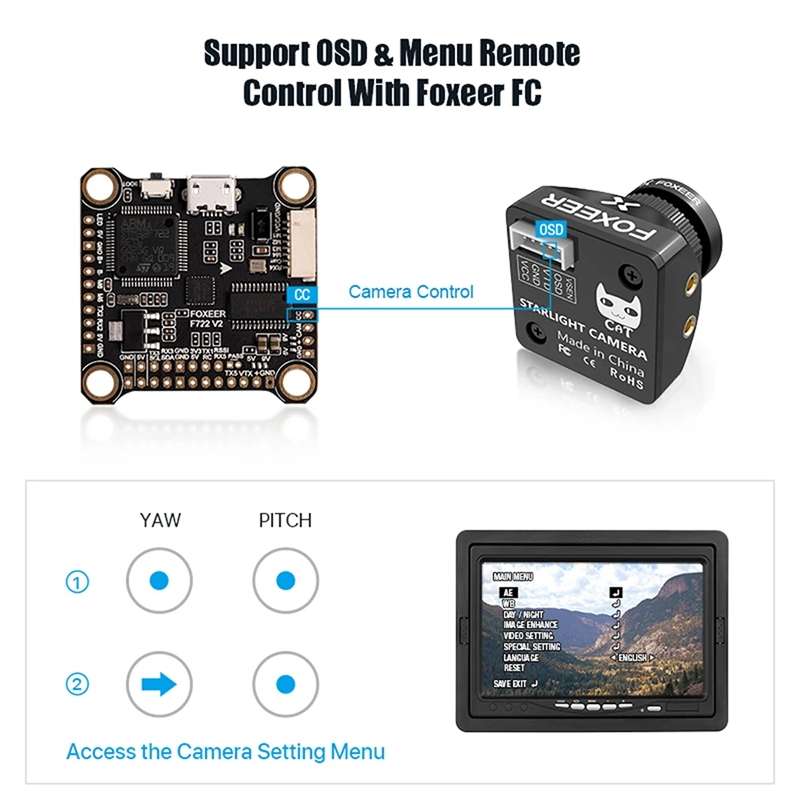

3. Support OSD and menu remote control Foxeer FC

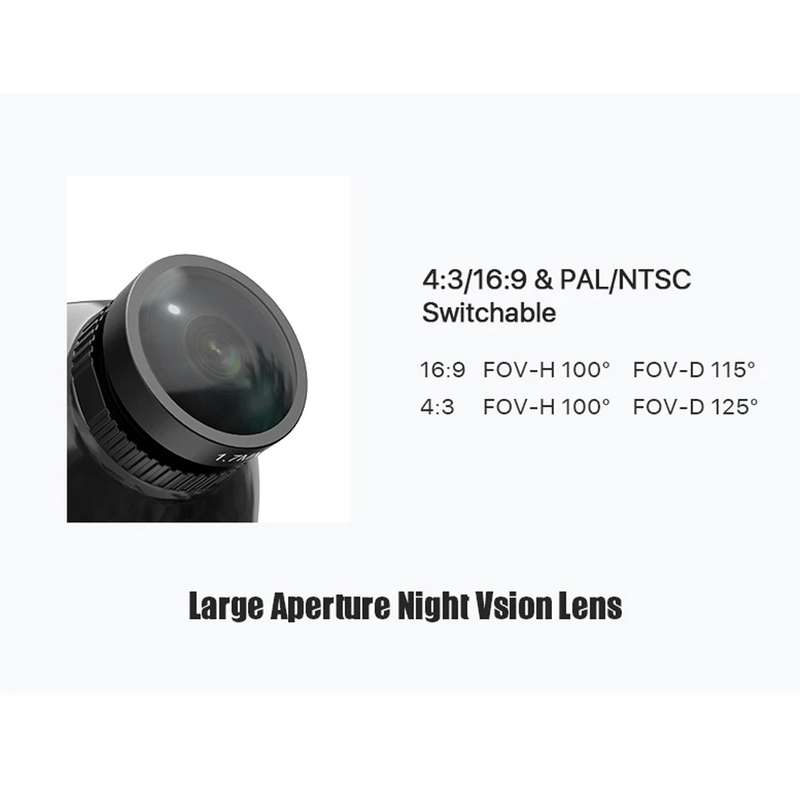

4. Large aperture night vision lens, exclusively optimized for LED

Specification:
Sensor type: CMOS 1/3
Screen ratio: 4:3/16:9 switchable
TV system: PAL/NTSC switchable
Angle: 2.1mm lens
4:3 FOV-H 100ￂﾰ FOV-D 125ￂﾰ
16:9 FOV-H 100ￂﾰ FOV-D 115ￂﾰ
Resolution: 1200TVL
Shutter speed (CCD IRIS): PAL: 1/25-1/10000 sec; NTSC: 1/30-1/10000 sec
Video output: CVBS
Low illumination: 0.00001Lux
White balance: automatic
Noise reduction: 3D noise reduction
Wide dynamic range: 100db
Day/Night: External/Auto/Color/Black and White
OSD: Voltage/Title/Time
Input voltage: DC4.6-20V
Current: 95mA+/-15%@DC12V
Language: English/Russian/Spanish/Italian/French/Polish/Portuguese/Japanese
Working temperature: -10￢ﾄﾃ-+50￢ﾄﾃ RH90% MAX
Working humidity: 20-80%
Storage temperature: -20￢ﾄﾃ-+70￢ﾄﾃ
Storage humidity: 20-95%

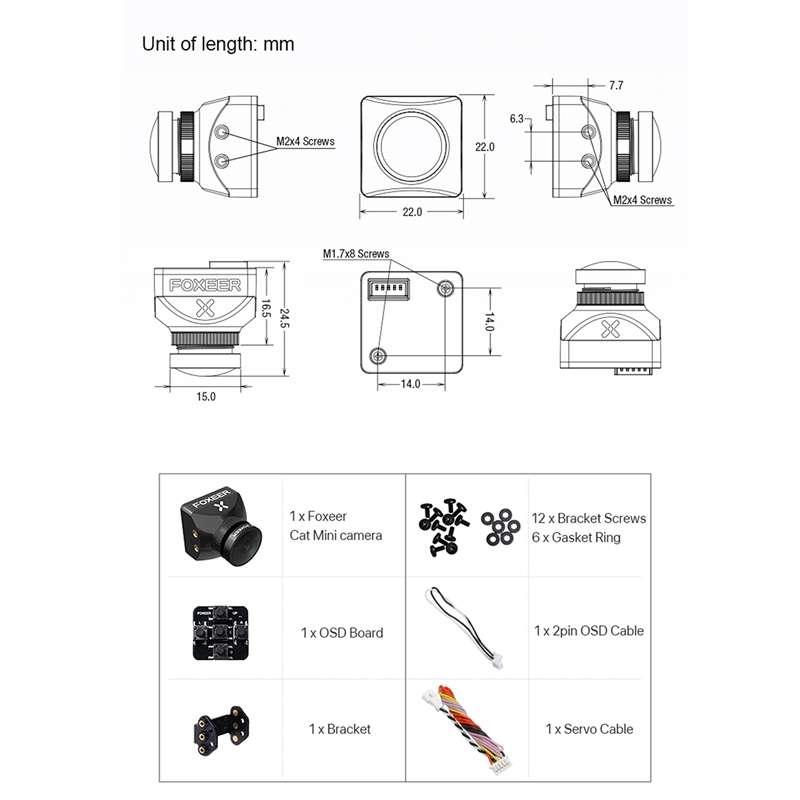

Size: Micro 19ￃﾗ19mm, Mini 22 x 22mm (including bracket)
Weight: Micro 10.7g, Mini 12.2g

Micro packaging list:
1 x Foxeer Cat 3 camera
1 x connecting cable
1 x 2pin OSD cable
1 x OSD board
screw

Mini packaging list:
1 x Foxeer Cat 3 camera
1 x stand
1 x connecting cable
1 x 2pin OSD cable
1 x OSD board
screw
