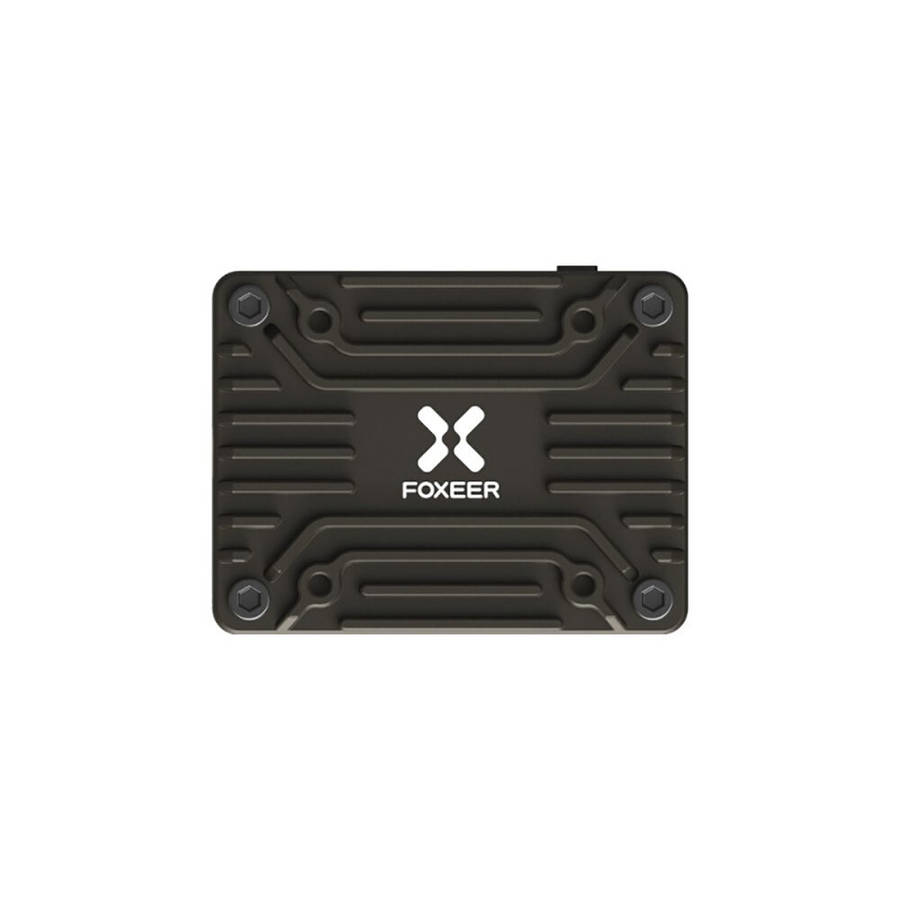

Foxeer Reaper Extreme V2 5.8GHz 72CH 2.5W FPV VTX Build-in Mic PitMode/ 25mW/ 200mW/ 500mW/ 1500mW/

Specifications:

Name: Reaper Extreme V2

Input Voltage: 9~36V

Output Voltage: 5V

Channels: 72CH

Power: 25mW/200mW/500mW/1.5W/2.5W, red light flash 1/2/3/4/5 times correspondingly

Pit: Double click to enter

Weight: 13g

Mounting Hole: 20*20mm M2 2.8mm depth

Size: 36*27.5*8mm

Consumption: 1.2A/9V

Package Included:

1 x VTX

1 x Silicon Cable

Unlock the frequencies and power levels

Long press the 'KEY' button until the Red LED (PWR) is constant on, off, then on again, release the button unlock the all frequencies and power levels, flashed Red LED means in unlocked status, constant Red LED means in locked status.

PIT Mode On/Off

Double-click the 'KEY' button to turn on/off the PIT Mode. Red LED (PWR) off means PIT mode on; Red LED (PWR) on means
