Foxwell F1000B OBDII Scanner & Battery Tester 2 in 1

WE ARE AUTHORISED DEALER OF FOXWELL AND ONLY SELL GENUINE PRODUCTS

Foxwell F1000B is a Battery Analyzer and engine OBDII Code Reader which is dedicatedly developed to test 12V regular flooded, AGM flat plate, AGM spiral and gel batteries. It provides a quick, easy and affordable solution for technicians to check battery health. What's more, it provides fast solution for OBDII faults check.

Functions:

• Tests batteries rated from 100 to 1100CCA.
• Tests multiple battery types - regular flooded, AGM flat plate, AGM spiral and gel EPB.
• Tests multiple rating systems - CCA, CA, MCA, JIS, DIN, IEC, EN, SAE.
• SOC, SOH and resistance test result display makes technicians easier and faster to judge the battery status.
• Tests the batteries on the car directly - no need to remove the battery.
• Quick starter analysis without disabling the ignition, result display in just 3 seconds.
• Does not emit light, heat or spark, or discharge battery, keeps operation safe for all levels of users.
• Works with most OBDII/EOBD compliant cars, light-duty trucks, SUVs, minivans and hybrid sold worldwide.
• Red-Yellow-Green LEDs and built-in speaker provide both visual and audible tone for readiness verification.
• Turns off Check Engine Light (MIL), clears codes and resets monitors.
• Extremely easy to use with large backlight LCD display and menu-driven operation.
• Multilingual menu and test results - English, Polish, Portuguese, Hungarian, Russian, French, German, Dutch, Spanish, Chinese, Japanese and Korean.
• Extremely easy to use with clearly arranged keypad, menu-driven navigation, and hotkeys.

Specifications:

• Display: 2.8TFT color display
• Working Temperature: 0 to 60 (32 to 140)
• Storage Temperature: -20 to 70 (-4 to 158)
• Power Supply: 8-18V vehicle power
• Supported Protocols:J1850PWM, J1850-VPW, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network ISO 11898)
• Dimensions (L*W*H): 172*97.5*32mm
• Weight: 0.6kg

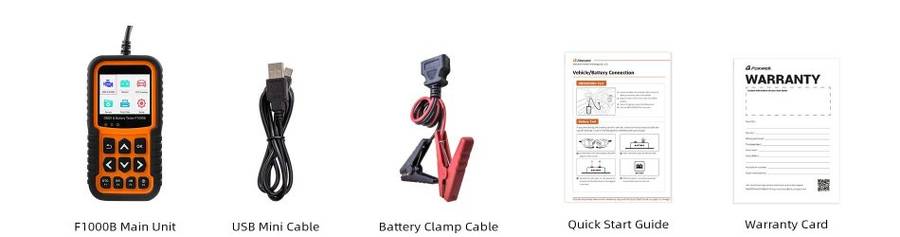

Package List:

• F1000B Main Unit.
• Battery test clip.
• Users Guide.
• USB Cable.
