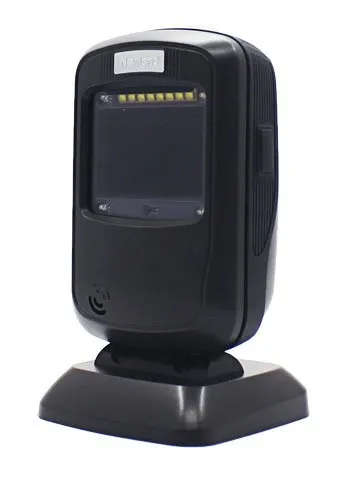

FR40 Koi II 2D CMOS Mega Pixel Omnidirectional presentation

FR40 Koi II 2D CMOS Mega Pixel Omnidirectional presentation desktop scanner with 2 mtr. USB cable.

FR40 Koi II 2D CMOS Mega Pixel Omnidirectional presentation desktop scanner with 2 mtr. USB cable.

Specifications

Newland FR40 Koi II 2D CMOS Mega Pixel Omnidirectional Presentation Desktop Scanner (FR4080-20)

Performance

Image Sensor:

280x800 CMOS

Illumination:

White LED

Depth of Field EAN 13 (13mil):

5-195mm

Depth of Field QR (15mil):

5-165mm

Minimal Print Contrast:

25%

Scan Angle Roll:

360°

Scan Angle Pitch:

±50°

Scan Angle Skew:

±45°

Field of View Horizontal:

51°

Field of View Vertical:

32°

Motion Tolerance:

2.5m/s

Data Capture:

1D-

All major 1D symbologies, including EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey.

2D-

All major 2D symbologies, including PDF417, Data Matrix, QR Code, Micro QR Code, Aztec.

Physical Dimensions (mm):

83(W)x81(D)x148(H)mm

Weight:

293g

Interfaces:

RS-232, USB

Notifications:

Beep, LED indicator

Input Voltage:

5VDC±5%

Current @ 5VDC Operating:

219mA (typical)

Power Consumption:

1041mW (typical)

Operating Temperature:

-20°C to 60°C

Storage Temperature:

-40°C to 70°C

Humidity:

5% to 95% (non-condensing)

Electro Static Discharge (ESD):

±14 kV (air discharge), ±8 kV (direct discharge)

Drop:

1.2m

IP Rating:

IP52

Software:

Configuration Tools

EasySet

Certifications:

Hardware

FCC Part15 Class B, CE EMC Class B
