Specification
Brand: DolphinRC
Model: PRISMFLY X2
Item Name: 2 Inch Aluminum Alloy Frame Kit
Frame Type: True X
Dimensions (L×W×H): 96 × 96 × 34 mm (excluding battery mount)
Wheelbase: 115 mm
Weight: 27.0 ± 1 g
Camera Mount Size: 14 mm
Camera Mounting Holes: 6 mm / 16 mm (supports DJI O4 unit)
Stack Mounting: 25.5 mm / 2 mm
VTX Mounting: 25.5 mm / 2 mm
Motor Mounting Options: 6.6 mm / 1.4 mm × 3, 9 mm / 2 mm × 4
Battery Compatibility: Gens ace 450mAh 75C, Gaoneng 660mAh 90C (parametric battery mount, downloadable and adjustable for 3D print)
Recommended Battery: 450—650mAh (3S)
Recommended Motors: 1103 / 1204
Recommended Props: 2 inch-2.2 inch (50.8 mm — 56 mm)
Key Feature:

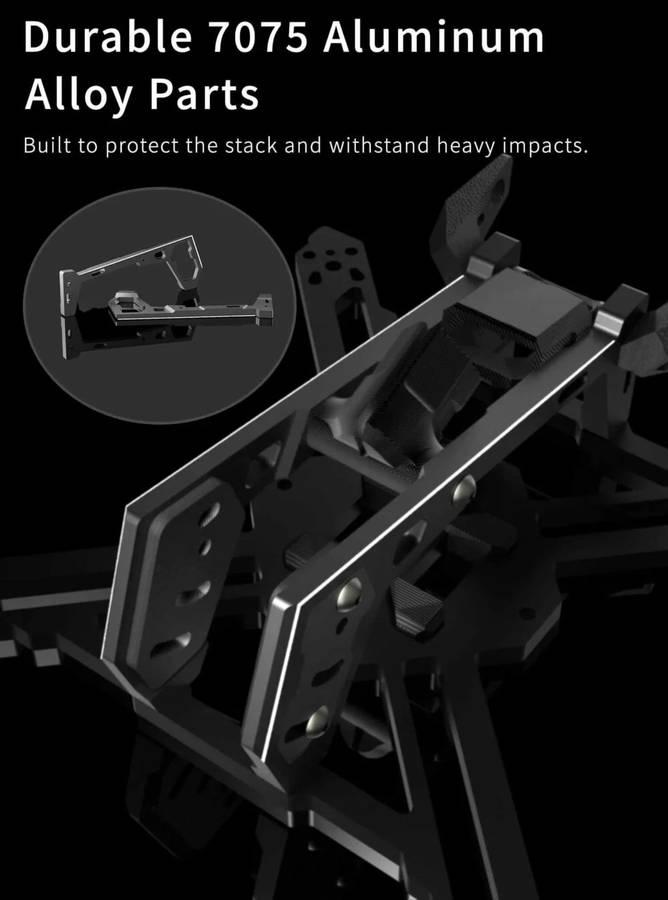

- CNC-machined 7075 aluminum alloy for superior frame protection.
- T700 carbon fiber base plate, cut along the grain for extra strength.
- Full compatibility with DJI O4 HD VTX systems — no limit on image quality.

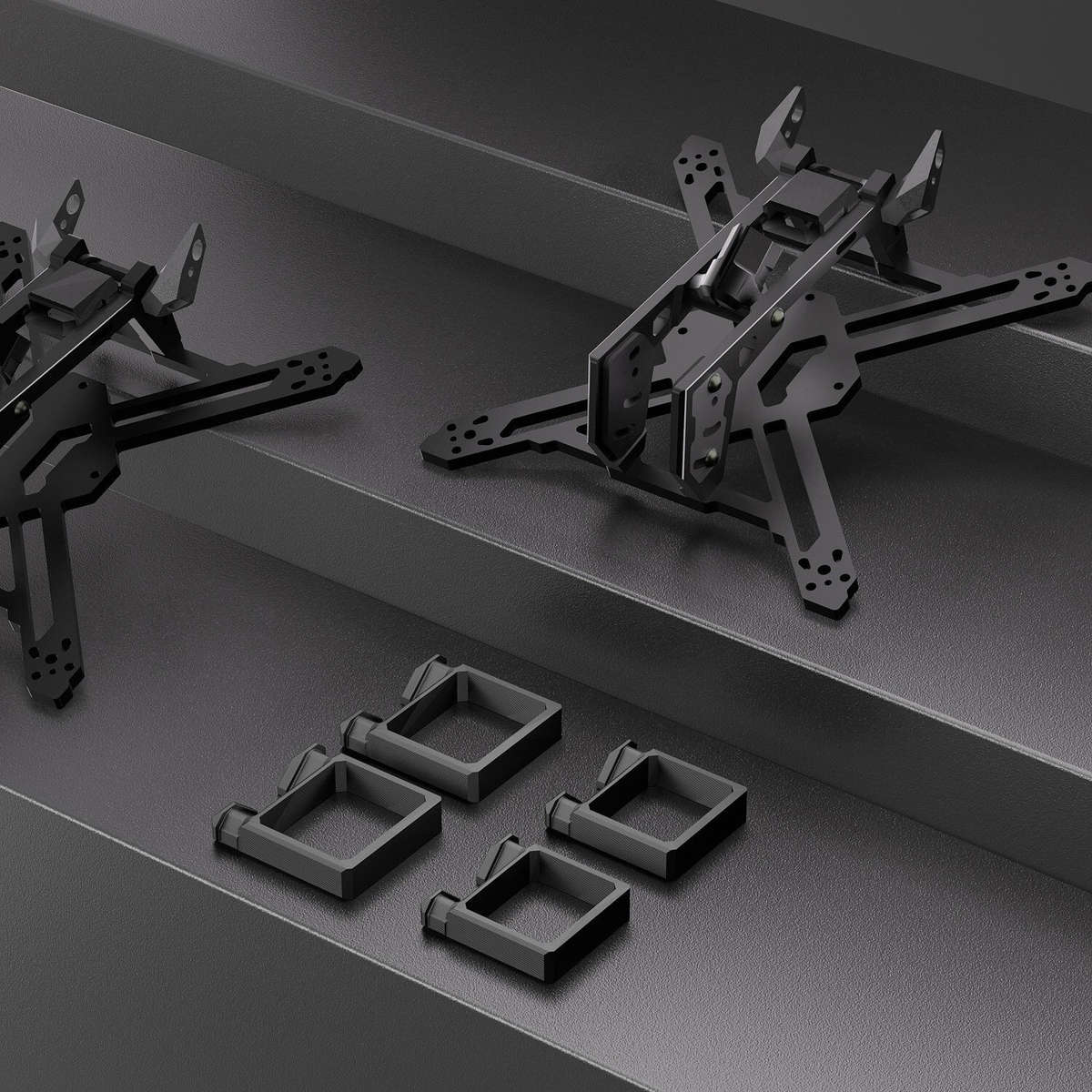

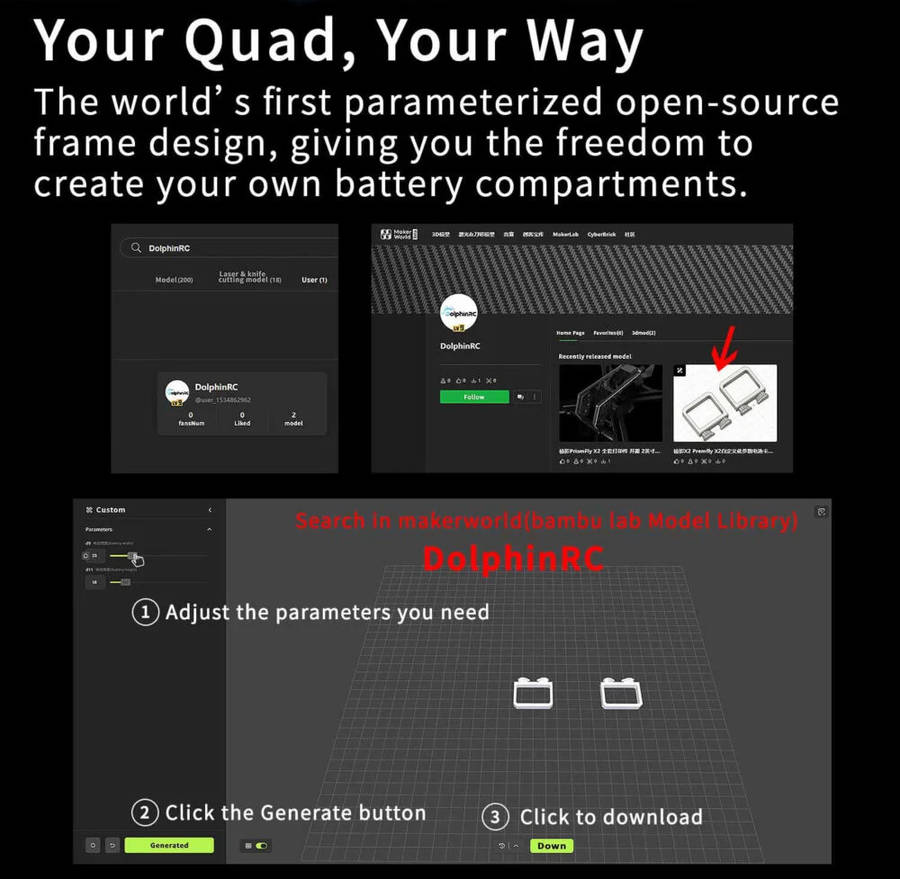

- Parametric battery mount design: customize the size and 3D print your own.
- Dual motor hole layout for maximum compatibility.
- Standard 25.5 mm AIO/FC/VTX mounting pattern.
- Independent receiver and battery compartment for easier build and clean wiring.

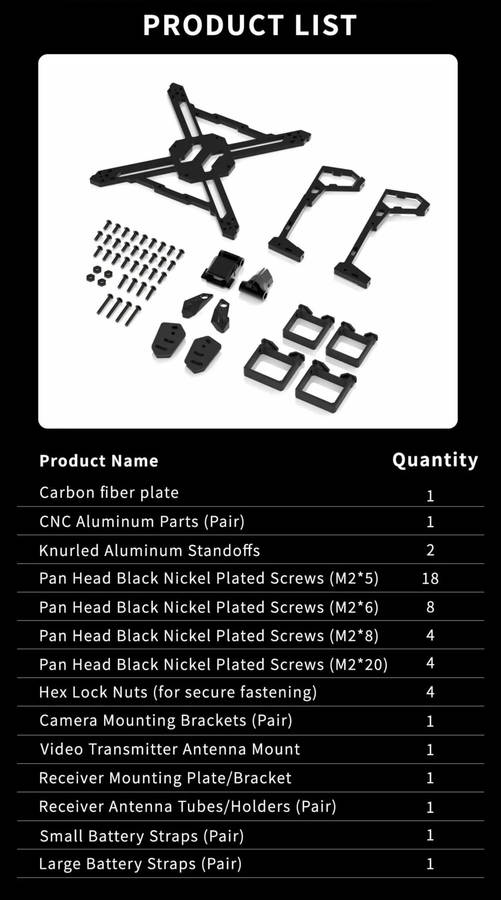

Package Included:
1 x Frame Kit
