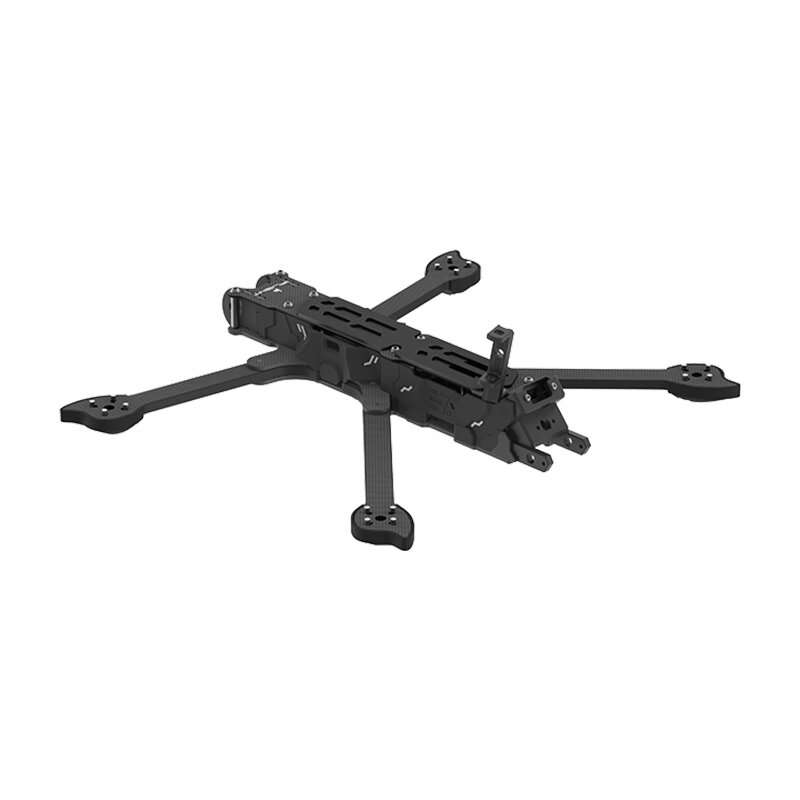

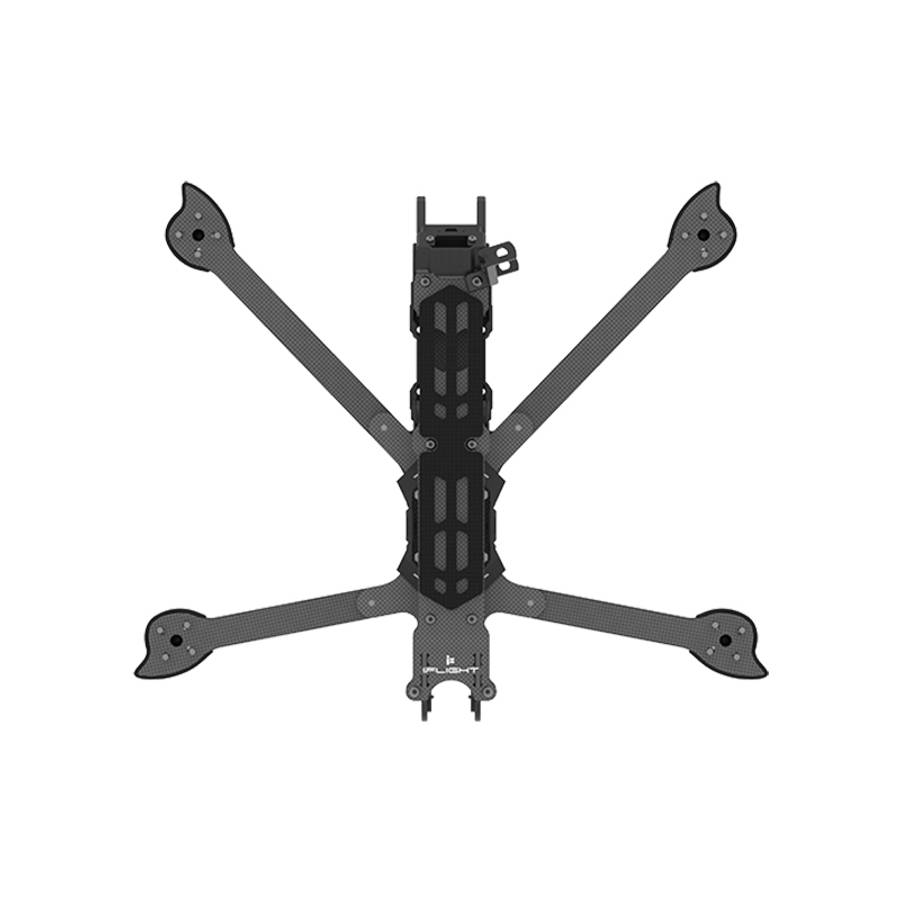

Name: Frame Kit - iFlight Chimera7 ECO 327mm Wheelbase 6mm Arm Thickness 7.5 Inch Long Range Frame Kit for
SKU: 2003132-POA10505295
Price: 2562.11 ZAR
Availability: SoldOut

Frame Kit - iFlight Chimera7 ECO 327mm Wheelbase 6mm Arm Thickness 7.5 Inch Long Range Frame Kit for

New

1 was available

Indicative market price: R3,947.05

R2,562.11

35% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

There are various locker and counter collection points across South Africa.
View locations

The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

The World OnLine10393

95.65 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

2003132-POA10505295

Bob Shop ID

672530213

Description:
The KING of Long Range FPV! A super-efficient iFlight 7.5inch Long-Range bird that can go where you couldn't go before and can carry bigger batteries to get the flight time to surf the swiss alps if you want! A super stiff frame for minimum resonance.

Specifications:
Brand: iFlight

Model: Chimera7 ECO
Product Name327mm Wheelbase Long Range Frame Kit
Wheelbase: 327mm
Frame Dimension: L270*W199*H34 mm
Frame Body Dimension: 34mm
Arm Thickness: 6mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Camera Plate Thickness: 3mm
Maximum Flight Stack Height: 21mm
Max VTX Height: 30mm
Flight Stack Mounting: 30.5x30.5mm /3mm
VTX Mounting: 30.5*30.5 3mm / 25*25 1.6mm / 20*20 2mm
Motor Mounting: 16x16mm / 19*19mm 3mm
Weight: 357g

Recommend Parts ( Not Included)

FC & ESC: 30.5x30.5mm iFlight BLITZ ATF435 FC & E55S 55A BL_S 4IN1 ESC Stack

Brushless Motor: iFlight XING-E 2809 800KV 1250KV 24V Cinelifter Motor

Propeller: GEMFAN CINELIFTER 7.5 Inch 7535 Tri-blade Propeller

Analog VTX: iFlight BLITZ 5.8GHz PIT/25mW/400mW/1000mW/2500mW MMCX VTX

Lipo Battery: iFlight Fullsend 22.2V 8000mAh 6S Li-ion Battery XT60 Plug

Packing Included:
1 x Chimera7 ECOFrame Kit
1 x TPU Set
1 x Screw Bag
1 x Anti-Slip Battery Pad
2 x Battery Strap
4 x AMASS MR30 Plugs

NOTE:
The vertical antenna mount will be in the box when shipped and needs to be installed by the customer.
